V10 DH S
Build Kit & Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
|
Material |
|
|
Features |
|
|
Frame |
|
|
Travel |
|
|
Weight |
|
|
Wheel Size |
|
| Suspension | |
|
Fork |
|
|
Shock |
|
|
Remote |
|
| Drivetrain | |
|
Bottom Bracket |
|
|
Cassette |
|
|
Chain |
|
|
Chainguide |
|
|
Crank Length |
|
|
Crankset |
|
|
Front Derailleur |
|
|
Left Shifter |
|
|
Rear Derailleur |
|
|
Right Shifter |
|
|
Shifters |
|
| Brakes | |
|
Brakes |
|
|
Front Brakes |
|
|
Front Rotor |
|
|
Rear Brakes |
|
|
Rear Rotor |
|
|
Rotors |
|
| Cockpit | |
|
Bar Width |
|
|
Dropper Length |
|
|
Grips / Bar Tape |
|
|
Handlebars |
|
|
Headset |
|
|
Saddle |
|
|
Seatpost |
|
|
Stem |
|
|
Stem Length |
|
| Wheels | |
|
Front Rim |
|
|
Front Hub |
|
|
Front Tire |
|
|
Rear Rim |
|
|
Rear Hub |
|
|
Rear Tire |
|
|
Valves |
|
|
Rims |
|
| Ebike | |
|
Battery |
|
|
Drive Unit |
|
|
Battery Charger |
|
|
Range Extender |
|
| Specs | |
|
Bottom Bracket Shell |
|
|
Rear Brake Mount |
|
|
Chainguide_standard |
|
|
Chainline |
|
|
Derailleur Hanger |
|
|
Shock Length |
|
|
Fork Axle to Crown |
|
|
Fork Compatibility |
|
|
Fork Offset |
|
|
Front Derailleur Mount |
|
|
Headset |
|
|
Max Chainring Size |
|
|
Max Rotor Size |
|
|
Max Tire Clearance May vary according to tire and rim model |
|
|
Front Spacing |
|
|
Rear Spacing |
|
|
Rear Travel |
|
|
Recommended Sag |
|
|
Sealant |
|
|
Seat Clamp Diameter |
|
|
Seat Post Diameter |
|
|
Shock Bushing Size Front |
|
|
Shock Bushing Size Rear |
|
|
Shock Mounting Hardware Lower |
|
|
Shock Mounting Hardware Upper |
|
|
Shock Stroke |
|
|
Suspension System |
|
|
UDH Compatible |
|
|
Water Bottle Mounts |
V10 DH S
Sizing & Geometry
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
| s | m | l | xl(29) | |
|---|---|---|---|---|
| Reach short mid long | 412-420-428 | 447-455-463 | 467-475-483 | 492-500-508 |
| Stack | 624 | 633 | 637 | 642 |
| Head tube angle | 63 | 63 | 63 | 63 |
| Head Tube Length | 100 | 110 | 115 | 120 |
| Rear Center (Long/Mid/Short) | 440-445-450 | 445-450-455 | 450-455-460 | 455-460-465 |
| Front Center | 785 | 825 | 847 | 874 |
| BB Height | 356 | 356 | 356 | 356 |
| BB Drop Front | 17 | 17 | 17 | 17 |
| BB Drop Rear | -1 | -1 | -1 | 17 |
| Wheelbase | 1230 | 1275 | 1302 | 1334 |
| Seat Tube Length | 435 | 445 | 455 | 465 |
| Seat Tube Angle | 77.9 | 77.4 | 77.3 | 77 |
| Standover Height | 729 | 730 | 731 | 731 |
| s | m | l | xl | |
|---|---|---|---|---|
| Reach short mid long | 411-419-427 | 446-454-462 | 466-474-482 | 491-499-507 |
| Stack | 625 | 634 | 638 | 643 |
| Head tube angle | 62.9 | 62.9 | 62.9 | 62.9 |
| Head Tube Length | 100 | 110 | 115 | 120 |
| Rear Center (Long/Mid/Short) | 440-445-451 | 446-451-456 | 451-456-461 | 456-461-466 |
| Front Center | 785 | 825 | 847 | 874 |
| BB Height | 353 | 353 | 353 | 353 |
| BB Drop Front | 19 | 19 | 19 | 19 |
| BB Drop Rear | 1 | 1 | 1 | 19 |
| Wheelbase | 1231 | 1275 | 1303 | 1335 |
| Seat Tube Length | 435 | 445 | 455 | 465 |
| Seat Tube Angle | 77.8 | 77.3 | 77.2 | 76.9 |
| Standover Height | 726 | 728 | 729 | 729 |
| s | m | l | xl | |
|---|---|---|---|---|
| Reach short mid long | 409-417-425 | 444-452-460 | 464-472-480 | 489-497-505 |
| Stack | 626 | 635 | 639 | 644 |
| Head tube angle | 62.7 | 62.7 | 62.7 | 62.7 |
| Head Tube Length | 100 | 110 | 115 | 120 |
| Rear Center (Long/Mid/Short) | 440-445-452 | 446-451-456 | 451-456-461 | 456-461-466 |
| Front Center | 785 | 825 | 847 | 874 |
| BB Height | 351 | 351 | 351 | 351 |
| BB Drop Front | 21 | 21 | 21 | 21 |
| BB Drop Rear | 3 | 3 | 3 | 21 |
| Wheelbase | 1231 | 1276 | 1303 | 1335 |
| Seat Tube Length | 435 | 445 | 455 | 465 |
| Seat Tube Angle | 77.6 | 77.1 | 77 | 76.7 |
| Standover Height | 724 | 726 | 726 | 726 |
V10 DH S
Setup & Support
Whether you’re the proud owner of a V10 or are just digging deep into the details you’ll find it all here.
| label | quantity | part_number | name | blurb | torque |
|---|---|---|---|---|---|
| A | 1 | 67-19217 | Head Tube Badge | Clean frame surface, center on headtube | |
| B | 4 | 26-23102 | M4x16 BHCS | Apply grease to threads | 0.65 Nm |
| C | 1 | 30-25026 | Fork Bumper DS | ||
| D | 1 | 30-25025 | Fork Bumper NDS | ||
| E | 1 | 30-22560 | Shuttle Guard | ||
| F | 4 | 26-18382 | M4x12 BHCS | Apply grease to treads | 0.65 Nm |
| G | 1 | 30-20093 | DT Protector | ||
| H | 1 | 30-25335 | Rear Fender | ||
| I | 4 | 26-15939 | M3x12 BHCS | Apply Loctite 242 to threads | 0.1 Nm |
| J | 1 | 34-20201 | 36.4 Seat Collar |
| label | quantity | part_number | name | blurb | torque |
|---|---|---|---|---|---|
| A | 1 | 26-29286 | RAHS Upper Offset | Apply grease at frame interface | |
| B | 1 | 26-29288 | RAHS Upper Neutral | Apply grease at frame interface | |
| C | 1 | 26-29285 | RAHS Lower Offset | Apply grease at frame interface | |
| D | 1 | 26-29287 | RAHS Lower Neutral | Apply grease at frame interface | |
| E | 1 | 26-29298 | M4x85 SHCS | Use for size small frame | 4.5 Nm |
| F | 1 | 26-29297 | M4x95 SHCS | Use for size medium frame | 4.5 Nm |
| G | 1 | 26-29296 | M4x100 SHCS | Use for size large frame | 4.5 Nm |
| H | 1 | 26-29295 | M4x105 SHCS | Use for size xlarge frame | 4.5 Nm |
| label | quantity | part_number | name | blurb | torque |
|---|---|---|---|---|---|
| A | 1 | 26-21231 | M8x50 Shock Bolt | Apply loctite 242 to threads | 22 Nm |
| B | 4 | 26-27009 | M8x22 Lowhead SHCS | Apply Loctite 242 to threads | 16 Nm |
| C | 4 | 26-12682 | V10 Outer Bearing Washer | Apply grease to inner surface | |
| D | 1 | 26-22461 | M8x45 Shock Bolt | Apply Loctite 242 to threads | 20 Nm |
| E | 1 | 26-27123 | Flip Chip Neutral DS | Apply grease to surface | |
| F | 1 | 26-17065 | Flip Chip Offset NDS | Apply grease to surface | |
| G | 1 | 26-17064 | Flip Chip Offset DS | Apply grease to surface | |
| H | 1 | 26-27122 | Flip Chip Neutral NDS | Apply grease to surface | |
| I | 1 | 08-16291 | Pivot axle M15x68.5 | Apply Loctite 242 to threads only, apply grease to shaft only | 20 Nm |
| J | 2 | 26-15633 | M6 Tapered Washer | Apply grease to surface | |
| K | 2 | 26-11817 | M6 Washer | ||
| L | 2 | 26-15947 | M6x20 SHCS | Apply Loctite 242 to threads | 9 Nm |
| M | 1 | 08-20879 | Pivot Axle M15x72 | Apply Loctite 242 to threads only, apply grease to shaft only | 20 Nm |
| N | 1 | 26-25329 | Cable loop FT NDS | ||
| O | 1 | 26-25331 | Cable loop SA NDS | ||
| P | 3 | 26-15939 | M3x12 BHCS | Apply Loctite 242 to threads | 0.1 Nm |
| label | quantity | part_number | name | blurb | torque |
|---|---|---|---|---|---|
| A | 1 | 30-26670 | CS Protector | ||
| B | 1 | 26-15634 | RD Hanger Bolt | Apply Loctite 242 to threads | 12 Nm |
| C | 1 | 23-20089 | V10 RD Hanger Short | ||
| D | 1 | 23-24890 | V10 RD Hanger Neutral | ||
| E | 1 | 23-20090 | V10 RD Hanger Long | ||
| F | 1 | 26-11927 | M4x4 Set Screw | Apply Loctite 242 to threads | 1 Nm |
| G | 1 | 26-20087 | V10 NDS DO chip offset | ||
| H | 1 | 23-24889 | V10 NDS DO Chip Neutral | ||
| I | 1 | 08-24951 | V10 Rear axle 12x182 | Apply grease to shaft and threads | 12-15 Nm |
| J | 1 | 26-24963 | V10 Brake adapter 200 | ||
| K | 1 | 26-24962 | V10 Brake adapter 220 | ||
| L | 2 | 26-15947 | M6x20 SHCS | Apply Loctite 242 to threads | 9 Nm |
| M | 2 | 26-11817 | M6 Washer | ||
| N | 1 | 26-25330 | Cable loop FT DS | ||
| O | 1 | 26-25332 | Cable loop SA DS | ||
| P | 4 | 26-15939 | M3x12 BHCS | Apply Loctite 242 to threads | 0.1 Nm |
| Q | 1 | 30-21453 | Seatstay Protector |
| label | quantity | part_number | name | blurb |
|---|---|---|---|---|
| A | 1 | 29-26982 | Upper Link | |
| B | 4 | 11-12681 | 6900-2RS Bearing | |
| C | 4 | 26-15533 | M10x3 Washer | Apply grease to inner surface |
| label | quantity | part_number | name | blurb | torque |
|---|---|---|---|---|---|
| A | 1 | 29-26981 | Lower Link | ||
| B | 4 | 11-17708 | 6902-1ZR Bearing | ||
| C | 4 | 26-11612 | Bearing Dust Shield | Apply grease to inner surface | |
| D | 1 | 26-19126 | 15x28 Bearing spacer | ||
| E | 1 | 26-20880 | 15x32 Bearing Spacer | Apply grease to inner surface | |
| F | 1 | 26-15532 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | 0.5 Nm |
| G | 1 | 26-12678 | M6 Grease Fitting | 9 Nm |
V10 DH S
Get access to the exclusive SCB Owners Club which gives you access to added levels of rider support, treats, opportunities and benefits. Join the club today for free! It takes just five minutes to receive a lifetime of membership perks.
Learn MoreWe build Santa Cruz bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.
Santa Cruz Bicycles offers free replacement pivot bearings to the original owner for as long as they own their bike.

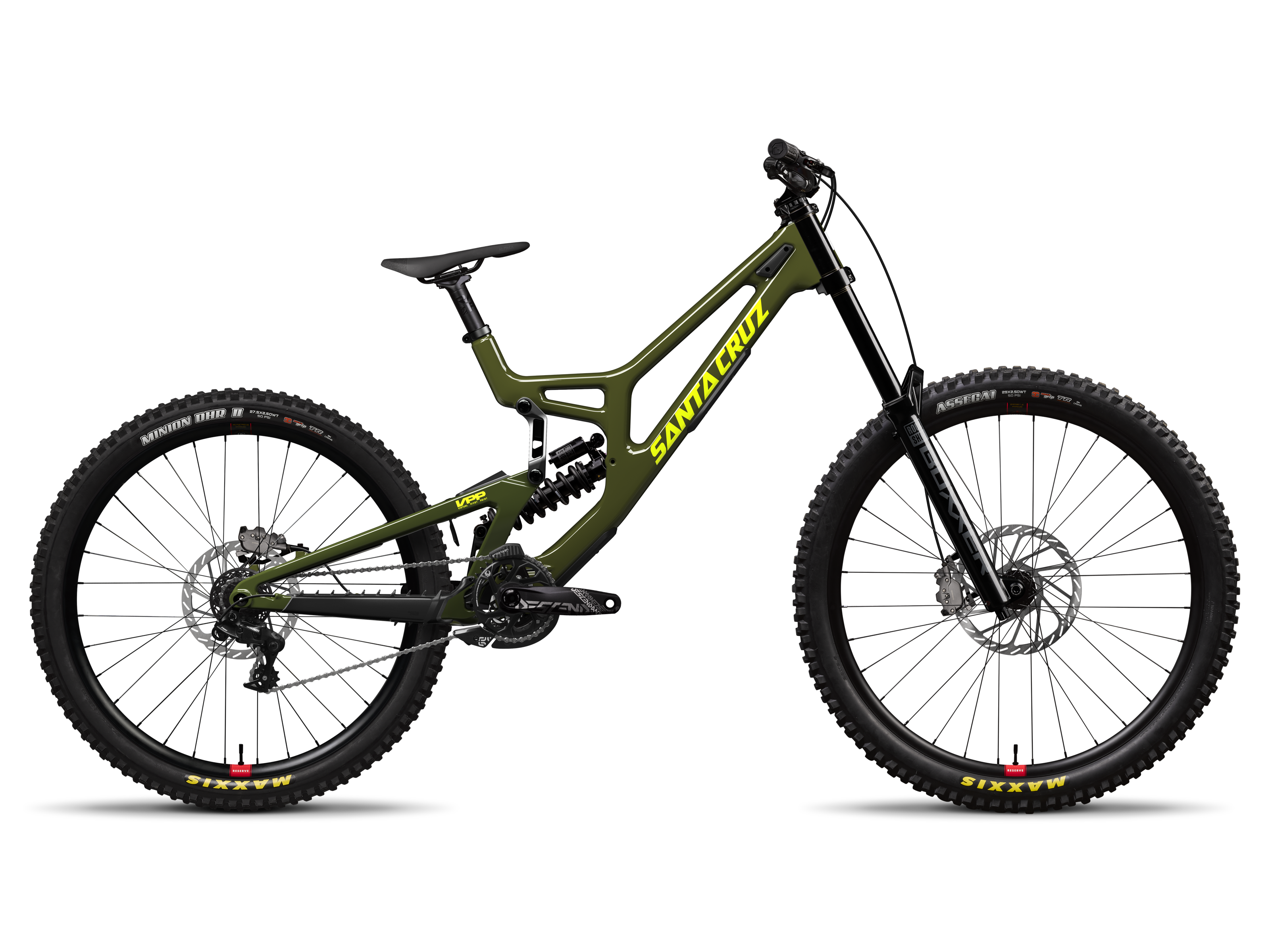

The V10 is the same bike ridden by the Syndicate to World Cup victories. Fully refined, not redefined, the new V10 is for riders looking to just imitate their heroes on Sunday afternoon or find the best lines in the bike park. The kind of rider who knows there’s no replacement for a proper downhill bike. Lap after lap, day after day nothing stands up to the abuse or gives the thrills a downhill bike can. Nothing.

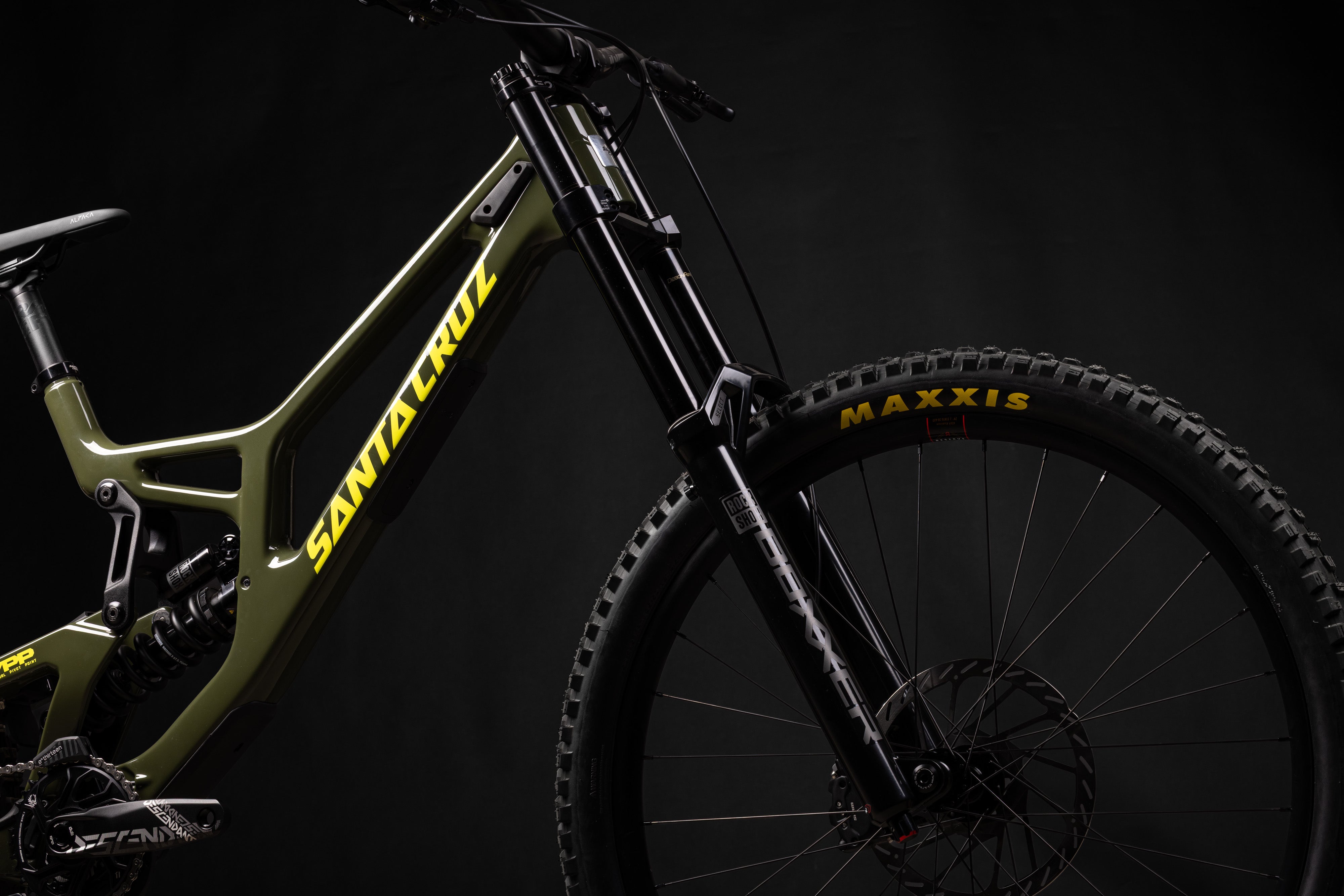

An All New BoXXer
From ButterCups to the AirAnnex, every bit of Rock Shox's new BoXXer is redesigned, improved, and more rider-friendly. The LinearXL air spring offers composure and position-sensitive performance, while adjusters with visual indicators put an end to counting clicks. Its consistent, confidence-inspiring performance is a perfect pair for the V10.
Standout Features
Explore the highlights...

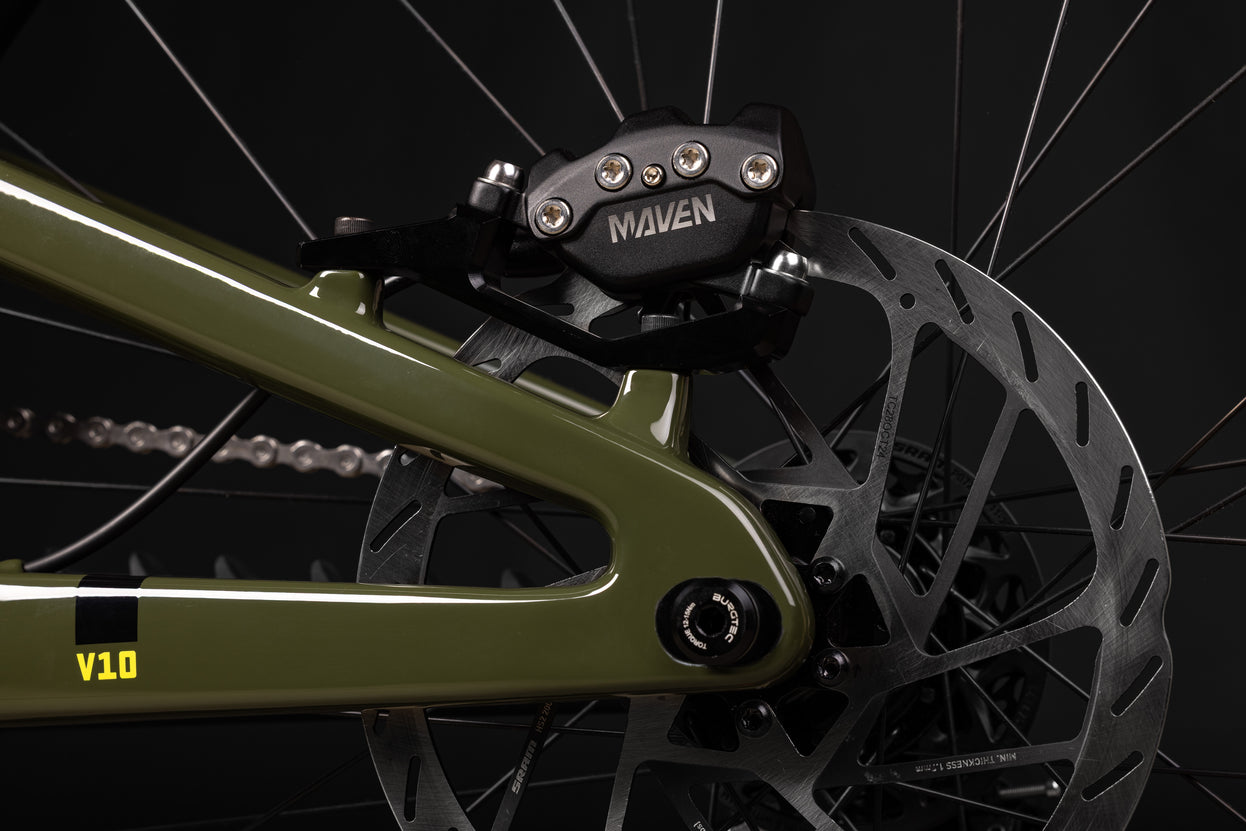

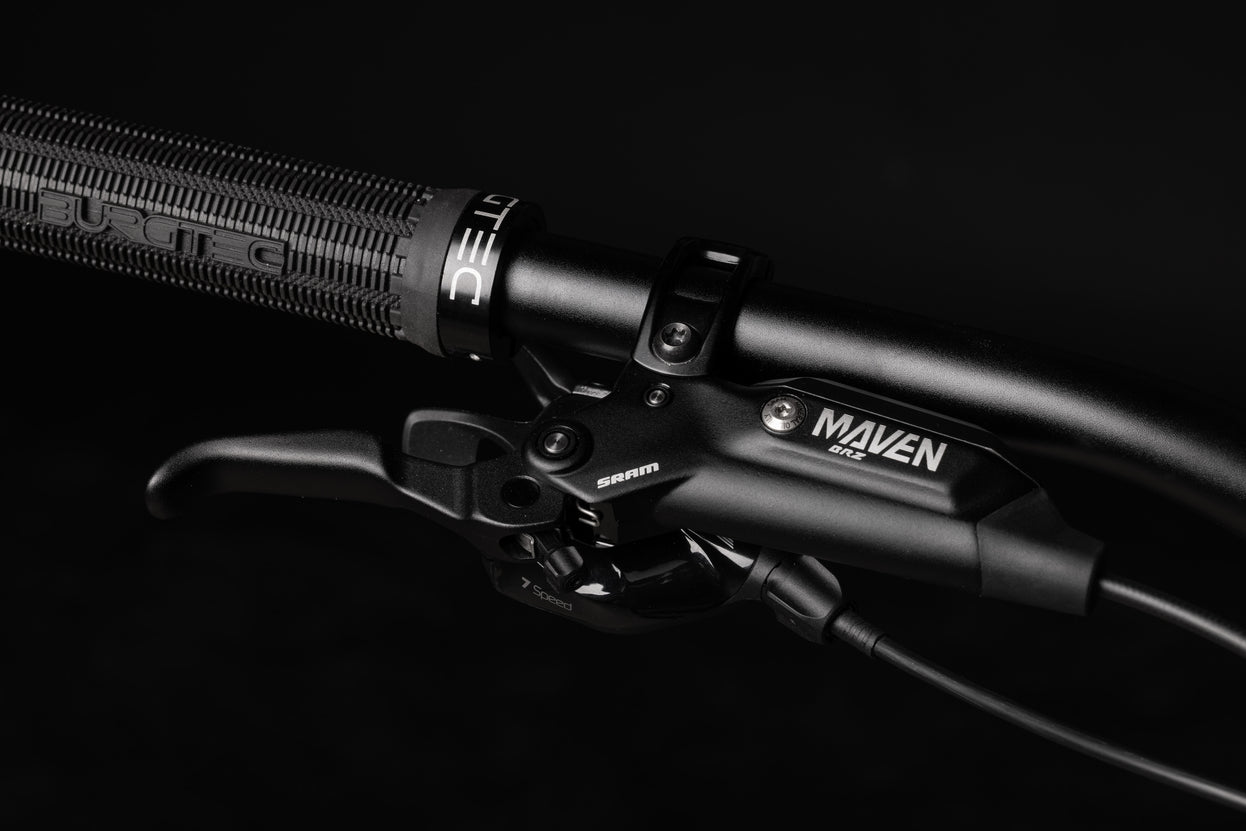

NEW SRAM Maven Brakes
CC Carbon Frame

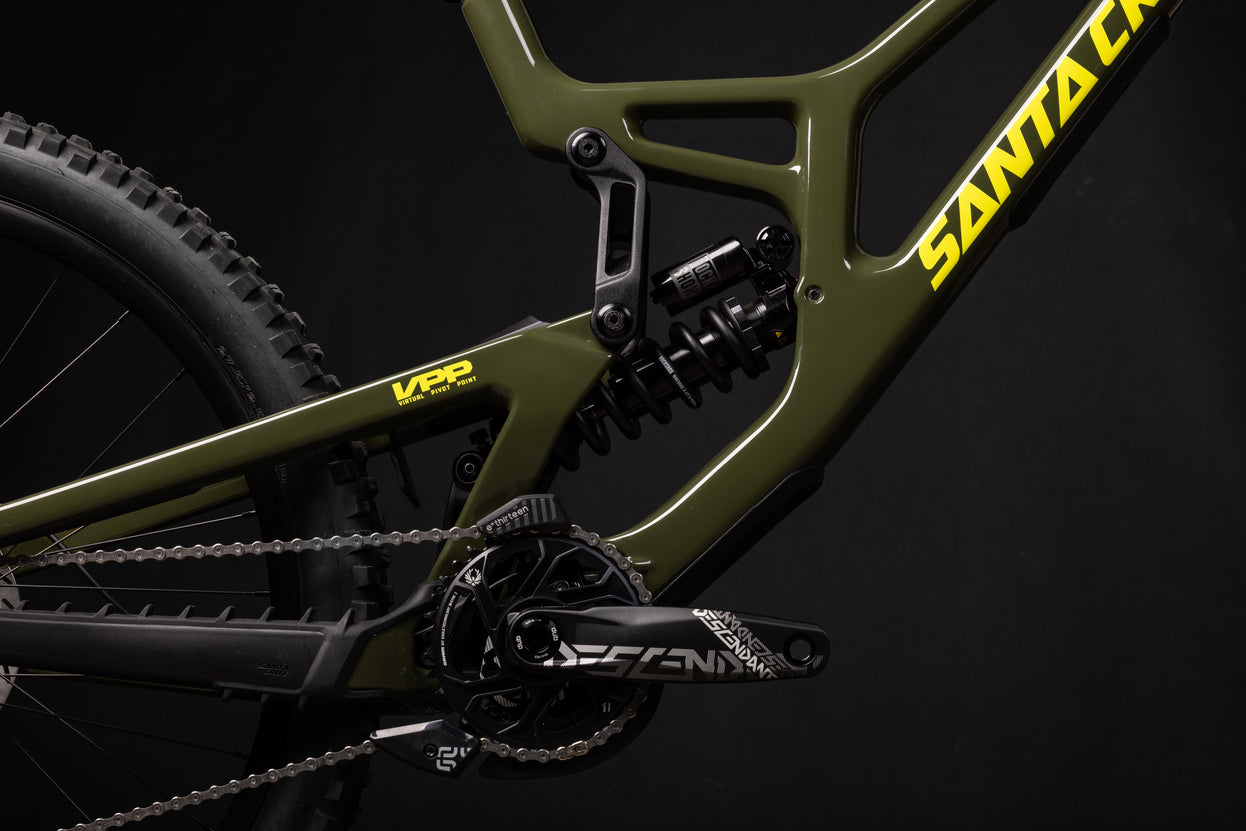

VPPâ„¢ Suspension
Lower Link Flip Chip
Reach Adjust Headset Cups
Rear Axle Flip Chip
V10 Reserve Aluminum Wheels
