Skitch GX AXS Flat Bar
Build Kit & Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
| Material | |
| Features | |
| Frame | |
| Travel | |
| Weight | |
| Wheel Size | |
| Suspension | |
| Fork | |
| Shock | |
| Remote | |
| Drivetrain | |
| Bottom Bracket | |
| Cassette | |
| Chain | |
| Chainguide | |
| Crank Length | |
| Crankset | |
| Front Derailleur | |
| Left Shifter | |
| Rear Derailleur | |
| Right Shifter | |
| Shifters | |
| Brakes | |
| Brakes | |
| Front Brakes | |
| Front Rotor | |
| Rear Brakes | |
| Rear Rotor | |
| Rotors | |
| Cockpit | |
| Bar Width | |
| Dropper Length | |
| Grips / Bar Tape | |
| Handlebars | |
| Headset | |
| Saddle | |
| Seatpost | |
| Stem | |
| Stem Length | |
| Wheels | |
| Front Rim | |
| Front Hub | |
| Front Tire | |
| Rear Rim | |
| Rear Hub | |
| Rear Tire | |
| Valves | |
| Rims | |
| Ebike | |
| Battery | |
| Drive Unit | |
| Battery Charger | |
| Specs | |
| Bottom Bracket Shell | |
| Rear Brake Mount | |
| Chainguide_standard | |
| Chainline | |
| Derailleur Hanger | |
| Shock Length | |
| Fork Axle to Crown | |
| Fork Compatibility | |
| Fork Offset | |
| Front Derailleur Mount | |
| Headset | |
| Max Chainring Size | |
| Max Rotor Size | |
| Max Tire Clearance | |
| Rear Spacing | |
| Rear Travel | |
| Recommended Sag | |
| Sealant | |
| Seat Clamp Diameter | |
| Seat Post Diameter | |
| Shock Bushing Size Front | |
| Shock Bushing Size Rear | |
| Shock Mounting Hardware Lower | |
| Shock Mounting Hardware Upper | |
| Shock Stroke | |
| Suspension System | |
| UDH Compatible | |
| Water Bottle Mounts |
Skitch GX AXS Flat Bar
Sizing & Geometry
Find your Size
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will put the front wheel further in front of you, which gives the feeling of security and conversely, it will require more significant body movements when you WANT to shift the weight-bias of the bike. Think hard about your riding style and how active/intuitive you want it to be vs stable and speedy. You'll need to work a bit harder to muscle the larger bike around.
Not all bodies at a given height are the same. If you have longer legs and a shorter torso than the average person your height, that may push you towards the smaller of the recommended sizes. If you're all torso and arms, most likely you'll want to size up.
Small
Medium
Large
X-Large
XX-Large
154cm
5'1"
-
167cm
5'6"
Reach: 390mm
162cm
5'4"
-
177cm
5'10"
Reach: 405mm
170cm
5'7"
-
182cm
6'0"
Reach: 420mm
177cm
5'10"
-
190cm
6'3"
Reach: 435mm
185cm
6'1"
-
198cm
6'6"
Reach: 450mm
All units are in millimeters or degrees.
| s | m | l | xl | xxl | |
|---|---|---|---|---|---|
| Reach | 390 | 405 | 420 | 435 | 450 |
| Stack | 563 | 579 | 596 | 610 | 630 |
| Head tube angle | 69° | 69° | 69° | 69° | 69° |
| Head Tube Length | 105 | 125 | 145 | 160 | 180 |
| Rear Center | 430 | 430 | 430 | 430 | 430 |
| Front Center | 624 | 646 | 668 | 689 | 711 |
| BB Height | 279 | 281 | 281 | 283 | 283 |
| BB Drop | 78 | 76 | 76 | 74 | 74 |
| Wheelbase | 1047 | 1070 | 1092 | 1112 | 1135 |
| Top Tube Length | 551 | 571 | 591 | 610 | 630 |
| Seat Tube Length | 455 | 485 | 515 | 545 | 575 |
| Standover Height | 728 | 753 | 778 | 804 | 830 |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
Skitch GX AXS Flat Bar
Setup & Support
Whether you’re the proud owner of a Skitch or are just digging deep into the details you’ll find it all here.
Motor Wiring Harness
| label | part_number | quantity | name | blurb |
|---|---|---|---|---|
| A | 72-24792 | 1 | Fazua Ride 60 DU Wide | |
| B | 26-27248 | 4 | Adhesive foam strip | Apply to connector |
Loading
Battery Mounting Hardware
| label | part_number | quantity | torque | name | blurb |
|---|---|---|---|---|---|
| A | 26-25295 | 4 | 1.2 Nm | M4x12 SHCS | Apply Loctite 242 to threads |
| B | 26-25136 | 1 | Fix 430 mount | ||
| C | 26-25283 | 2 | 9 Nm | M6x10 BHCS | Apply Loctite 242 to threads |
| D | 78-24791 | 1 | Fazua Energy 430 Fix | ||
| E | 26-25137 | 1 | Fix 430 mount |
Loading
Seat Collar, Fender Mounts, and Bottle Cage Hardware
| label | part_number | quantity | name |
|---|---|---|---|
| A | 34-20202 | 1 | 31.8 Seat Collar |
| B | 26-20195 | 2 | Fender Mount |
| C | 26-21360 | 4 | Water Bottle Screw |
| D | 26-25139 | 1 | DT Plug |
| E | 26-25138 | 1 | DT Plug for Range Extender |
Loading
Rear Axle, Derailleur Hanger, and Chainstay Protector
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 08-22209 | 1 | Rear axle 173.7 | Apply grease to shaft and threads | |
| B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
| C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20 Nm |
| D | 26-15532 | 2 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | |
| E | 30-20192 | 1 | CS Protector | ||
| F | 26-20124 | 1 | M5x16 Water Bottle screw | Apply grease to threads | |
| G | 26-20864 | 1 | Di2 Plug | ||
| H | 26-20865 | 1 | Wireless Plug | ||
| I | 26-15939 | 1 | M3x12 BHCS | Apply grease to treads | 0.5 Nm |
| J | 26-25140 | 1 | Speed Sensor Cover | ||
| K | 72-24782 | 1 | Fazua speed sensor, medium wire |
Loading
Frame Mounting Hardware
| label | part_number | quantity | name | torque | blurb |
|---|---|---|---|---|---|
| A | 26-25196 | 1 | Fazua charge port mount | ||
| B | 72-24768 | 1 | Fazua charge port cap | ||
| C | 72-24771 | 1 | Fazua Charge port, short wire | ||
| D | 26-15938 | 1 | M3x10 FHCS | 0.65 Nm | Apply Loctite 242 to threads |
| E | 26-27112 | 1 | Fazua charge port cover | Used with range extender only |
Loading
Motor, Motor Mounts, and Downtube Protector
| label | part_number | quantity | torque | name | blurb |
|---|---|---|---|---|---|
| A | 26-23102 | 3 | 0.65 Nm | M4x16 BHCS | Apply grease to threads |
| B | 26-25285 | 5 | 14 Nm | M6x25 BHCS | Apply Loctite 242 to threads |
| C | 26-25284 | 1 | 14 Nm | M6x35 BHCS | Apply Loctite 242 to threads |
| D | 30-25193 | 1 | Downtube protector | ||
| E | 26-25141 | 1 | DU spacer | ||
| F | 30-25194 | 1 | DU protector |
Loading
Head Badge and Control Unit
| label | part_number | quantity | name | blurb |
|---|---|---|---|---|
| A | 67-19217 | 1 | Head Tube Badge | Clean frame surface, center on headtube |
| B | 26-25195 | 1 | Head Tube Grommet | |
| C | 72-24784 | 1 | Fazua LED Hub, long wire | Insert foam tube 26-17568 onto long wire |
Loading
| Frame size | Setup key | Setup cog | 34t | 36t | 38t | 40t | 42t | 44t |
|---|---|---|---|---|---|---|---|---|
| Small | A | 7 | 116 | 118 | 118 | 120 | 120 | 122 |
| Medium | A | 7 | 116 | 118 | 118 | 120 | 120 | 122 |
| Large | A | 7 | 116 | 118 | 118 | 120 | 120 | 122 |
| XLarge | A | 7 | 116 | 118 | 118 | 120 | 120 | 122 |
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
- Santa Cruz Bicycles User Manual
- FAZUA ride60 User Manual NL
- FAZUA ride60 User Manual IT
- FAZUA ride60 User Manual PL
- FAZUA ride60 User Manual PT
- FAZUA ride60 User Manual DE
- FAZUA ride60 User Manual FR
- FAZUA ride60 User Manual US
- FAZUA ride60 User Manual ES
- Heckler SL and Skitch Declaration of Conformity DoC MY25 MYXX

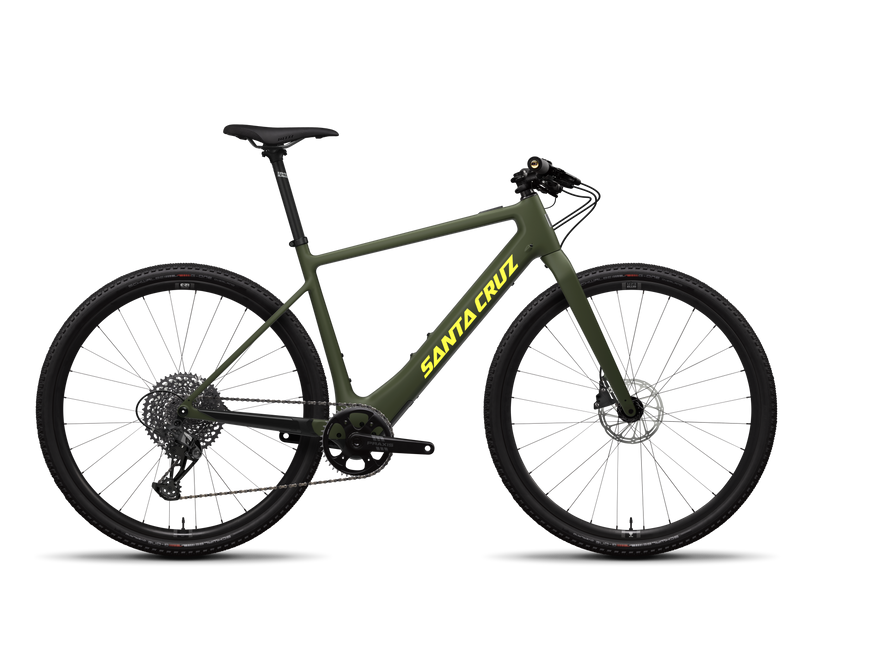

Skitch GX AXS Flat Bar
$6,199.00
USD
Regular price
$7,299.00
Get access to the exclusive SCB Owners Club which gives you access to added levels of rider support, treats, opportunities and benefits. Join the club today for free! It takes just five minutes to receive a lifetime of membership perks.
Learn MoreWe build Santa Cruz bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.
Carbon
CC
Front (MM)
0
Rear (MM)
0
Wheel Size
700C
30.13
13.67
Weight (lbs)
30.13
Weight (kg)
13.67
The Skitch is the ultimate city-slicking, traffic-flicking, alleycat-slipping, rat race-escaping teleportation device. The powerful and light motor gives you a nudge to spend less time behind a glass windscreen and more time with your knees in the breeze. You’ll look for even more excuses to get on your bike because even a city commute can be as much fun as bike park laps.
Dig Deep
Specs, sizing and support for the Skitch GX AXS Flat Bar
Build kit& Specs
Geometry& Sizing
Setup& Support
