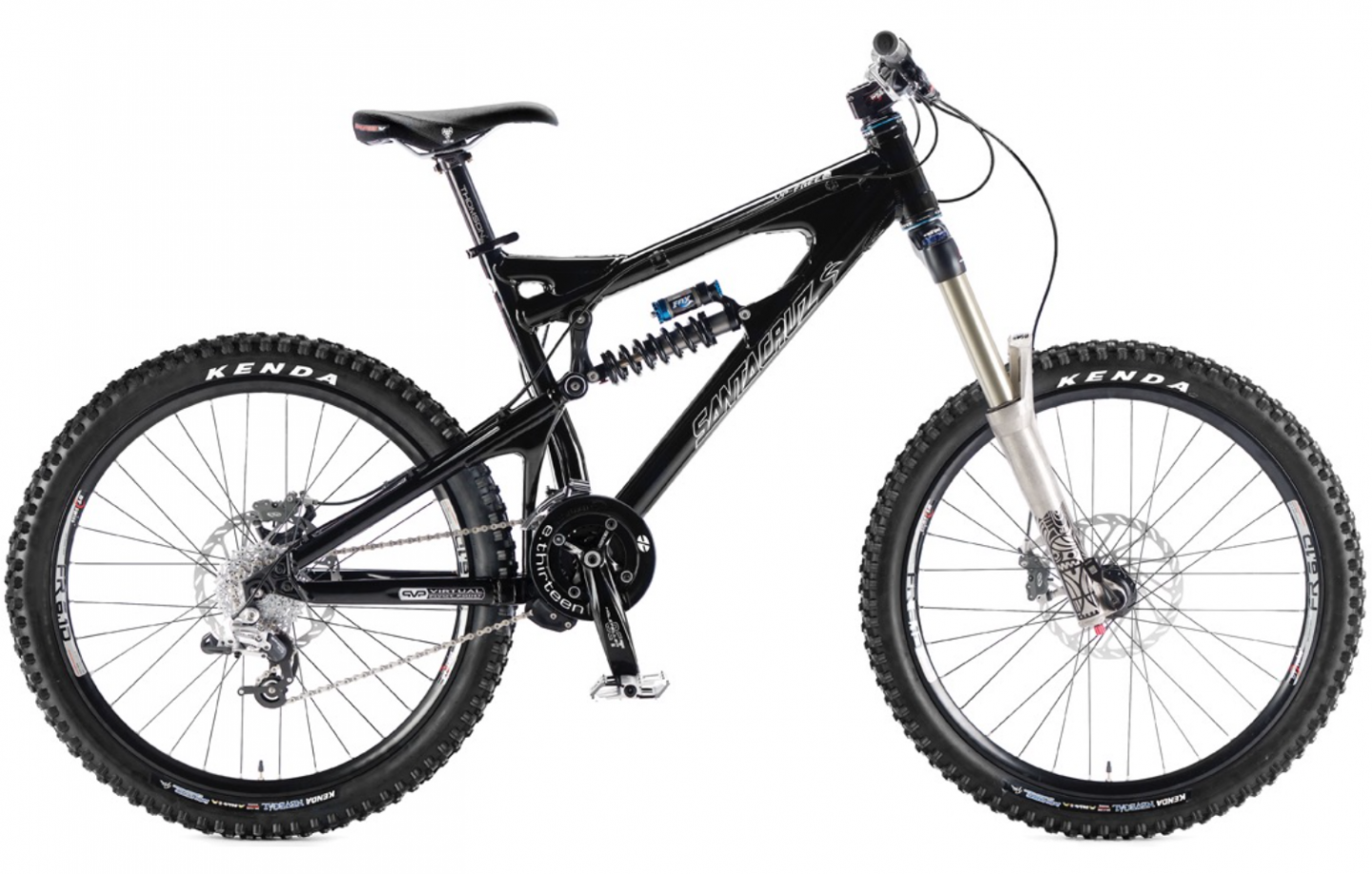

VP Free 15
2006 - 2007
| Model Version | 1.5 |
|---|---|
| Production Start | 2006 |
| Production End | 2007 |
| Suspension/Pivot System | VPP - Virtual Pivot Point |
| Material | Aluminum - 6000 series |
| Rear Wheel Travel | 215mm |
| Size Range | S,M,L |
Specifiche

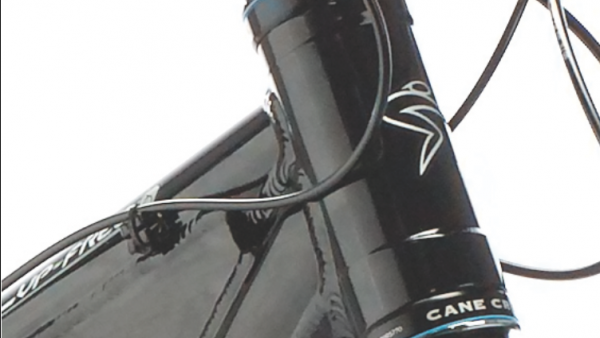

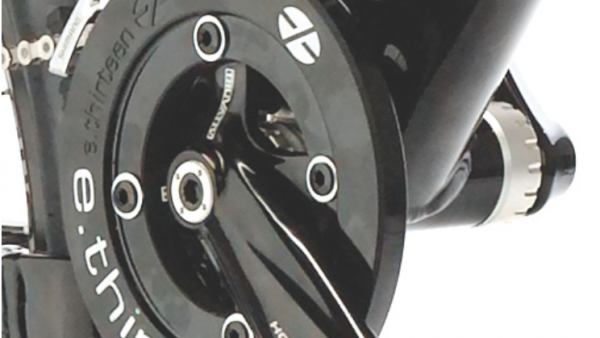

| Compatible Forks | 160mm to 200mm total travel - 203mm travel max |
|---|---|
| Headtube/Headset | 1.5" Straight - External Headset. S.H.I.S. EC49/38.1 EC49/40 |
| Seat Post | 30.9mm - Minimum insertion 100mm |
| Front Derailleur | 34.9mm-Top Pull/Top Swing-Shimano Saint model #M815 For Double CR - 34.9mm-Top Pull/Top Swing-Shimano Saint model#M805 For Triple CR |
| BB Shell Width | 83mm - Threaded - ISO |
| Chainline Spec | 55mm |
| Recommended Max Tire Size | 2.7 - may vary by tire and rim model |
| Brakes | Disc Brake - ISO |
| Max Brake Rotor Size | 203mm |
| Rear Hub | 150mm x 12mm Through-Axle |
| Seatpost Clamp | 34.9mm |
Specifiche ammo
| Rear Shock Eye-to-Eye | 8.75" |
|---|---|
| Stroke | 2.75" |
| Mounting Bushing Width Front | 22mm |
| Mounting Bushing Width Rear | 22mm |
| Mounting Bolt Diameter Front | 8mm |
| Mounting Bolt Diameter Rear | 8mm |
| Leverage Ratio | 3.1 : 1 |
| Rear Shock Setup | Because it is highly likely the original rear shocks on older models are repaired/replaced/upgraded throughout the lifetime of the frame, we offer some very basic tuning guidelines, and recommend using the original rear shock manufacturers manual for more detailed set-up for the specific rear shock you have. Contact the rear shock manufacturer for info if you do not have it.
The key component for set-up with any rear shock here is sag. Once you have that set-up correctly, the rest of the shock settings are fine tuning adjustments (Rebound and Compression damping, etc.) set to rider preference.Recommended sag is 18-22mm at the shock shaft - This equates to approximately 25-30% of the total rear wheel travel. Less sag = a firmer suspension feel.For Coil rear shocks here is a rough spring size to weight guideline for average coil shocks.
This can vary based on rear shock model and manufacturer.100-130lbs - 350#140-160lbs - 400#160-170lbs - 400#180-200lbs - 450#210-230lbs - 500# |

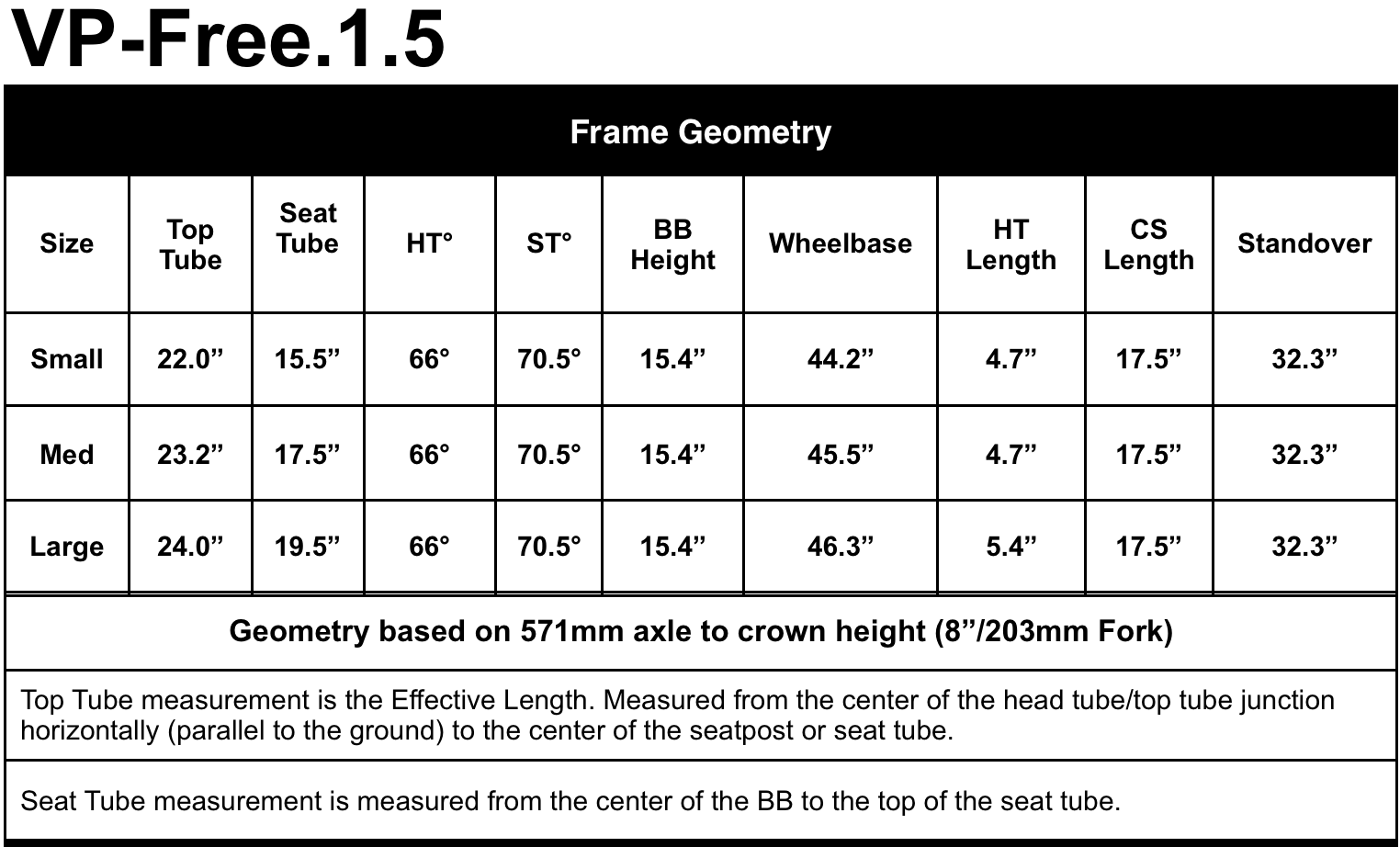

Geometria
Torque Specs
| Fastener | Description | Prep | Torque | Download |
|---|---|---|---|---|
| Lower Pivot Bolts | Lower Main Pivot Chainring Bolts (4) | Loctite 242 | 115 inch lbs | - |
| Upper Link Bolts | Upper Pivot Chainring Bolts (4) | Loctite 242 | 115 inch lbs | - |
| Dropout/Derailleur Hanger | Dropout Chainring Mounting Bolts/Nuts (2 bolts/2nuts) | Loctite 242 | 115 inch lbs | - |
| Rear Hub Axle | 150 x 12mm Axle | Grease | 120 inch lbs20 inch lbs | - |
| Frame to Shock
Mounting Bolt | M8 x 45 socket head cap screw (1) | Loctite 242 | 190 inch lbs | - |

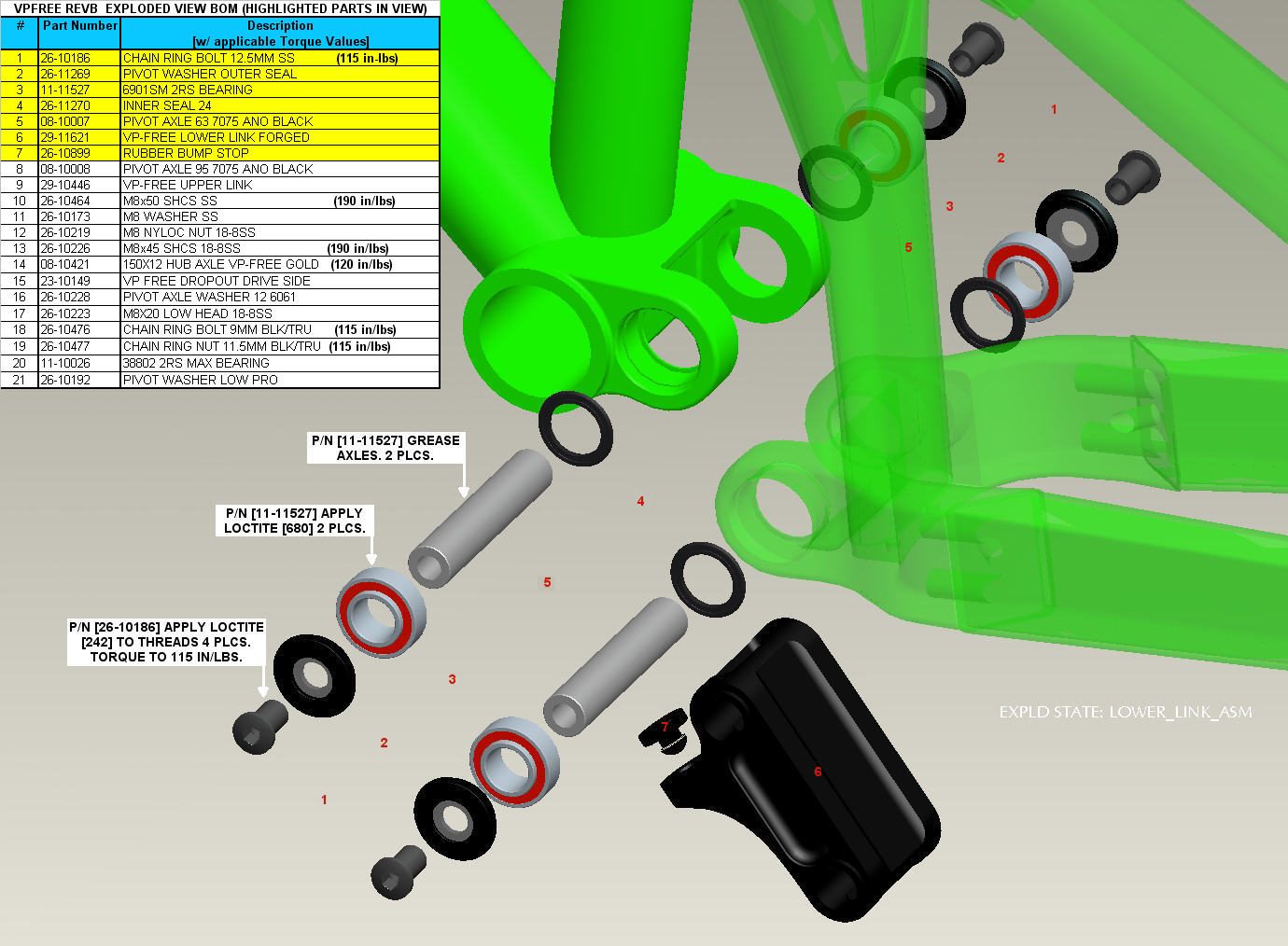

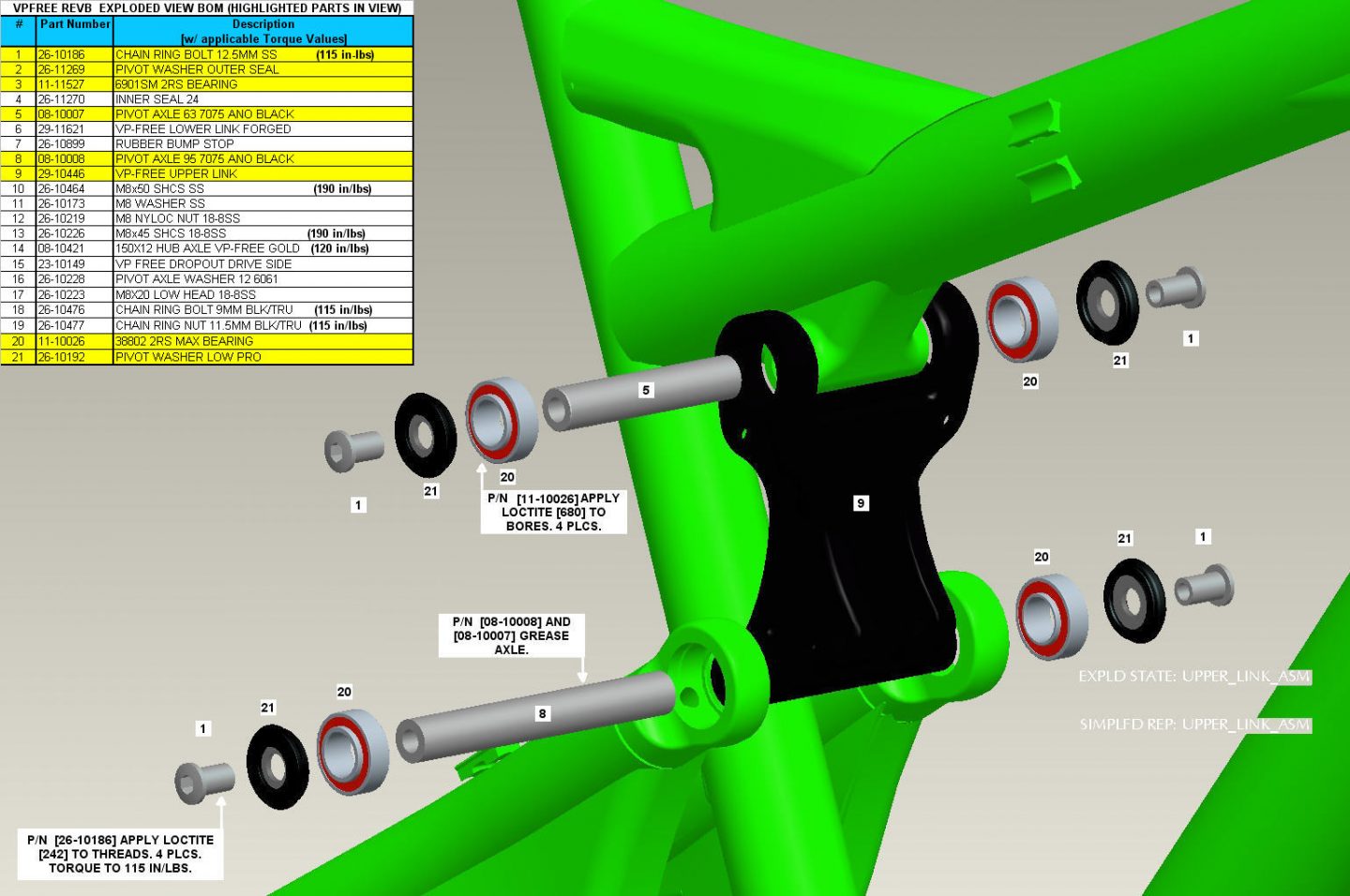

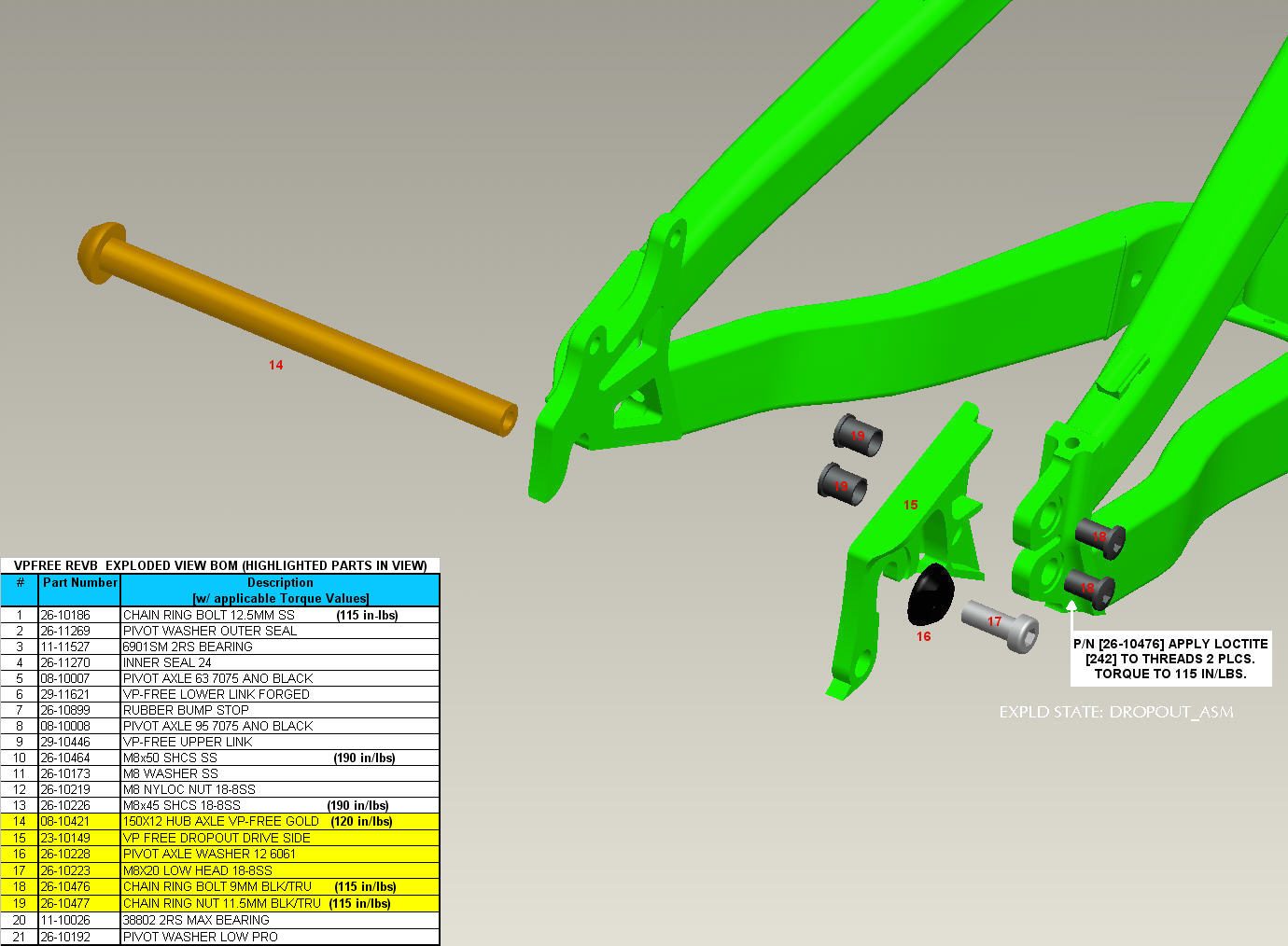

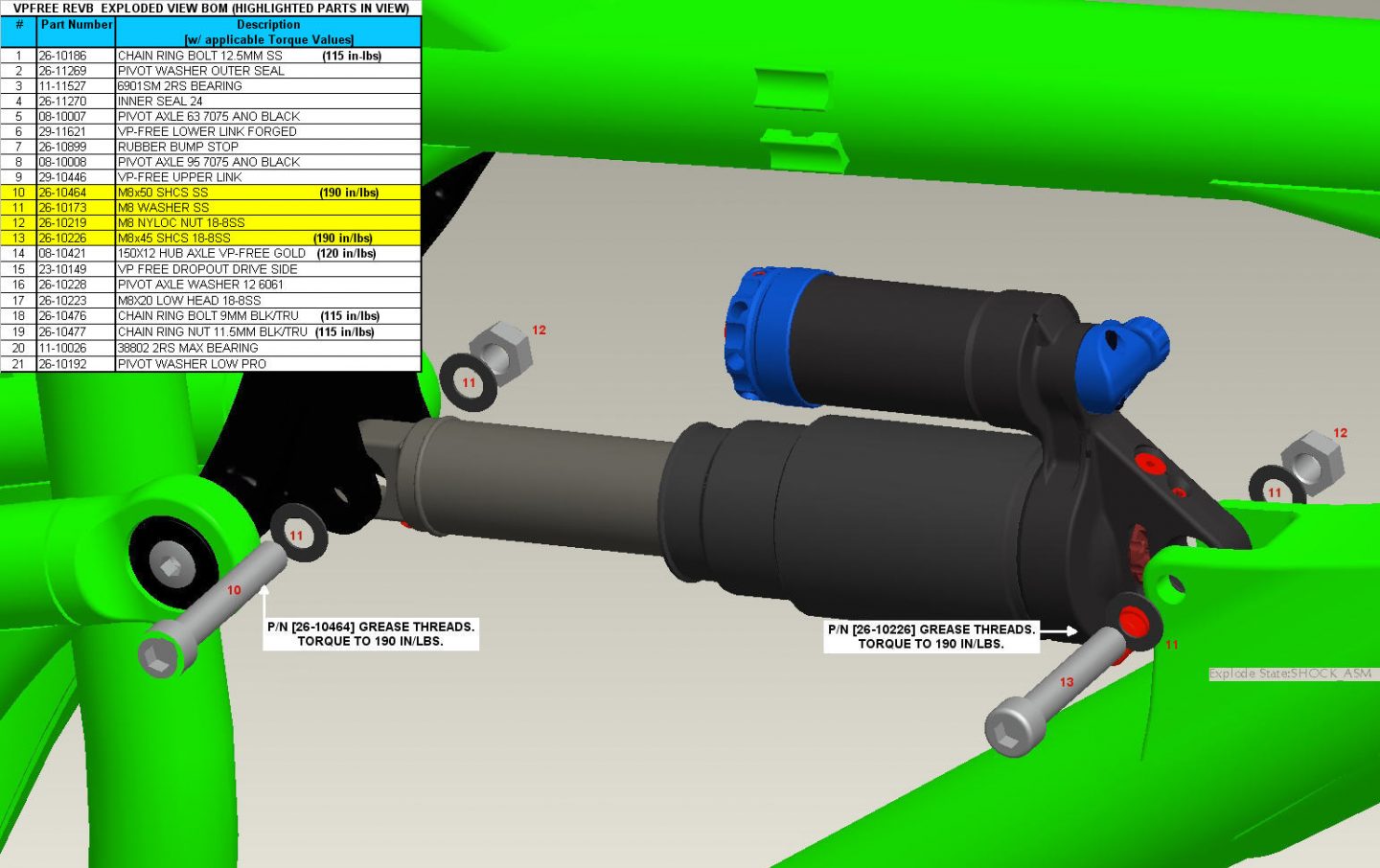

Exploded Diagrams
Caricamento
Caricamento
Caricamento
Caricamento
Manuals & Files
Se desideri ulteriori informazioni sulla tua bicicletta, consulta il nostro Santa Cruz Bicycles Owner's Manual
