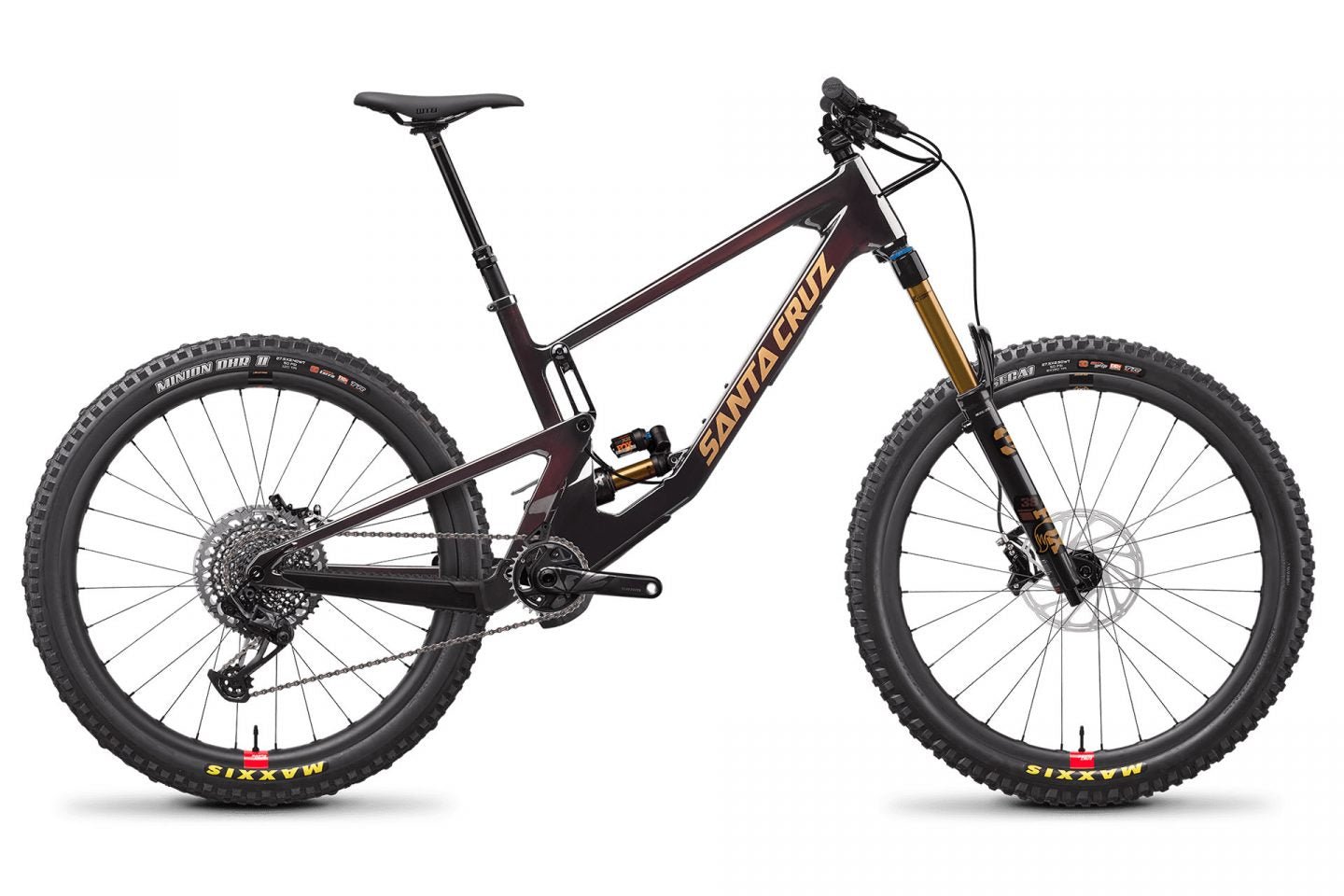

Nomad 5

Model Version 5
Production Start 2021
Production End 2022
Suspension/Pivot System VPP - Virtual Pivot Point
Material Carbon Fiber
Rear Wheel Travel 170
Size Range S,M,L,XL

Spécificités du modèle

Compatible Forks 170-180mm
Headtube/Headset Tapered - Integrated Headset. 1-1/8" Upper bearing and 1.5" Lower bearing. S.H.I.S. IS 41/28.6 IS 52/40
Seat Post 31.6mm - Minimum Insertion 100mm
Front Derailleur N/A - Single Front Chainring Only
BB Shell Width 73mm - Threaded - ISO
Recommended Max Tire Size 2.6 - may vary by tire and rim model
Max Brake Rotor Size 203mm
Rear Hub 148x12mm Through Axle
Seatpost Clamp 36.4mm

Spécificités de l'amortisseur

Rear Shock Eye-to-Eye 230
Stroke 62.5
Mounting Bushing Width Front 25x8
Mounting Bushing Width Rear 30x8

Configuration de la transmission

Frame Size Setup Key Setup Key Setup Cog 32T 34T 36T
Small High A 6 114 116 116
Medium High A 6 116 116 118
Large High A 6 116 118 118
XLarge High A 6 116 118 118
Small Low A 6 114 116 116
Medium Low A 6 116 116 118
Large Low A 6 116 118 118
XLarge Low A 6 118 118 120

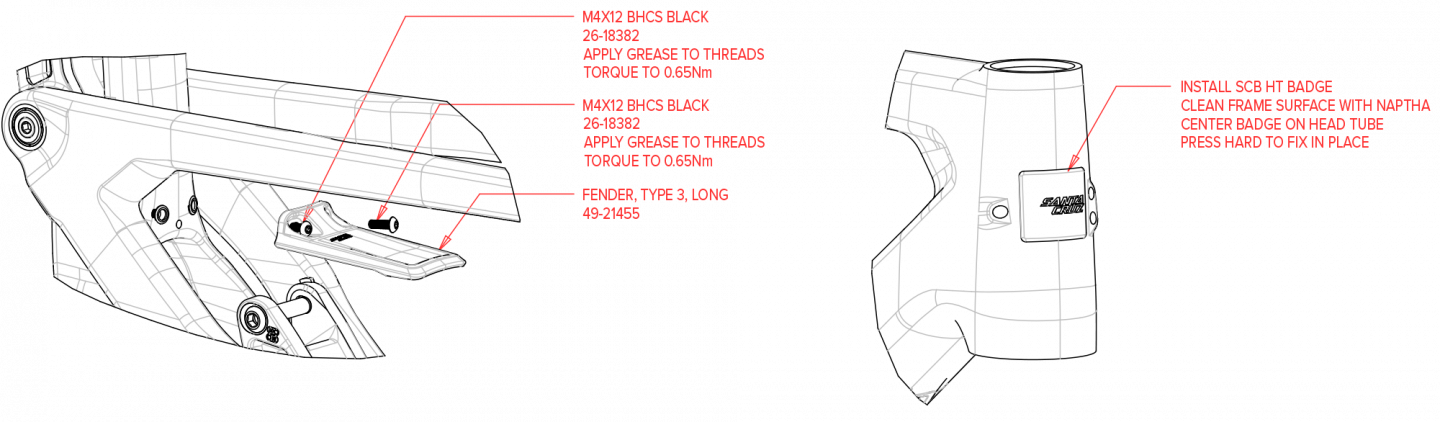

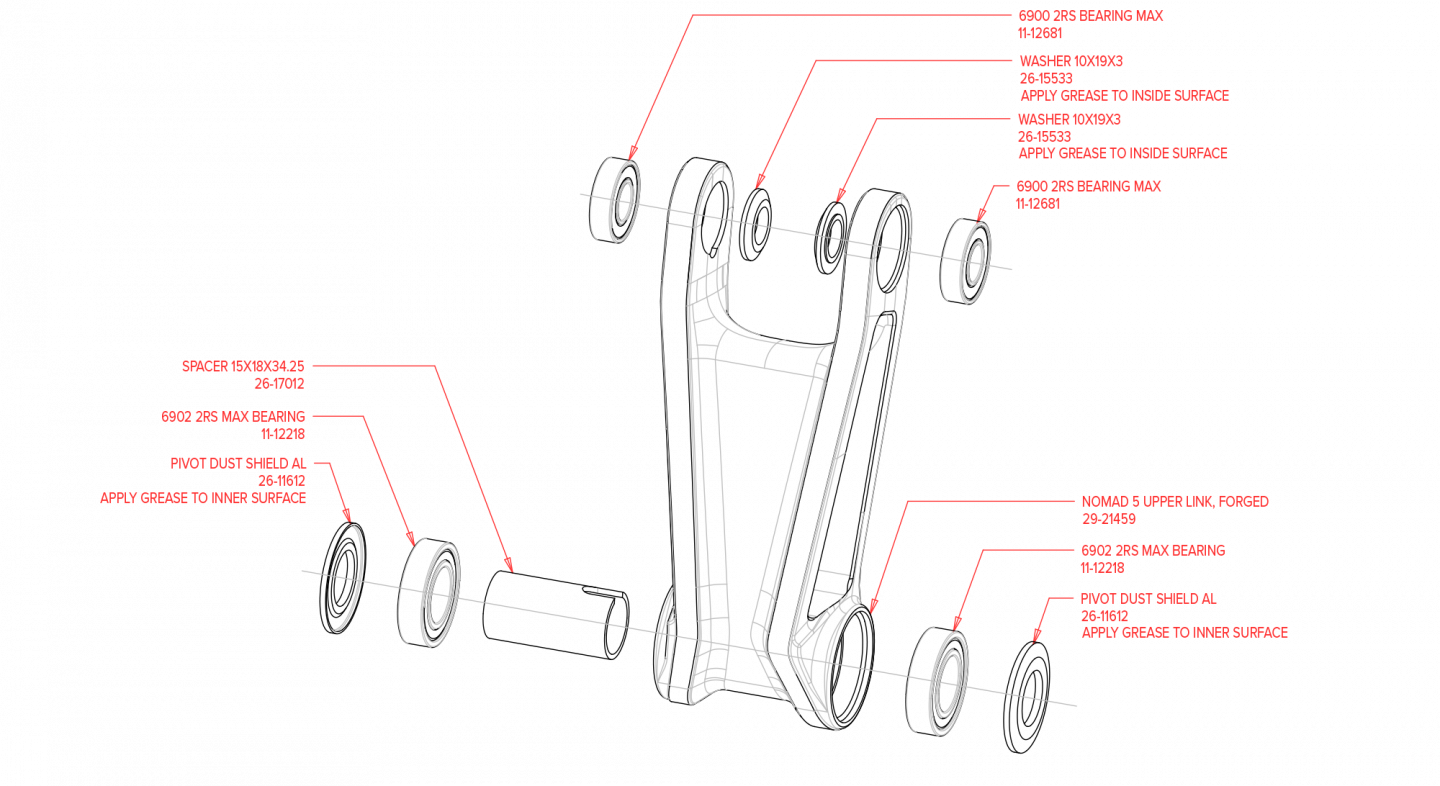

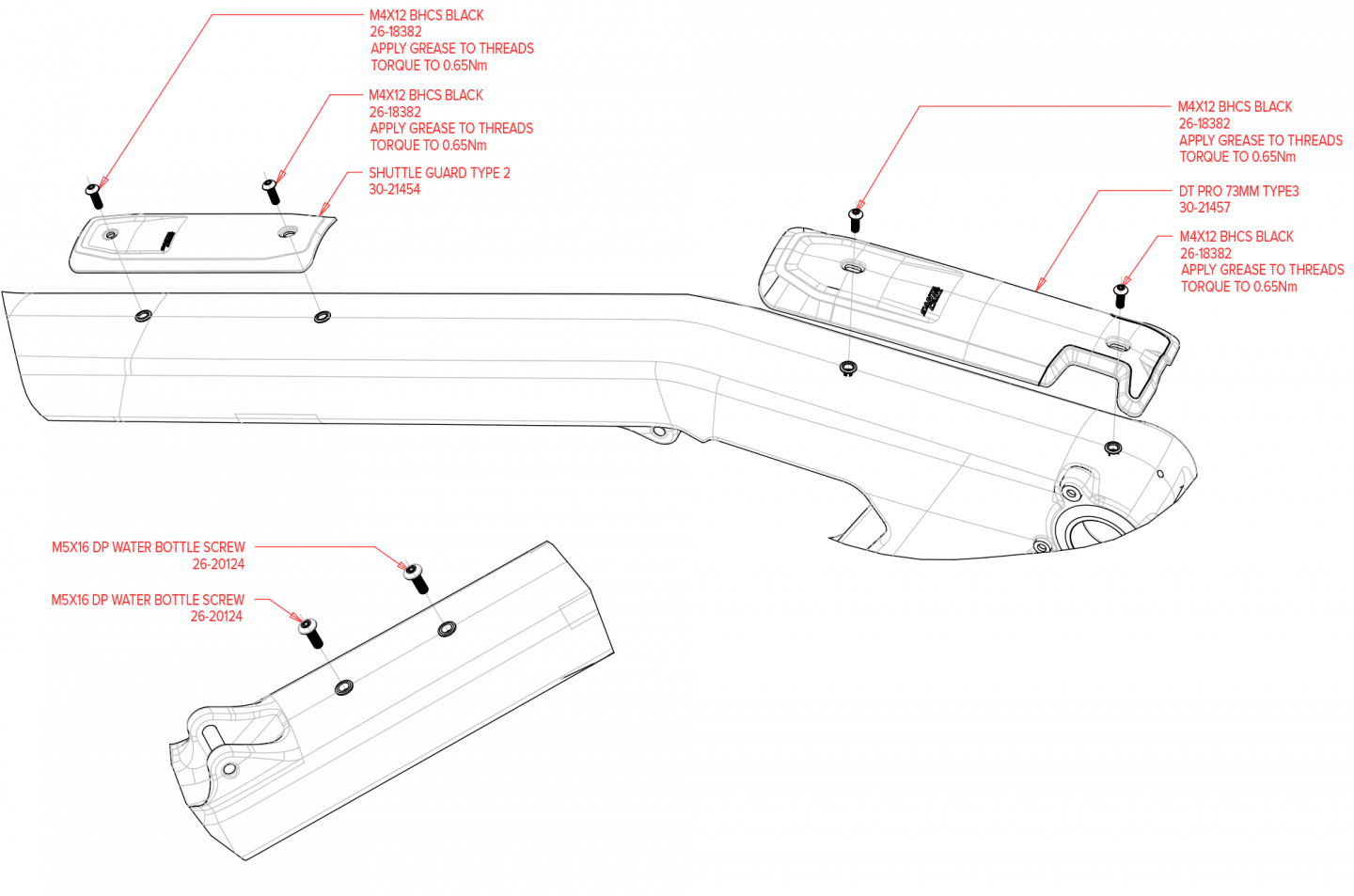

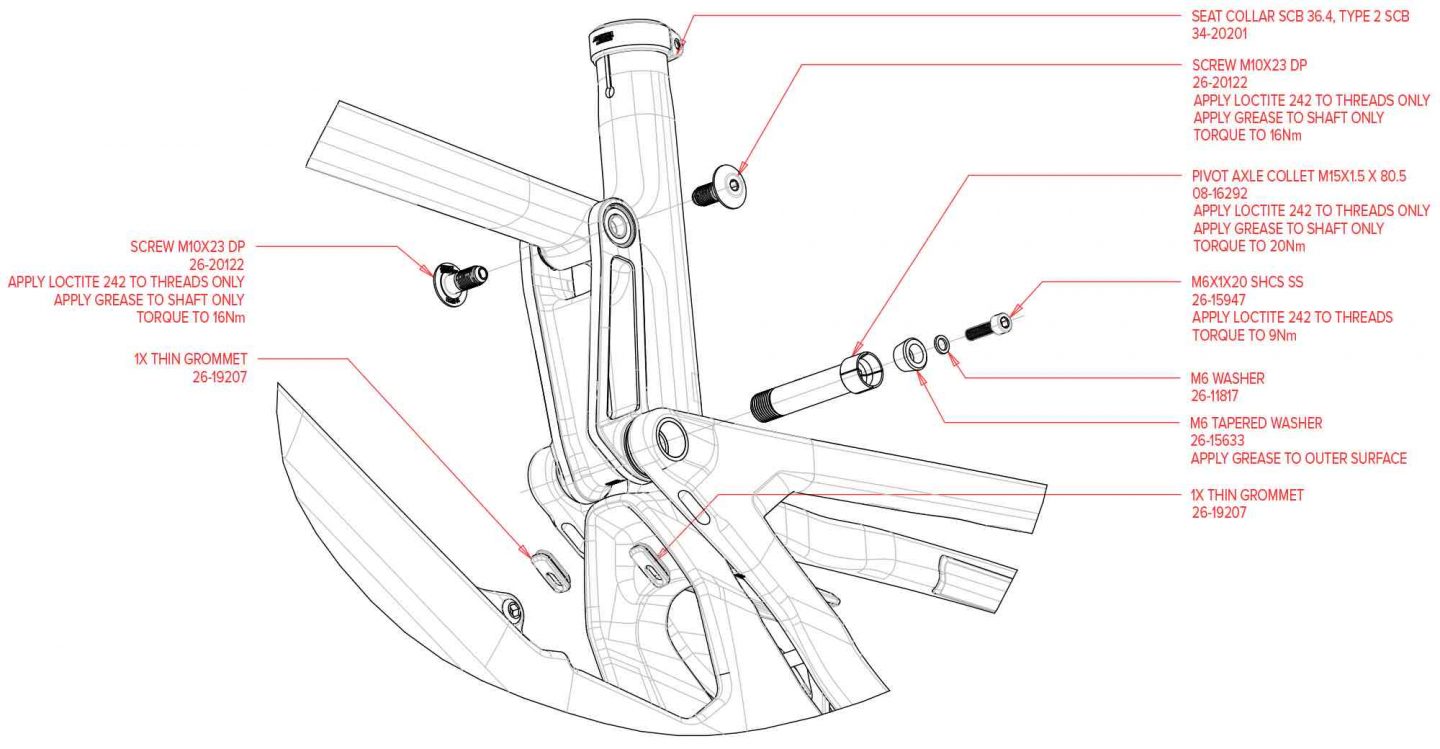

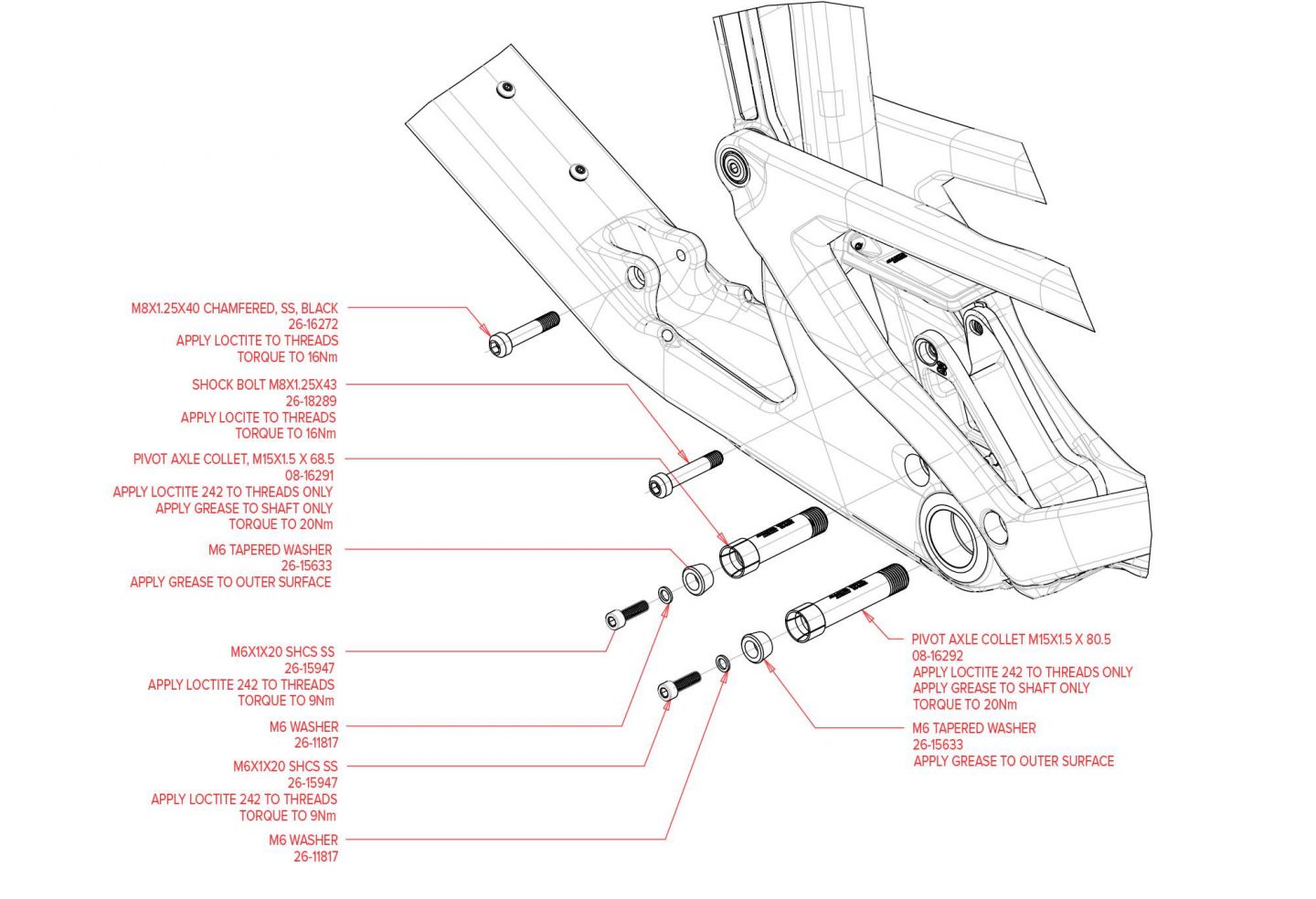

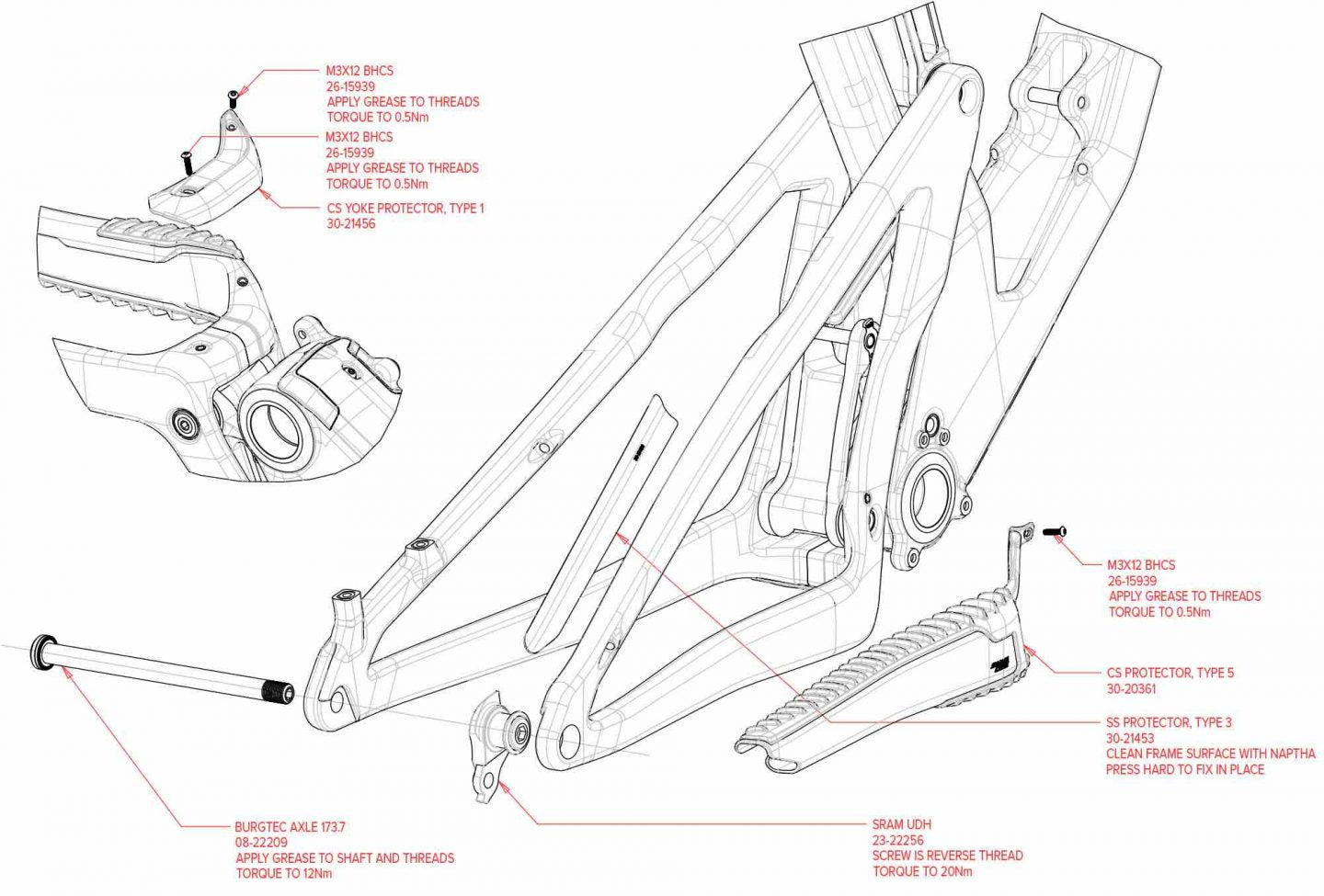

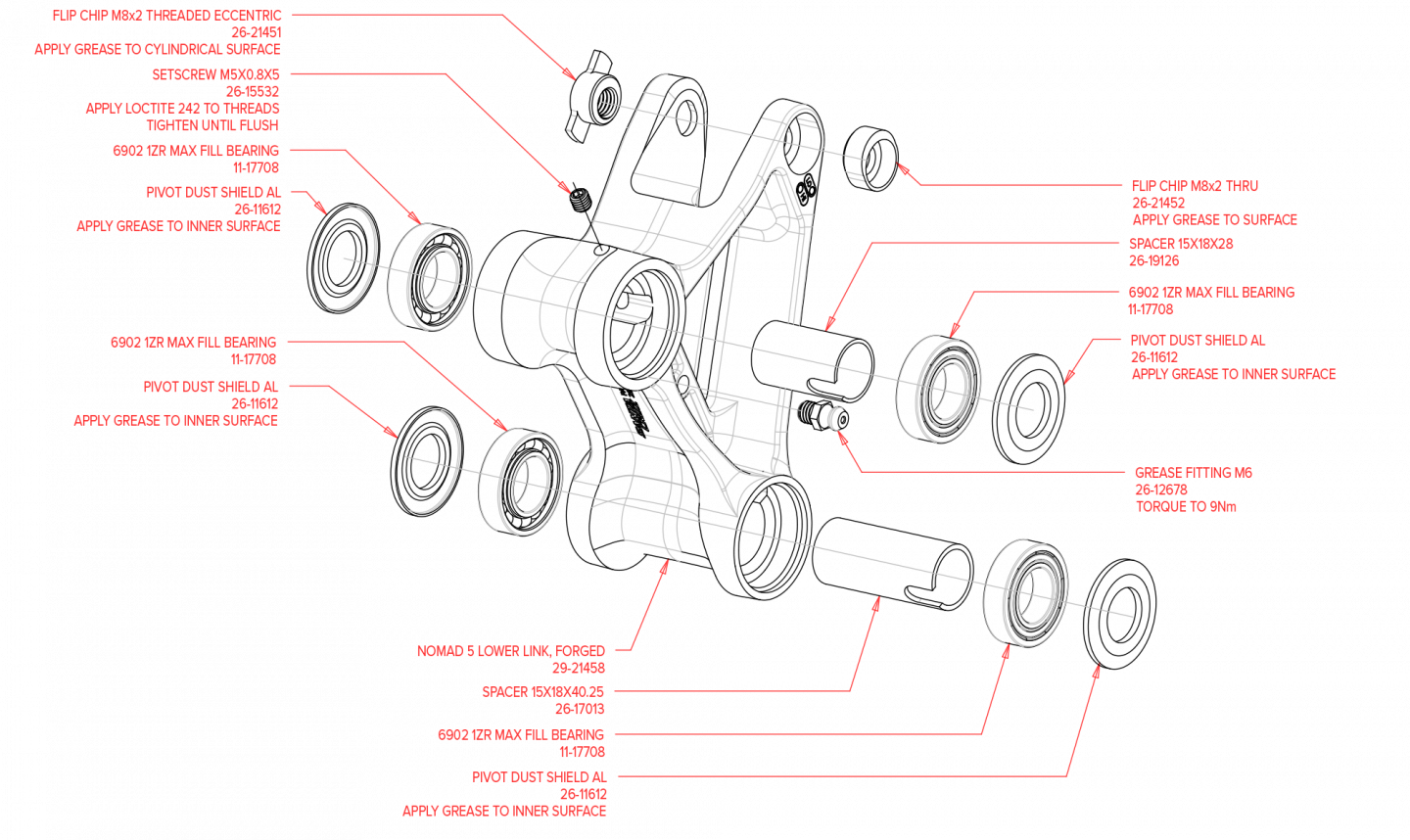

Vues éclatées

Documents

Si vous cherchez davantage d'informations sur votre vélo, consultez le manuel d'utilisation.
