Super 8 1
1998 - 1999
| Model Version | 1 |
|---|---|
| Production Start | 1998 |
| Production End | 1999 |
| Suspension/Pivot System | Single Pivot |
| Material | Aluminum - 6000 series |
| Rear Wheel Travel | 190mm |
| Size Range | 14", 17", 19" |
Rahmen-Spezifikationen
| Compatible Forks | 150-160mm single and dual crown forks - 160mm travel max |
|---|---|
| Headtube/Headset | 1-1/8" Straight - External. S.H.I.S EC34/28.6 EC34/30 |
| Seat Post | 28.6mm - Minimum insertion 100mm |
| Front Derailleur | 34.9mm Top Pull/Top Swing (Low Clamp) |
| BB Shell Width | 68mm - Threaded - ISO |
| Chainline Spec | 50mm |
| Recommended Max Tire Size | 2.35 - may vary by tire and rim model |
| Brakes | Rim Brake and/or 22mm Hayes 22mm Direct Mount Caliper Hayes Disc Brake with adapter |
| Max Brake Rotor Size | 160mm |
| Rear Hub | 135mm x 10mm (QR style) |
| Seatpost Clamp | 34.9mm |
| Component Notes | Only rear brake option was with an adaptor for Hayes 22mm Direct Mount Caliper for Hayes Disc Brake |
Dämpfer-Maße
| Rear Shock Eye-to-Eye | 7.875" |
|---|---|
| Stroke | 2.25" |
| Mounting Bushing Width Front | 22mm |
| Mounting Bushing Width Rear | 41mm |
| Mounting Bolt Diameter Front | 8mm |
| Mounting Bolt Diameter Rear | 8mm |
| Leverage Ratio | 3.3 : 1 |
| Rear Shock Setup | Because it is highly likely the original rear shocks on older models are repaired/replaced/upgraded throughout the lifetime of the frame, we offer some very basic tuning guidelines, and recommend using the original rear shock manufacturers manual for more detailed set-up for the specific rear shock you have. Contact the rear shock manufacturer for info if you do not have it. The key component for set-up with any rear shock here is sag. Once you have that set-up correctly, the rest of the shock settings are fine tuning adjustments (Rebound and Compression damping, etc.) set to rider preference.Recommended sag is 12-15mm at the shock shaft - This equates to approximately 25% of the total rear wheel travel. Less sag = a firmer suspension feel.For Coil rear shocks here is a rough spring size to weight guideline for average coil shocks. This can vary based on rear shock model and manufacturer.100-130lbs - 500#140-160lbs - 550#160-170lbs - 650#180-200lbs - 750#210-230lbs - 850# |

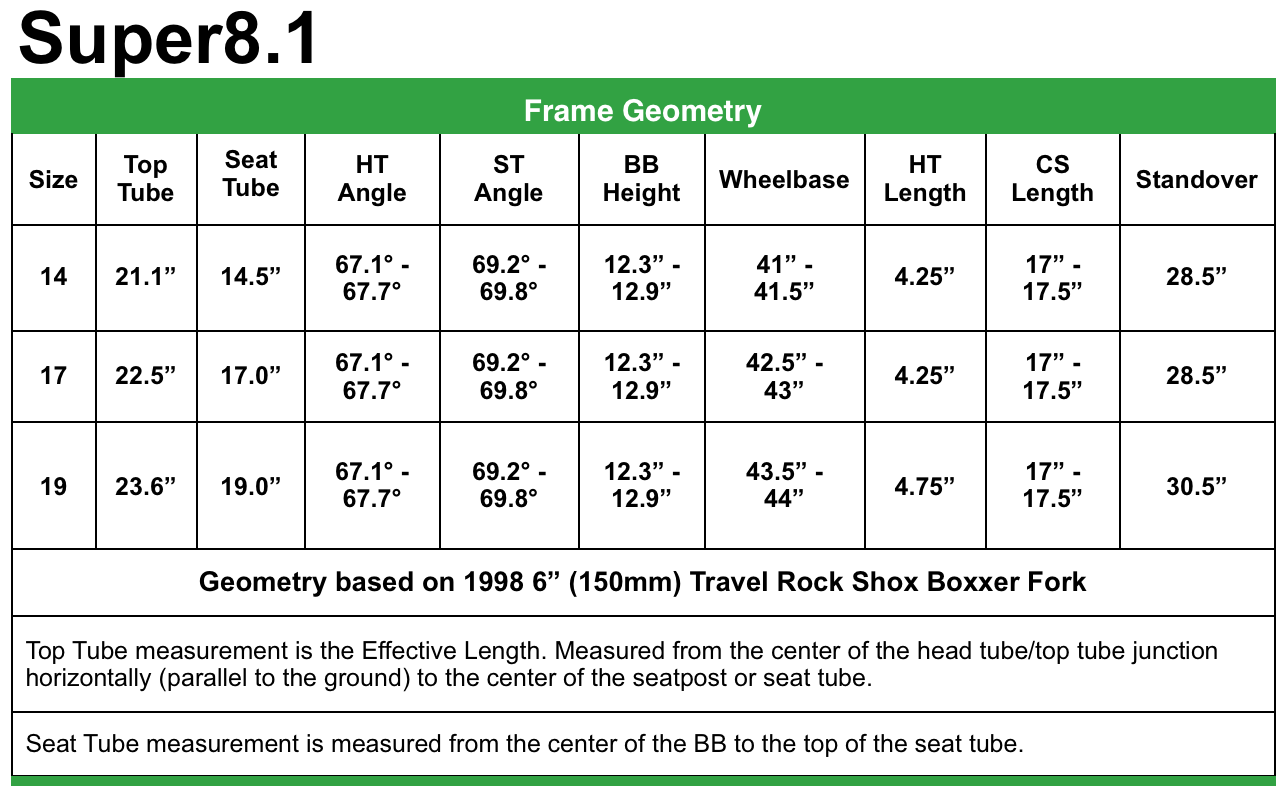

Geometrie
Dateien
Wenn Du mehr Informationen zu Deinem Bike suchst, findest Du sie im Santa Cruz Bicycles-Benutzerhandbuch.
