Tallboy 3

Model Version 3
Production Start 2016
Production End 2019
Suspension/Pivot System VPP - Virtual Pivot Point
Material Available in Carbon Fiber & Aluminum
Rear Wheel Travel 110mm
Size Range S , M , L, XL , XXL

Rahmen-Spezifikationen

Compatible Forks 120 - 130mm
Headtube/Headset Tapered - Integrated, 1-1/8th" Upper, 1.5" Lower; IS41/IS52; Short Cover
Seat Post 31.6mm - Minimum Insertion 100mm
Front Derailleur See Component Notes
BB Shell Width 73mm - Threaded - ISO
Chainline Spec 50mm
Brakes Disc Brake - ISO
Max Brake Rotor Size 180mm
Rear Hub 148x12mm Through Axle
Seatpost Clamp 36.4mm
Component Notes Front Derailleur:Tallboy 3 utilizes a direct mount-side swing Front Derailleur and the carbon version requires the use of a front derailleur mount adapter (part number 04-17628)Recommended Max Tire Size:29"x2.35" (May vary by tire and rim model)27.5"x3" (May vary by tire and rim model)Headset Spec:IS41/IS52 - Short Cover

Dämpfer-Maße

Rear Shock Eye-to-Eye 7.25"
Stroke 1.75"
Mounting Bushing Width Front 22mm
Mounting Bushing Width Rear 22mm
Mounting Bolt Diameter Front M8
Mounting Bolt Diameter Rear M8

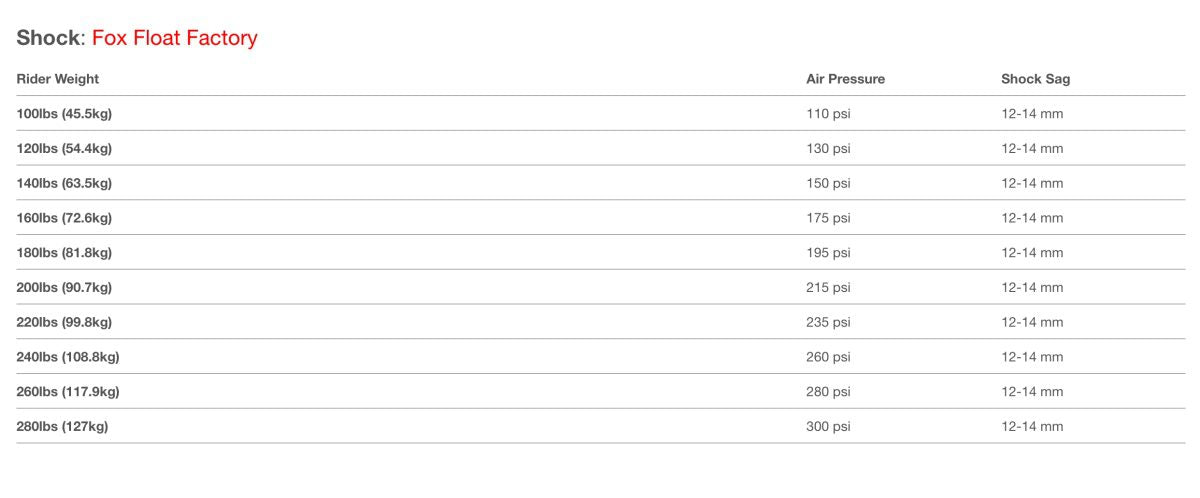

Rear Shock Setup tb3shocksetup.jpg

Geometrie

Alle Einheiten in Millimeter oder Grad
s m l xl xxl
A. Reach 405mm 430mm 450mm 475mm 505mm
B. Stack 504mm 603mm 603mm 617mm 631mm
Head tube angle 68° 68° 68° 68° 68°
Sitzrohrlänge 390mm 420mm 450mm 480mm 510mm
F. Front Center 684mm 713mm 733mm 763mm 799mm
Tretlagerhöhe 330mm 330mm 330mm 330mm 330mm
Tretlagerabsenkung 40mm 40mm 40mm 40mm 40mm
Radstand 1116mm 1145mm 1165mm 1195mm 1231mm
Hinterbaulänge 432mm 432mm 432mm 432mm 432mm
Steuerrohrlänge 90mm 100mm 100mm 115mm 130mm
Oberrohrlänge 574mm 603mm 623mm 653mm 688mm
Sitzwinkel 73° 73° 73° 73° 73°
Überstandshöhe 705mm 706mm 707mm 709mm 704mm
Eye to eye length
Seatpost length
Stem length
Crank length

Fahrwerks-Setup

Suspension Setup

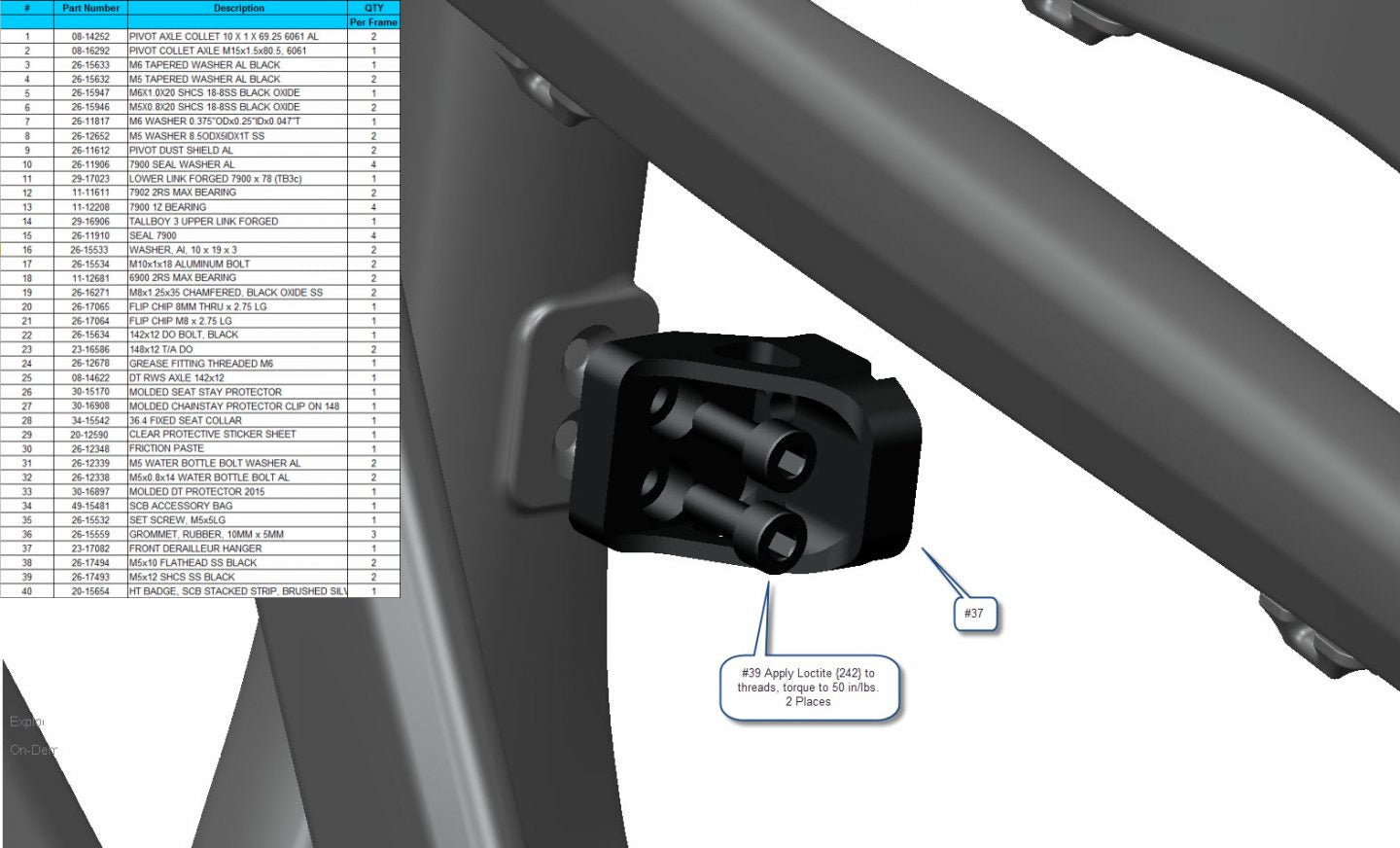

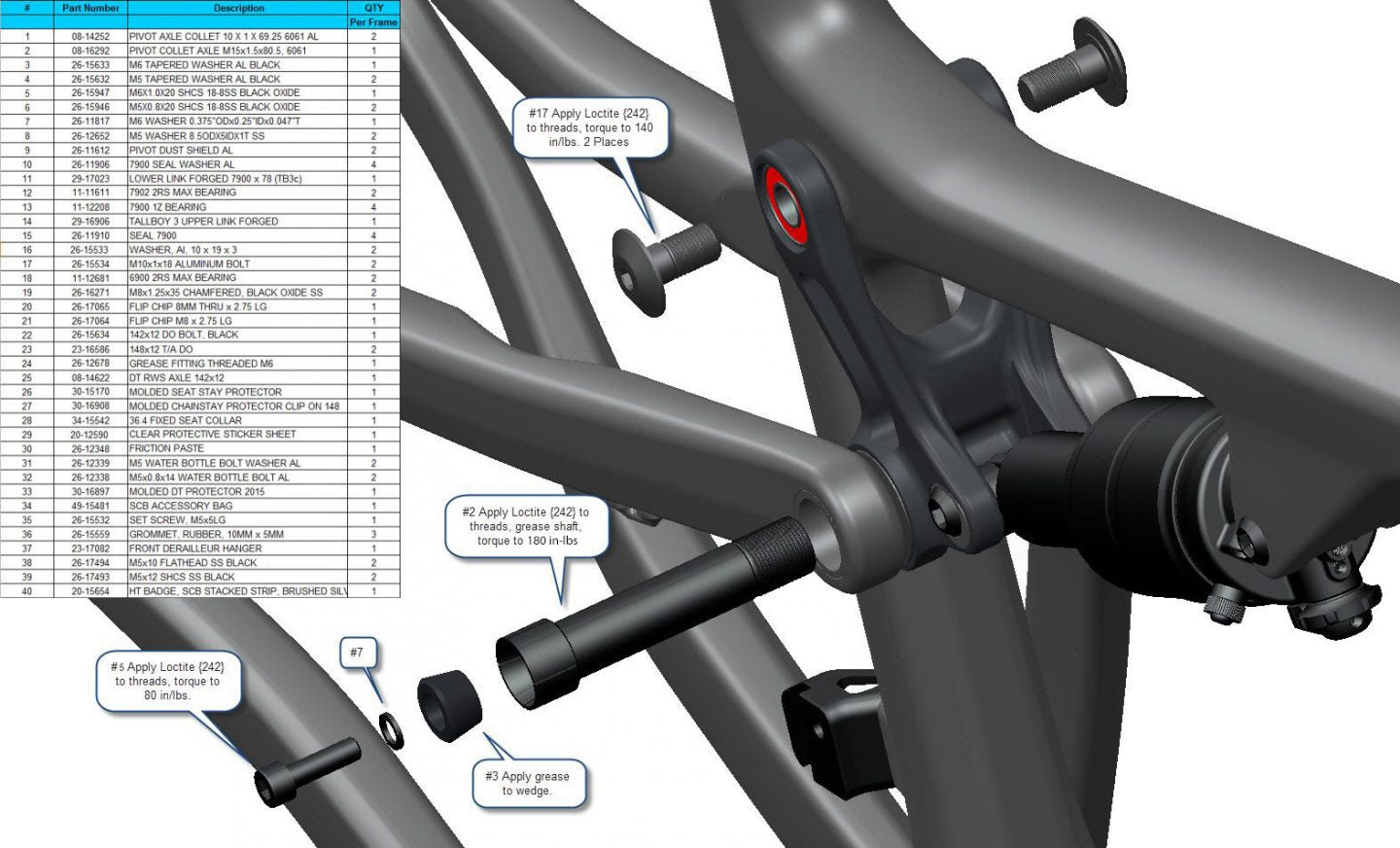

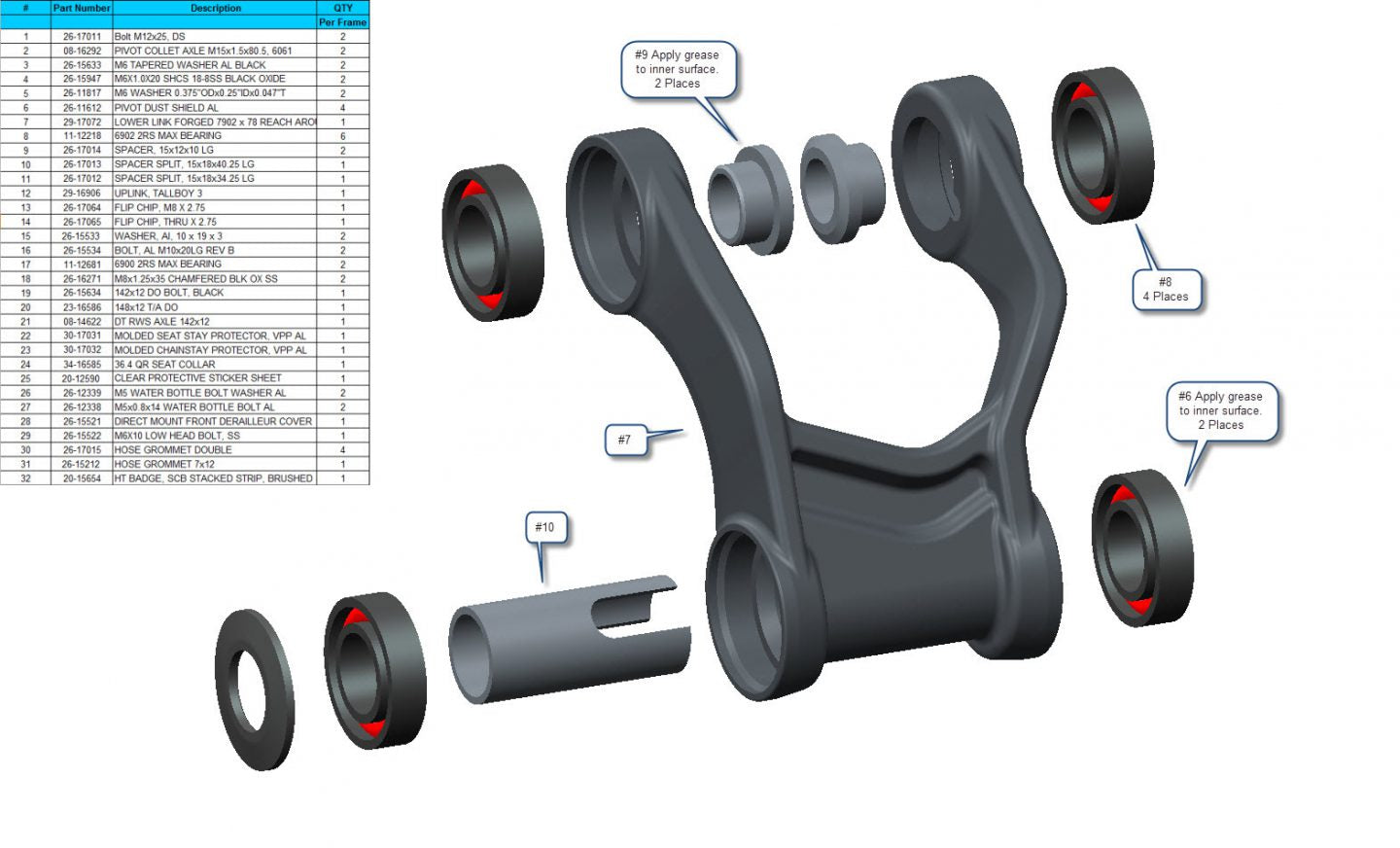

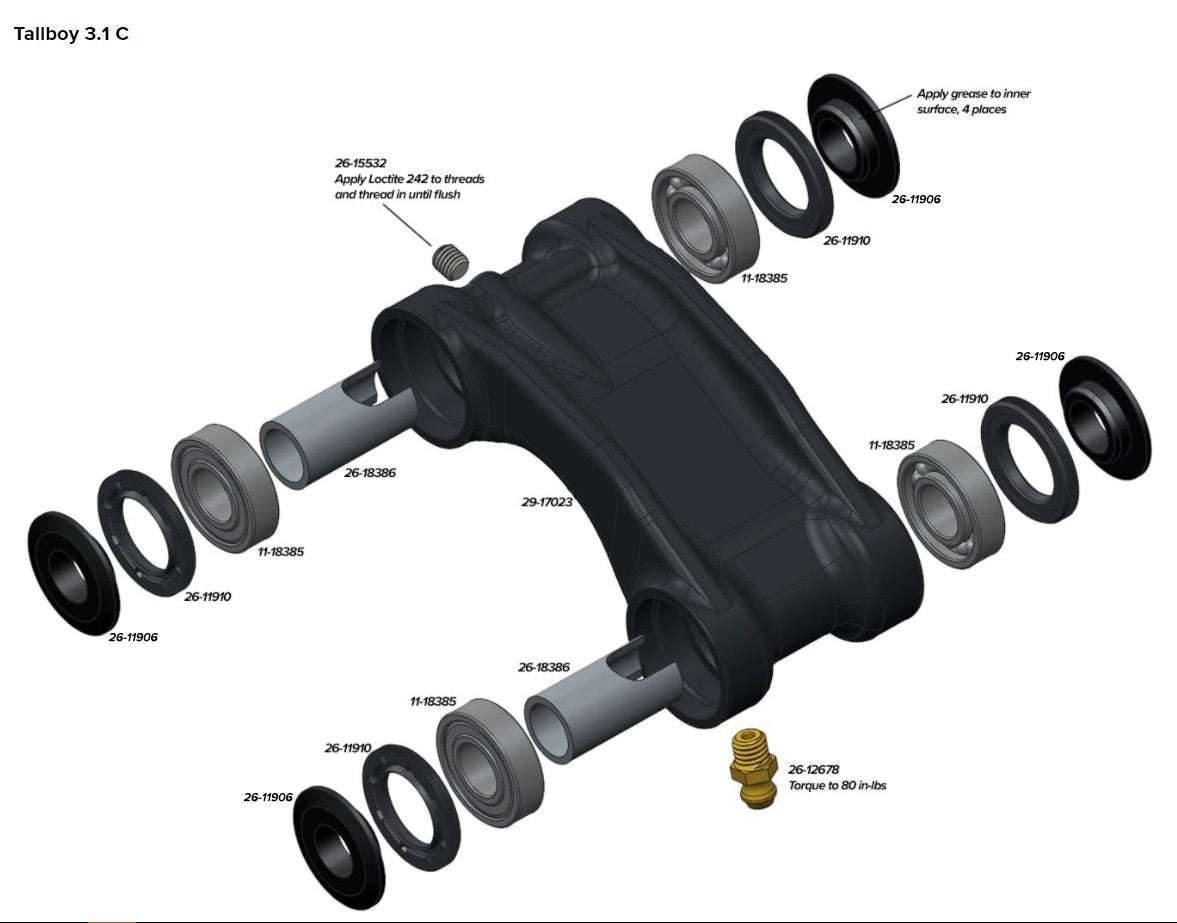

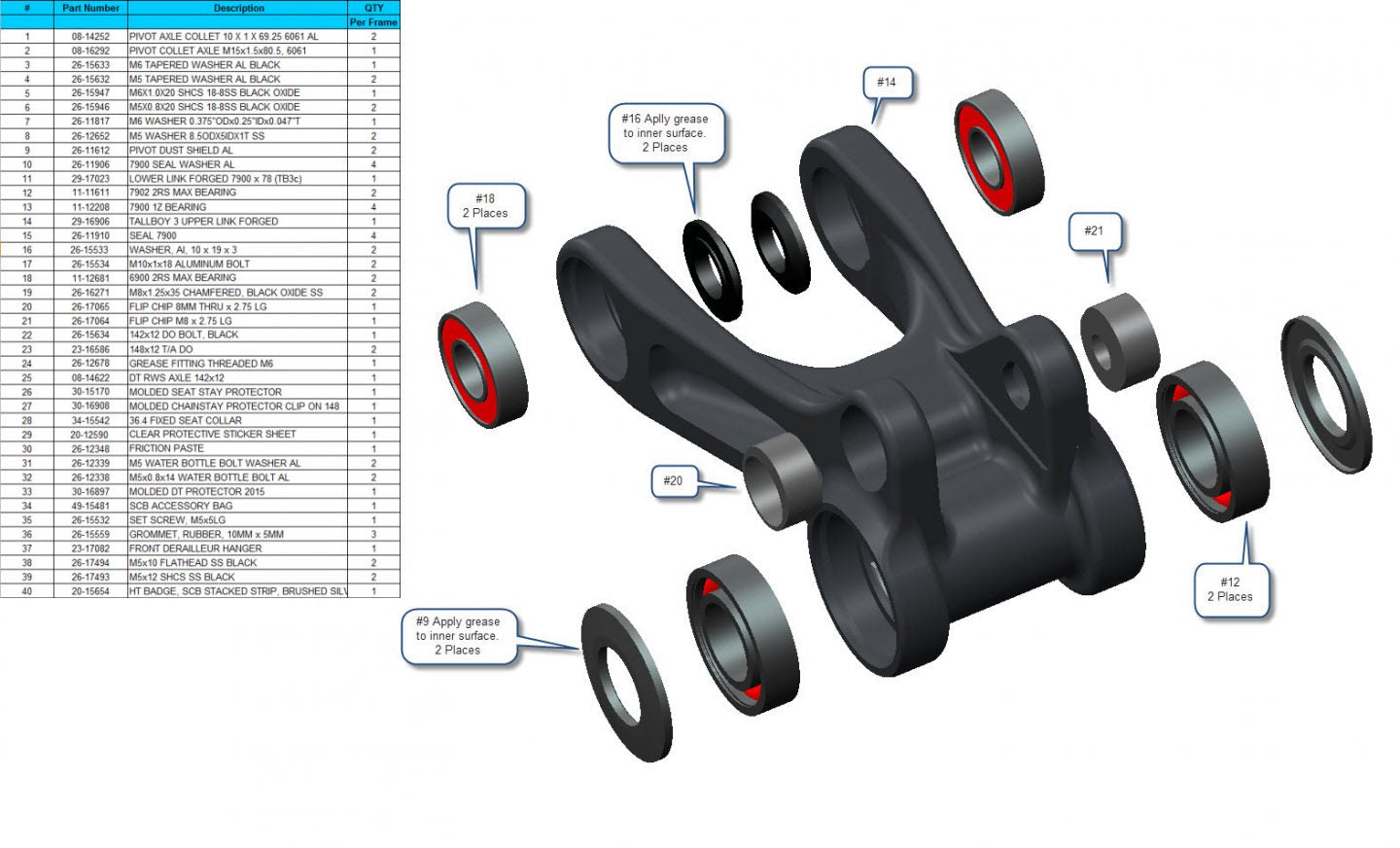

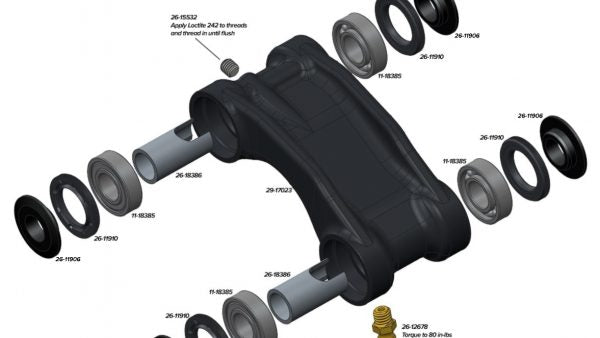

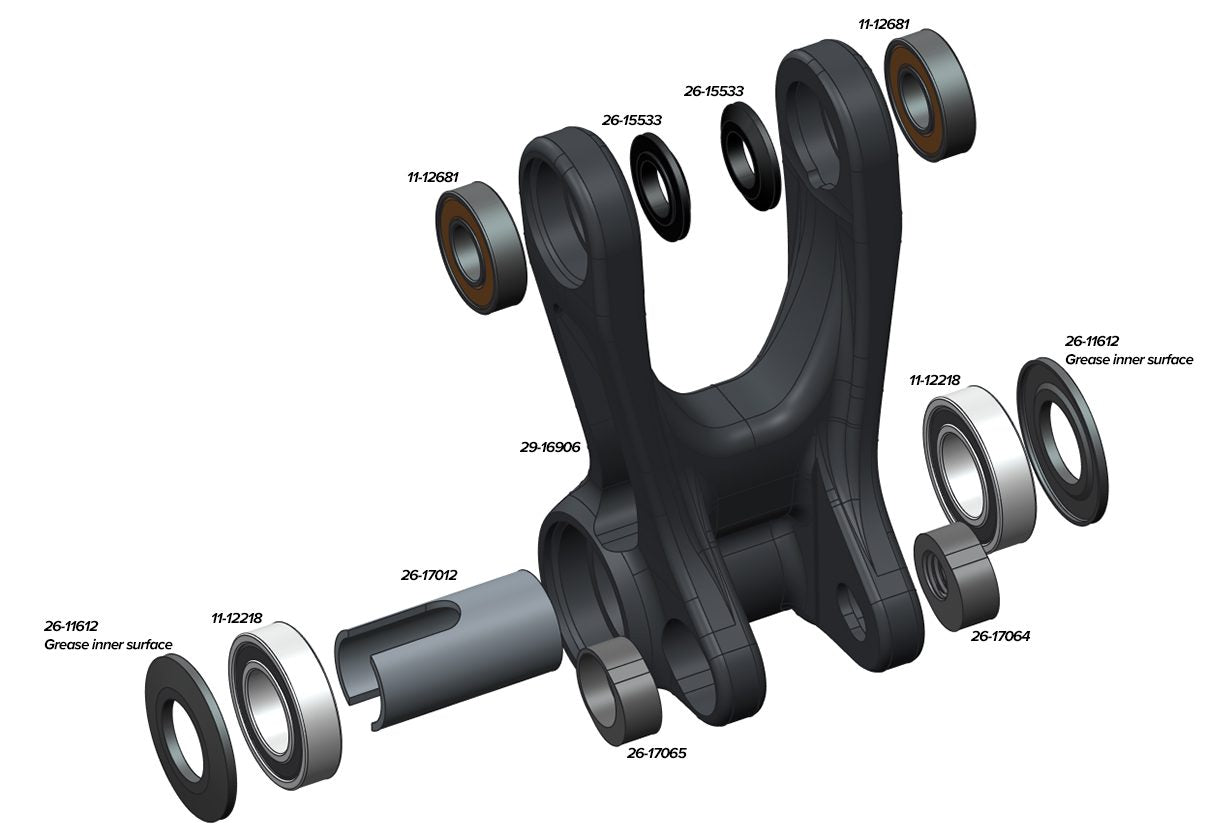

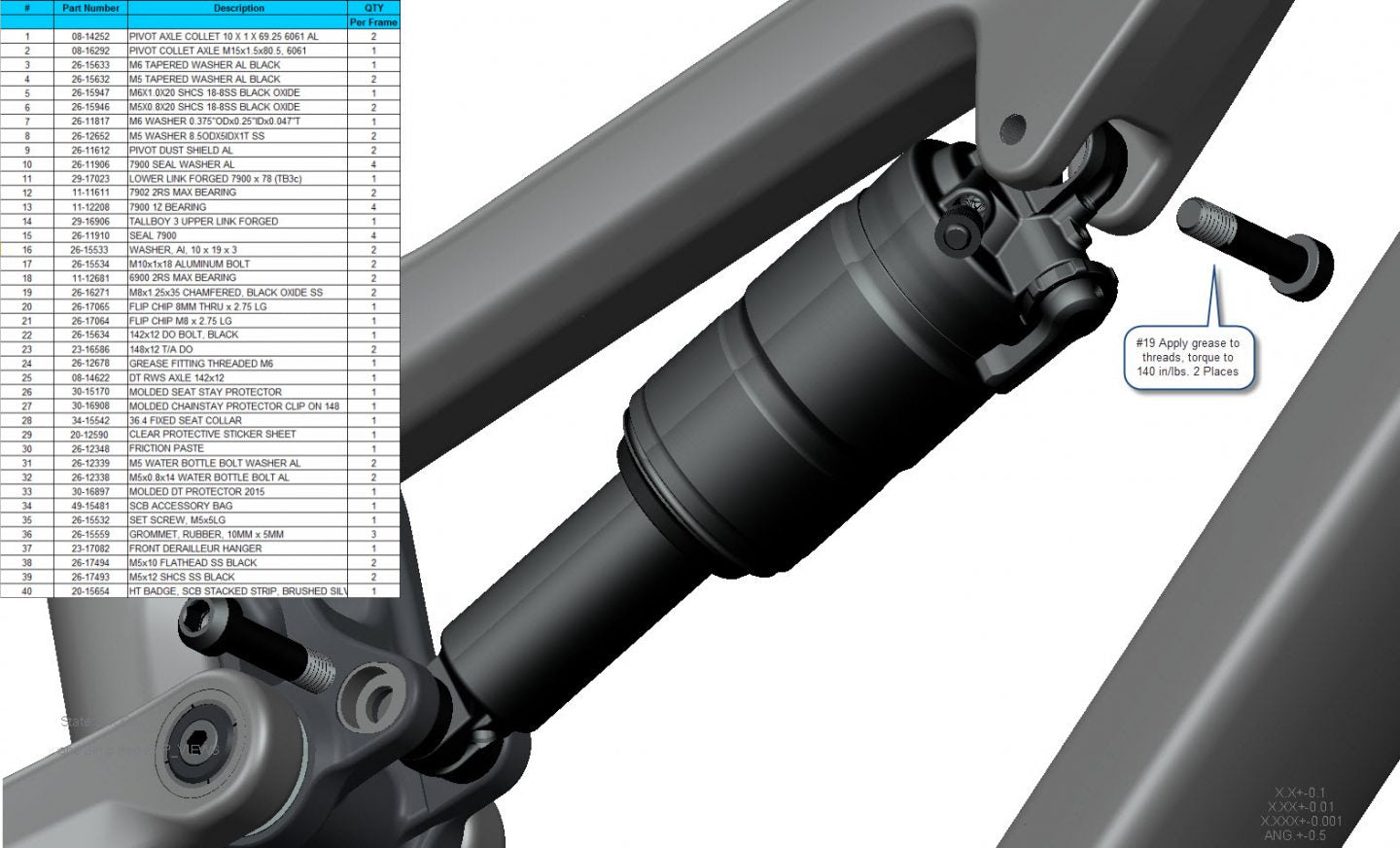

Explosionszeichnungen

Dateien

Wenn Du mehr Informationen zu Deinem Bike suchst, findest Du sie im Santa Cruz Bicycles-Benutzerhandbuch.
