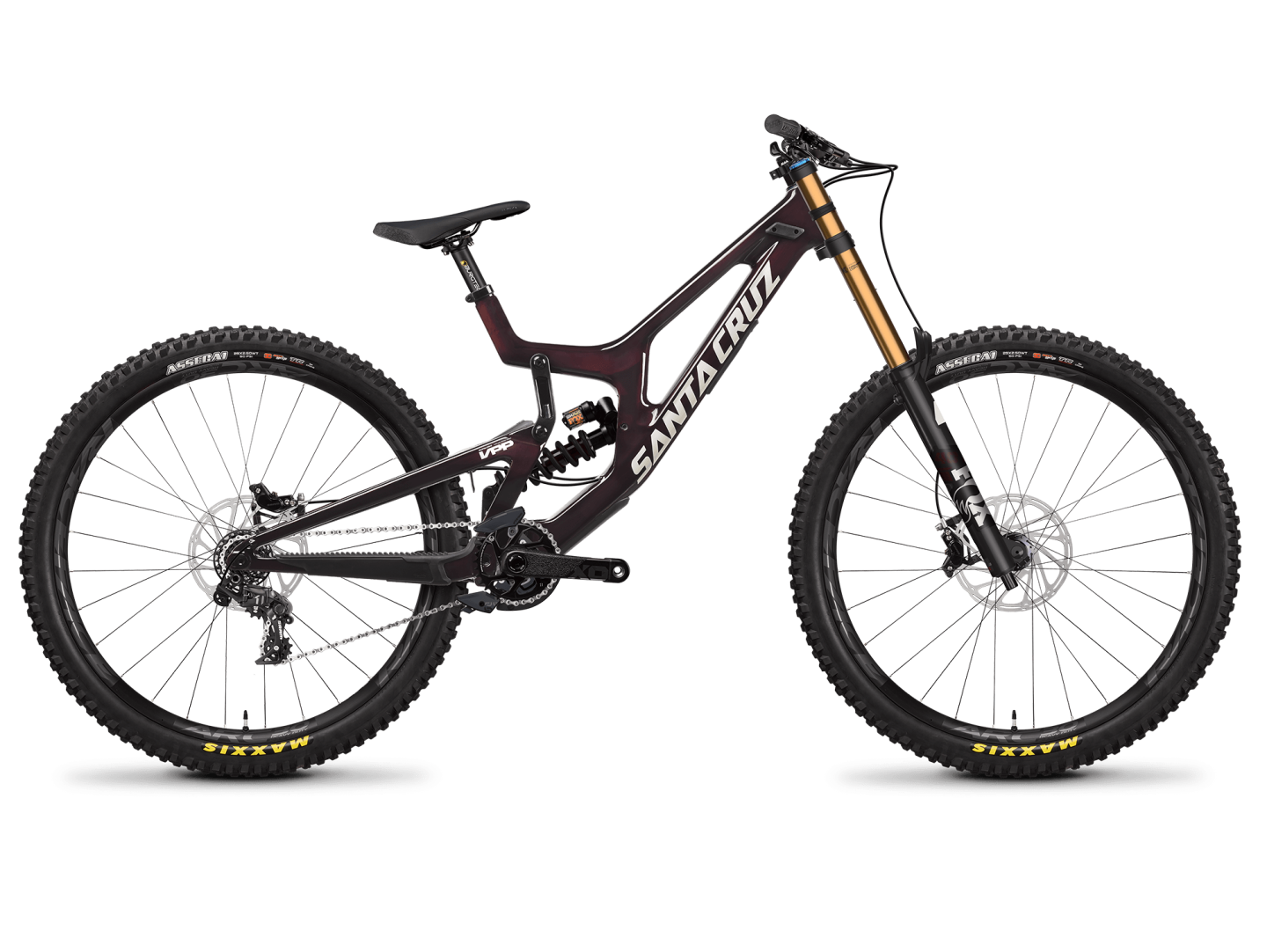

V10 7 Carbon 29

Model Version 7 Carbon 29"
Production Start 2018
Production End -
Suspension/Pivot System VPP - Virtual Pivot Point
Material Carbon Fiber
Rear Wheel Travel 215mm
Size Range M, L

Model Specs

Compatible Forks 203mm
Headtube/Headset ZS49 upper/ EC49 lower
Seat Post 31.6mm - Minimum Insertion 100mm
Front Derailleur N/A - Single Front Chainring Only
BB Shell Width 83mm - Threaded - ISO
Chainline Spec 55mm
Recommended Max Tire Size 2.5 - may vary by tire and rim model
Max Brake Rotor Size 203mm
Rear Hub 157mm x 12mm Through Axle
Seatpost Clamp 36.4mm

Shock Specs

Rear Shock Eye-to-Eye 250mm
Stroke 75mm
Mounting Bushing Width Front 25x8
Mounting Bushing Width Rear 30x8

Geometry

Shock Position
All units are in millimeters or degrees.
m l xl
A. Reach 437 462 492
B. Stack 632 637 641
Head tube angle 63.7° 63.7° 63.7°
L. Seat Tube Length 445 455 465
F. Front Center 806 833 865
H. BB Height 356 356 356
I. BB Drop 16 16 16
E. Wheelbase 1251 1278 1315
G. Rear Center 445 445 450
K. Head Tube Length 100 105 110
J. Standover Height 718 719 719
m l xl
A. Reach 435 460 490
B. Stack 631 635 640
Head tube angle 63.3° 63.3° 63.3°
L. Seat Tube Length 445 455 465
F. Front Center 806 833 865
H. BB Height 351 351 351
I. BB Drop 21 21 21
E. Wheelbase 1252 1279 1316
G. Rear Center 445 445 450
K. Head Tube Length 100 105 110
J. Standover Height 713 714 714

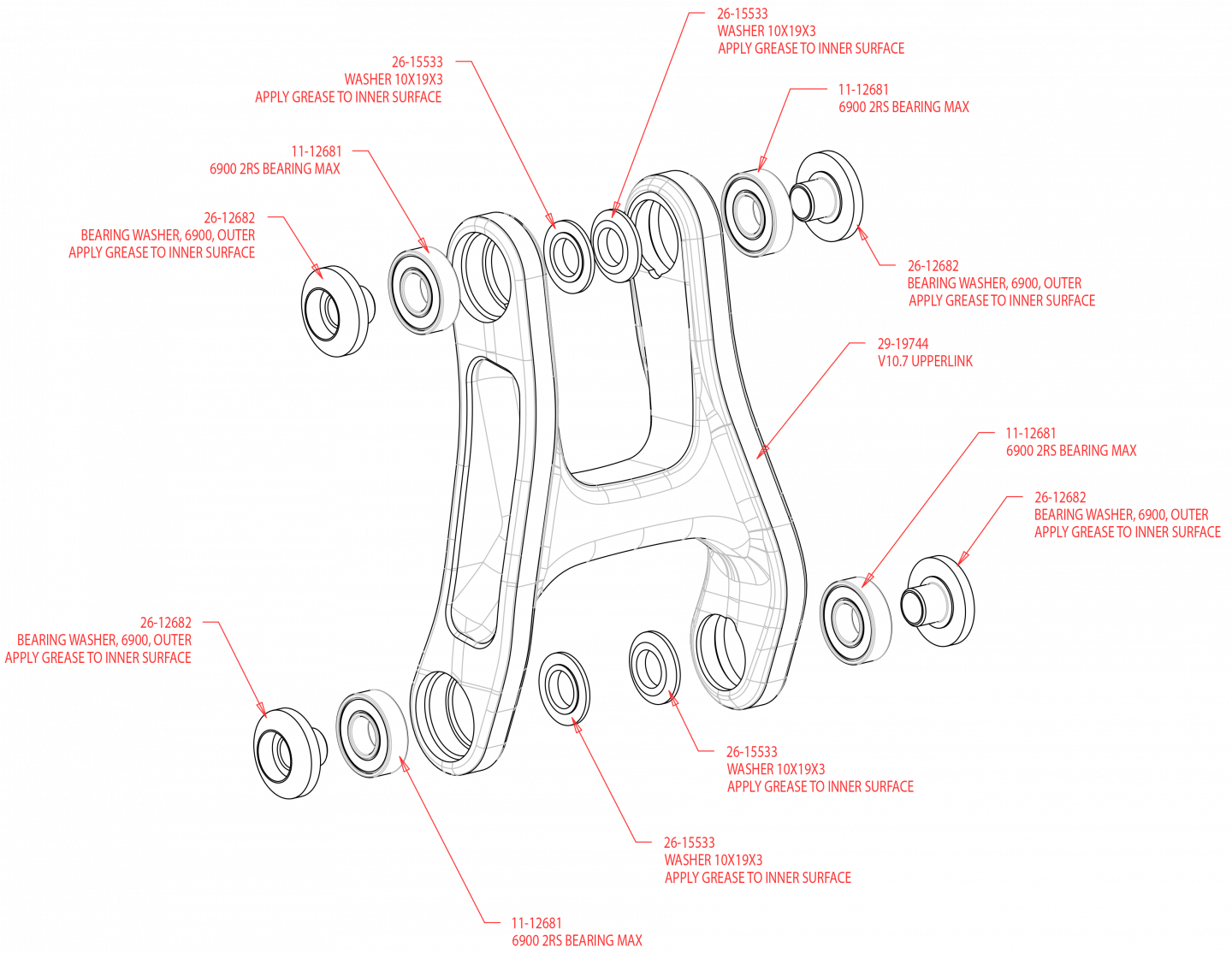

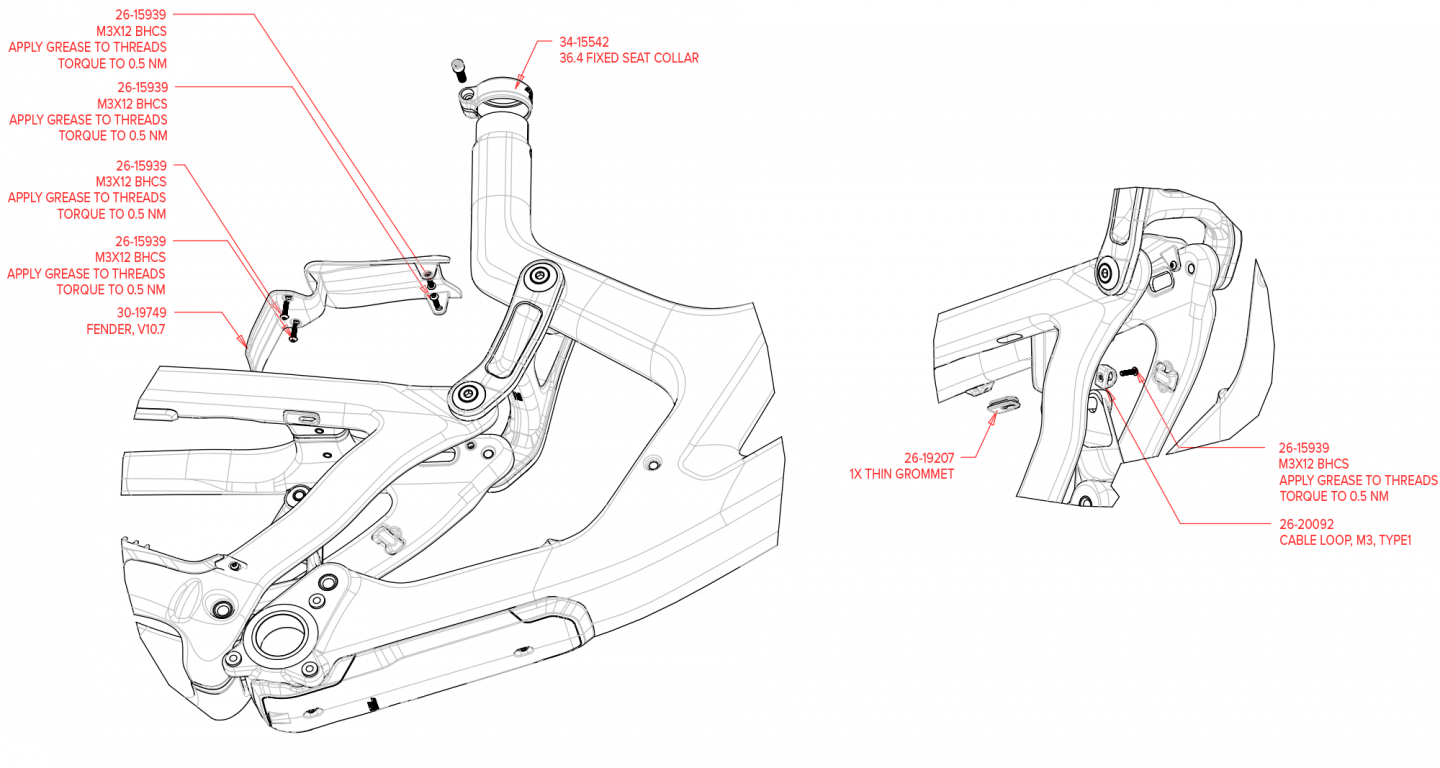

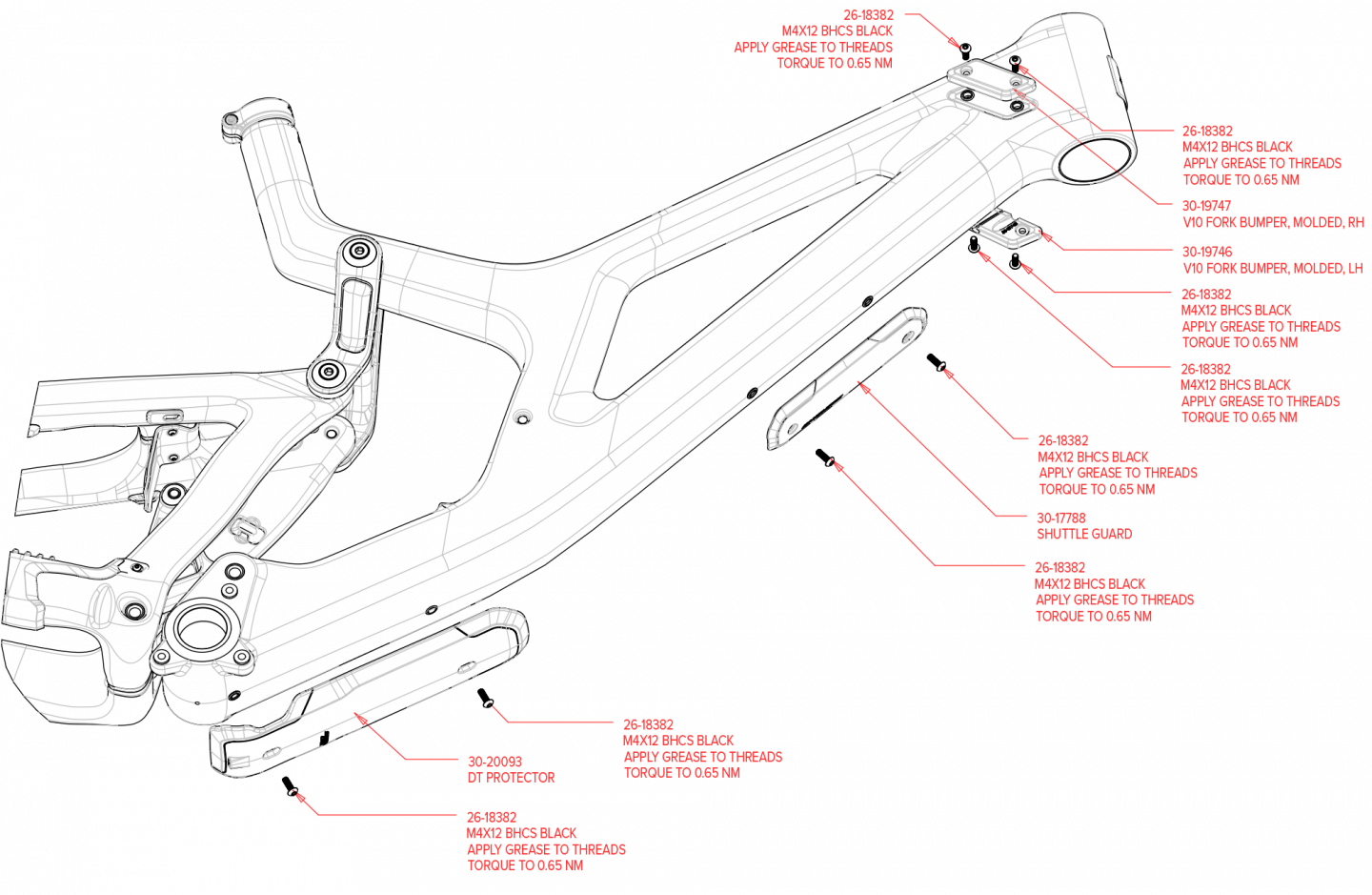

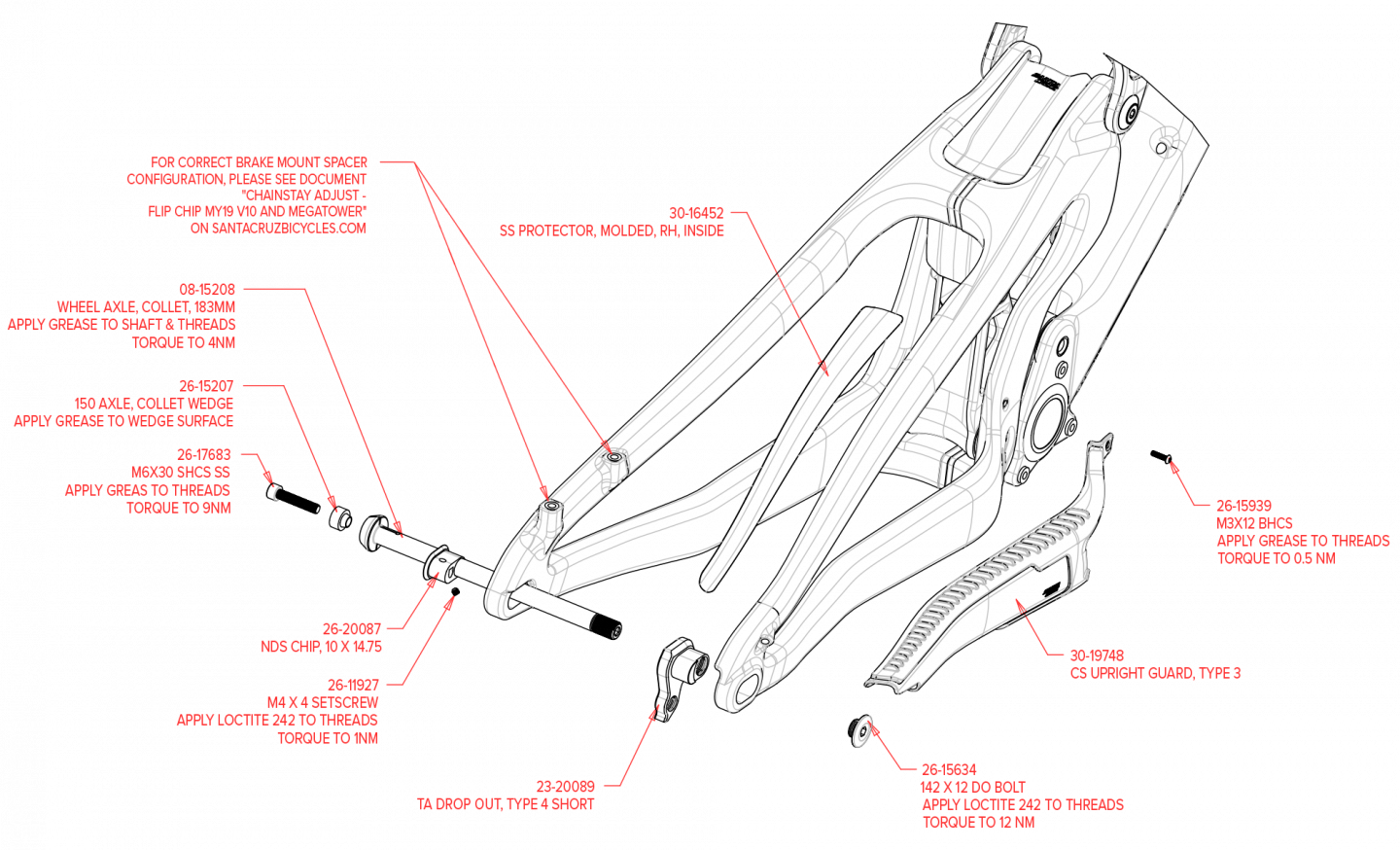

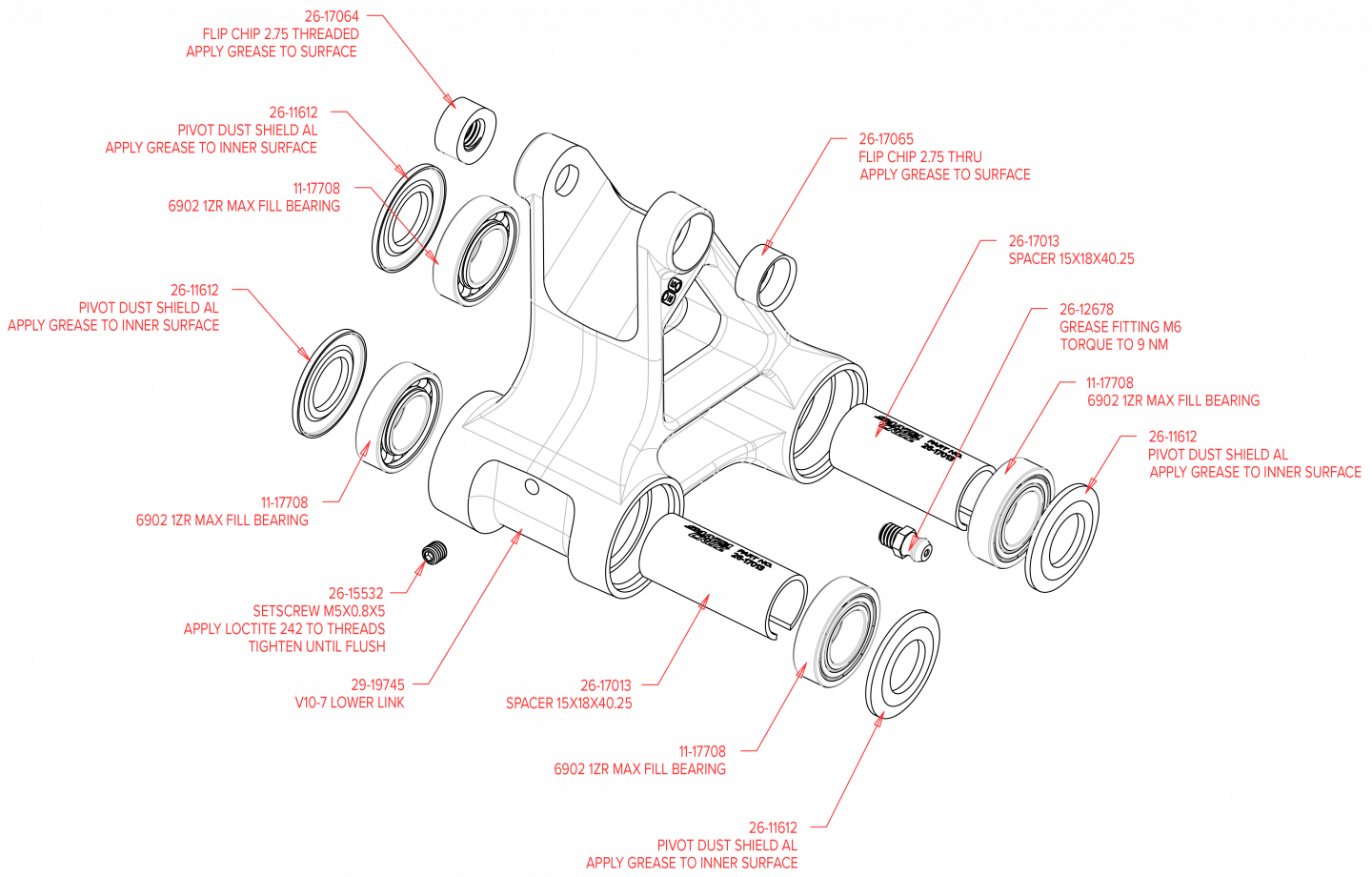

Exploded Diagrams

Files

If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
