Stigmata Hero

Stigmata 2

2015 - 2019

Model Version 2
Production Start 2015
Production End 2019
Suspension/Pivot System N/A (Hardtail)
Material Carbon Fiber
Size Range 52, 54, 56, 58, 60
Compra parti di ricambio

Specifiche

Compatible Forks 395mm Axle to Crown length. 48mm Offset
Headtube/Headset Tapered - Integrated Headset. 1-1/8" Upper bearing and 1.5" Lower bearing. S.H.I.S. IS 41/28.6 IS 52/40
Seat Post 27.2mm - Minimum insertion 100mm
Front Derailleur See Component Notes
BB Shell Width PressFit 30
Recommended Max Tire Size 35mm with mud clearance
Brakes Disc Brake - ISO
Max Brake Rotor Size 180mm
Rear Hub 142mm x 12mm Through-Axle
Seatpost Clamp 31.8mm
Component Notes Stigmata 2Front Derailleur:  Frameset and complete bike come with proprietary front derailleur adapter mount (Part # 26-16274) for use with Braze-on style bottom pull front derailleurs.Maximum Recommended Tire Size:  35mm with mud clearance, 40mm without.

Geometria

Tutte le unità sono espresse in millimetri o gradi.
s m l xl xxl
Reach 379mm 383mm 388mm 392mm 408mm
Stack 545mm 566mm 582mm 598mm 613mm
Head tube angle 71° 71.5° 72° 72.5° 72.5°
Seat Tube Length 530mm 545mm 560mm 570mm 590mm
Front Center
BB Height
BB Drop 69mm 69mm 69mm 69mm 69mm
Wheelbase 1013mm 1019mm 1024mm 1029mm 1049mm
Rear Center 425mm 425mm 425mm 425mm 425mm
Head Tube Length 125mm 145mm 160mm 175mm 190mm
Top Tube Length 530mm 545mm 560mm 575mm 595mm
Seat Tube Angle 74.5° 74° 73.5° 73° 73°
Standover Height 770mm 786mm 794mm 802mm 819mm
Eye to eye length
Seatpost length
Stem length
Crank length
Stigmata Geometry

Exploded Diagrams

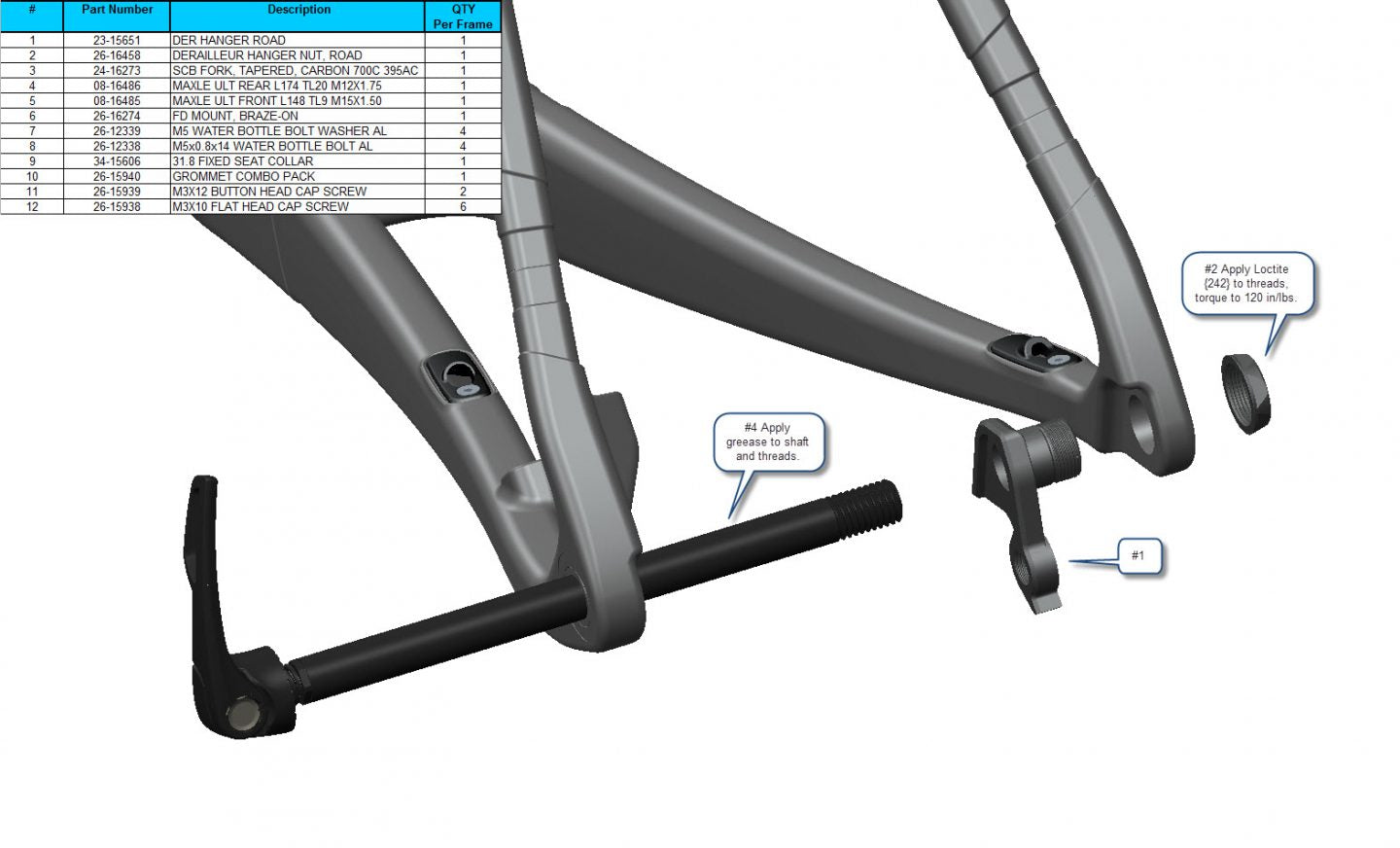

Exploded Diagram of Stigmata

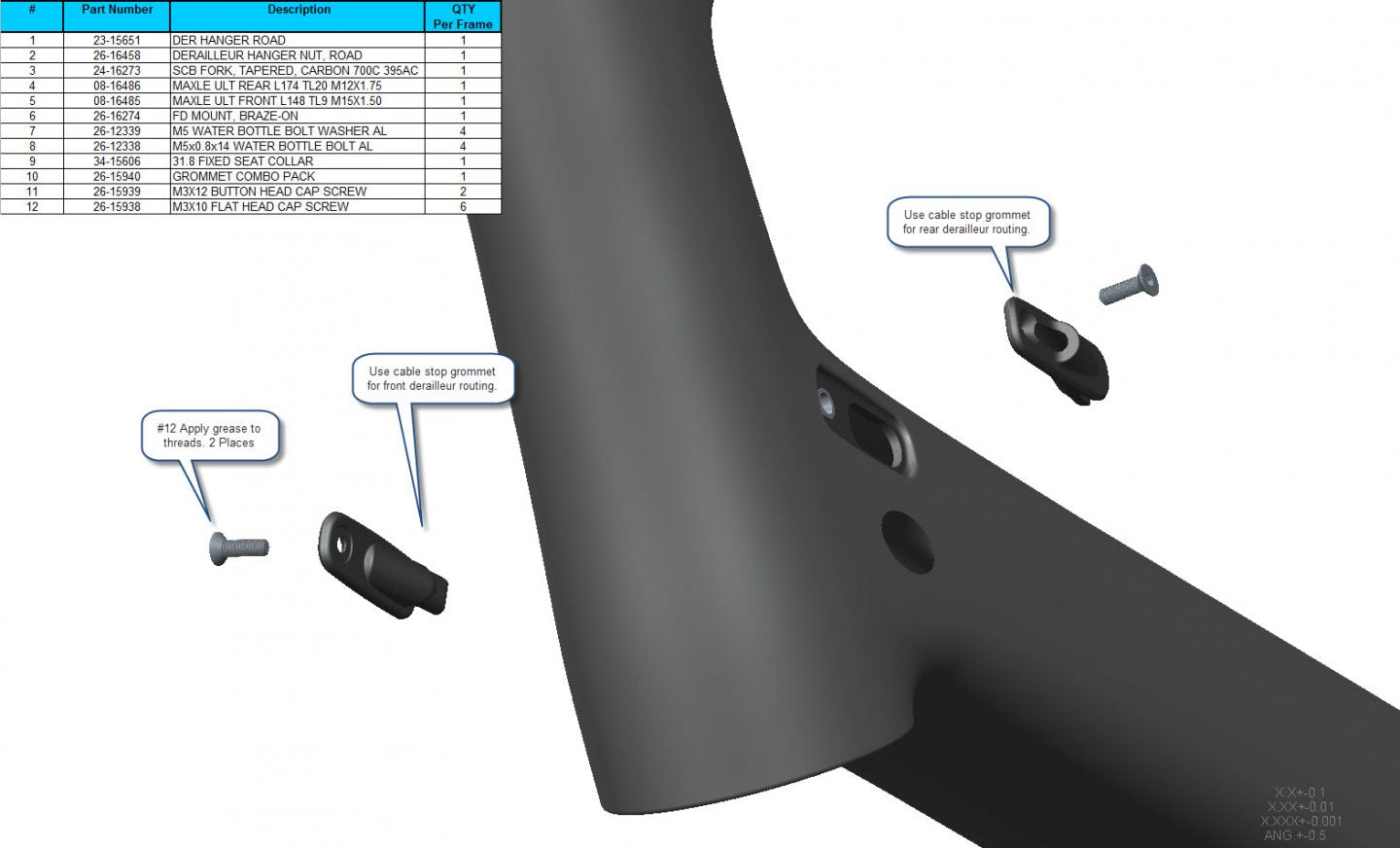

Exploded Diagram of Stigmata

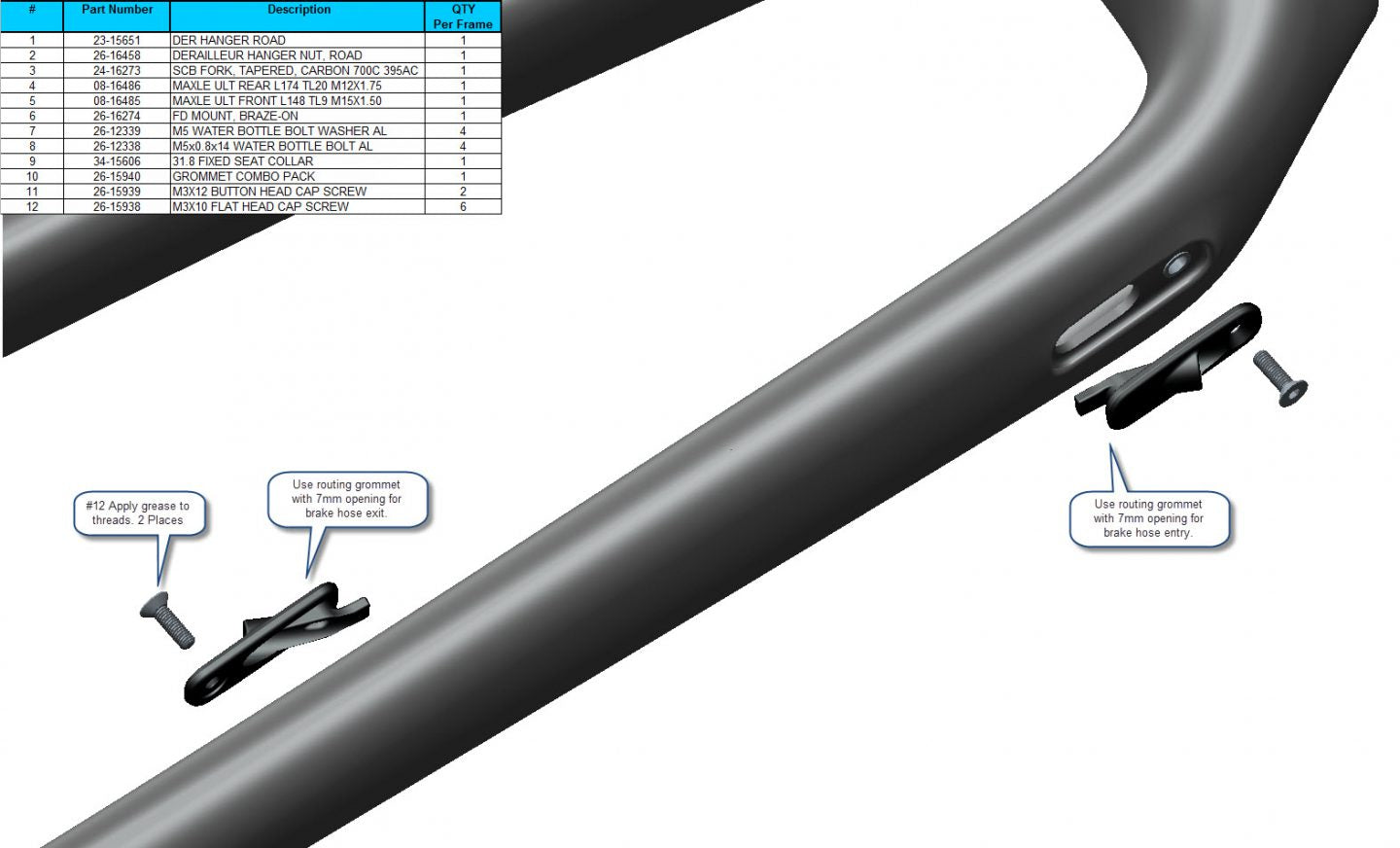

Exploded Diagram of Stigmata

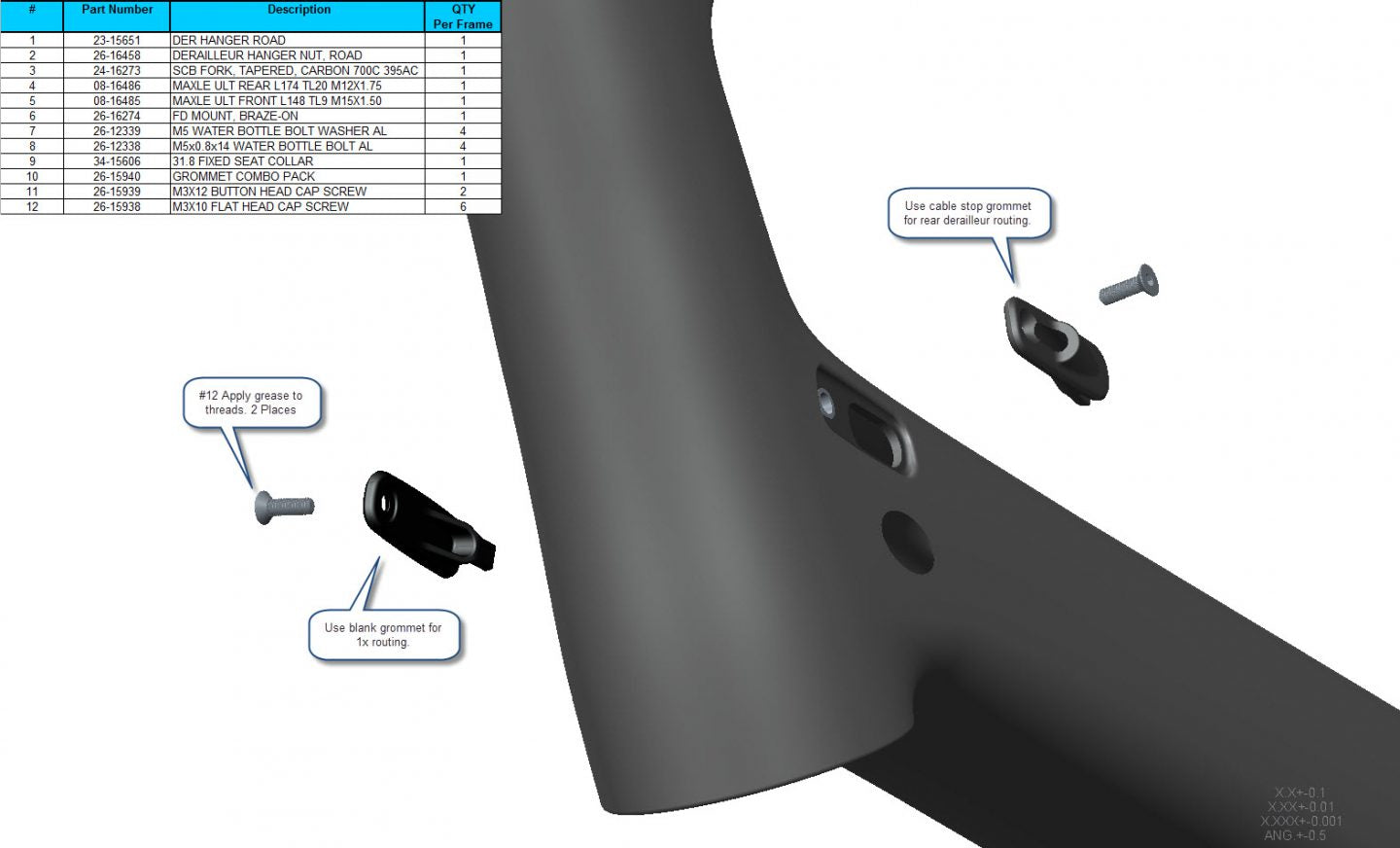

Exploded Diagram of Stigmata

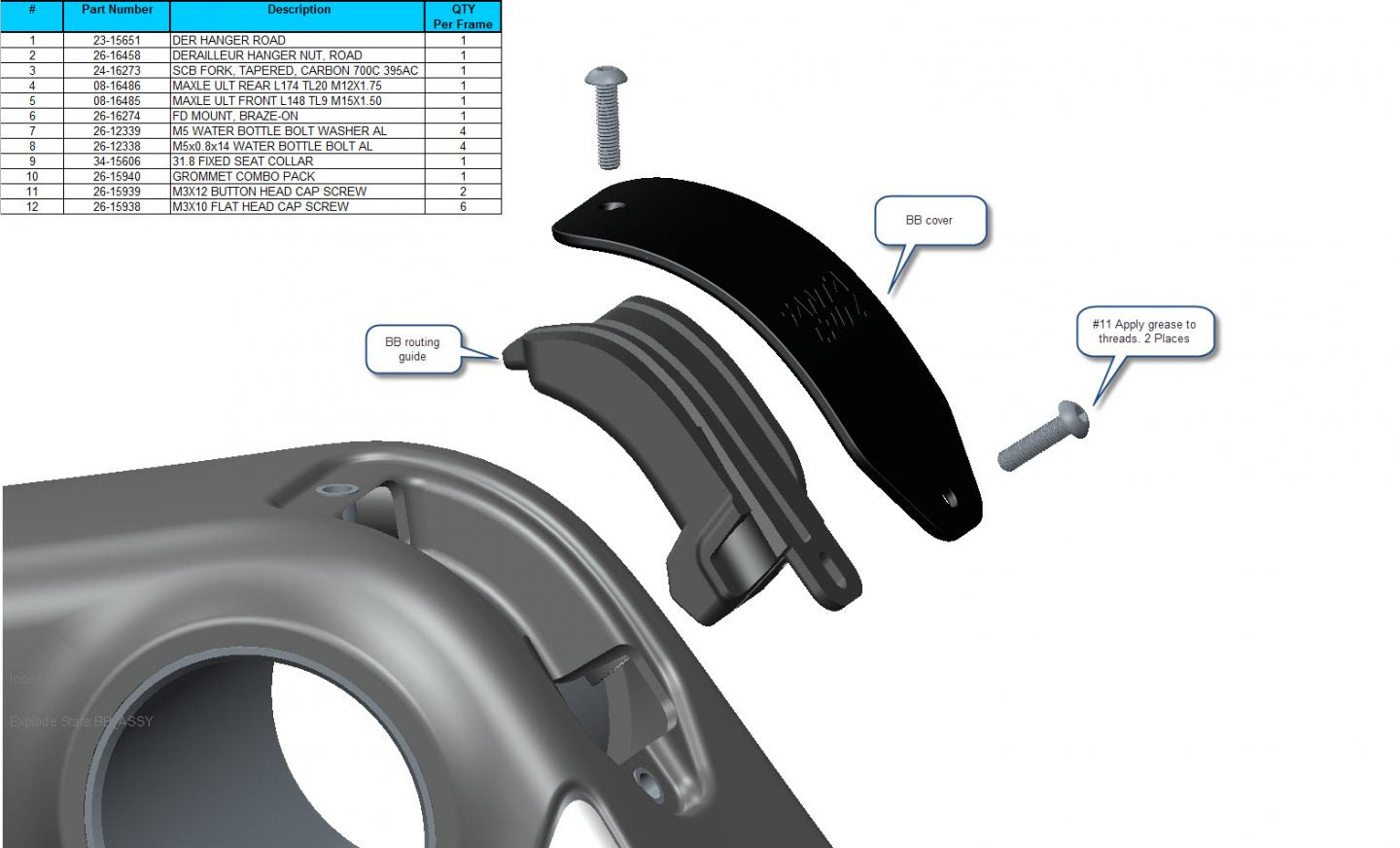

Exploded Diagram of Stigmata

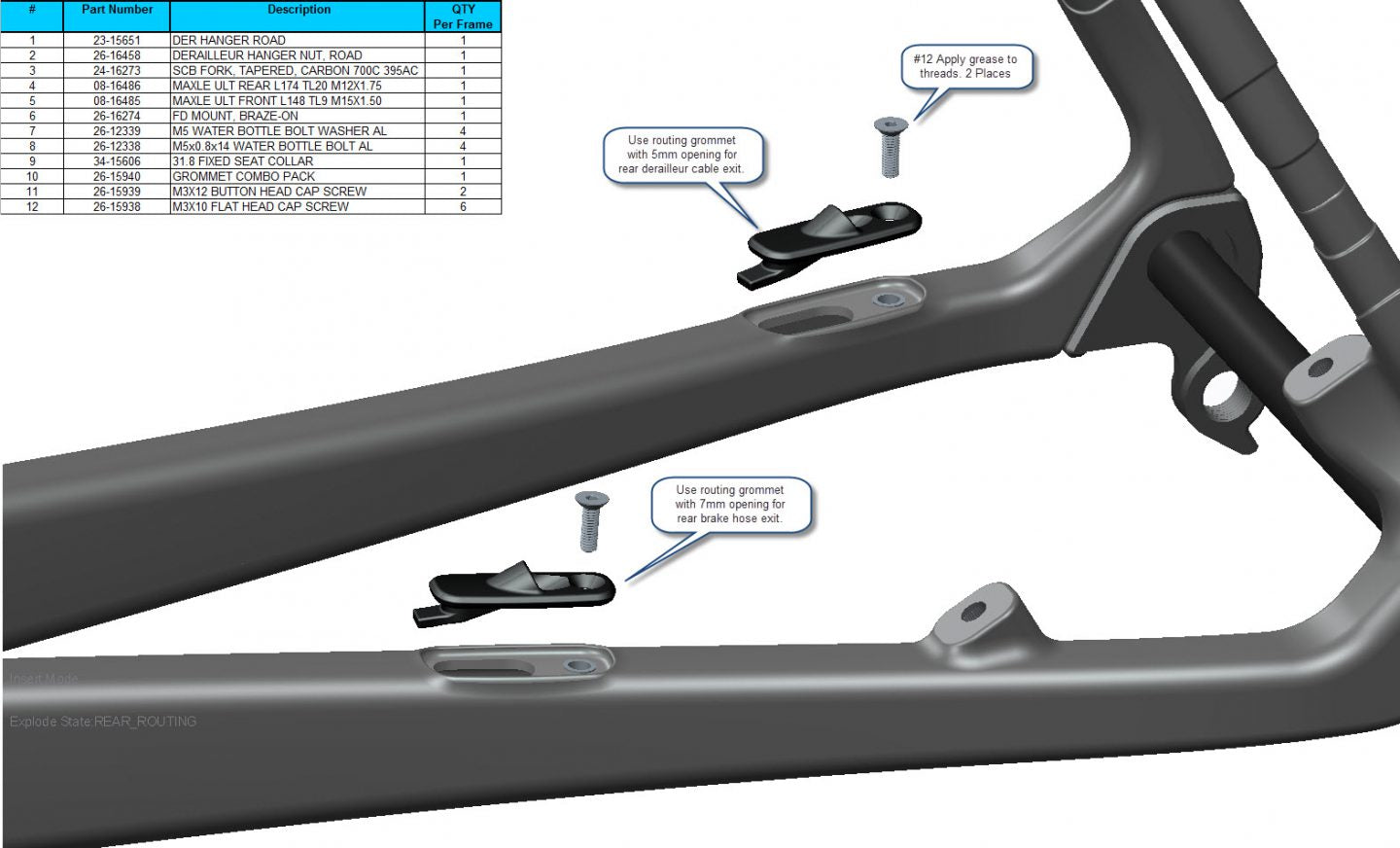

Exploded Diagram of Stigmata

Manuals & Files

Se desideri ulteriori informazioni sulla tua bicicletta, consulta il nostro Santa Cruz Bicycles Owner's Manual
