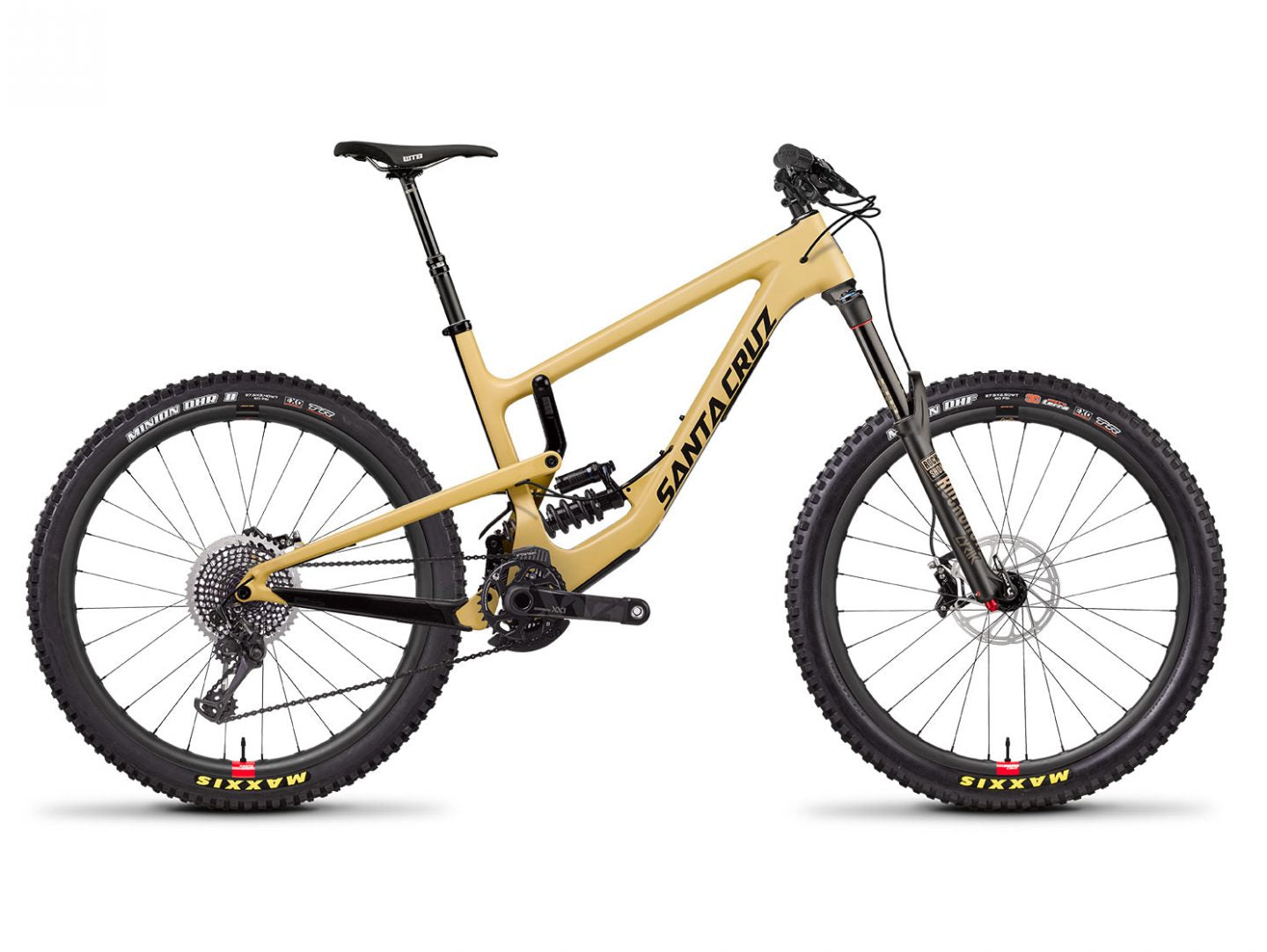

Nomad 4
| Model Version | 4 |
|---|---|
| Production Start | 2017 |
| Production End | 2020 |
| Suspension/Pivot System | VPP - Virtual Pivot Point |
| Material | Carbon Fiber |
| Rear Wheel Travel | 170mm |
| Size Range | XS, S, M, L, XL |
Model Specs
| Compatible Forks | 170 - 180mm |
|---|---|
| Headtube/Headset | Tapered - Integrated Headset. 1-1/8" Upper bearing and 1.5" Lower bearing. S.H.I.S. IS 41/28.6 IS 52/40 |
| Seat Post | 31.6mm - Minimum Insertion 100mm |
| BB Shell Width | 73mm - Threaded - ISO |
| Chainline Spec | 53mm |
| Recommended Max Tire Size | 2.5 - may vary by tire and rim model |
| Brakes | Disc Brake - ISO |
| Max Brake Rotor Size | 203mm |
| Rear Hub | 148x12mm Through Axle |
| Seatpost Clamp | 36.4mm |
Shock Specs
| Rear Shock Eye-to-Eye | 230mm |
|---|---|
| Stroke | 60mm |
| Mounting Bushing Width Front | 20mm |
| Mounting Bushing Width Rear | 30mm |
| Mounting Bolt Diameter Front | M8 |
| Mounting Bolt Diameter Rear | M8 |
| Rear Shock Setup | nomad4shocksetup.jpg |

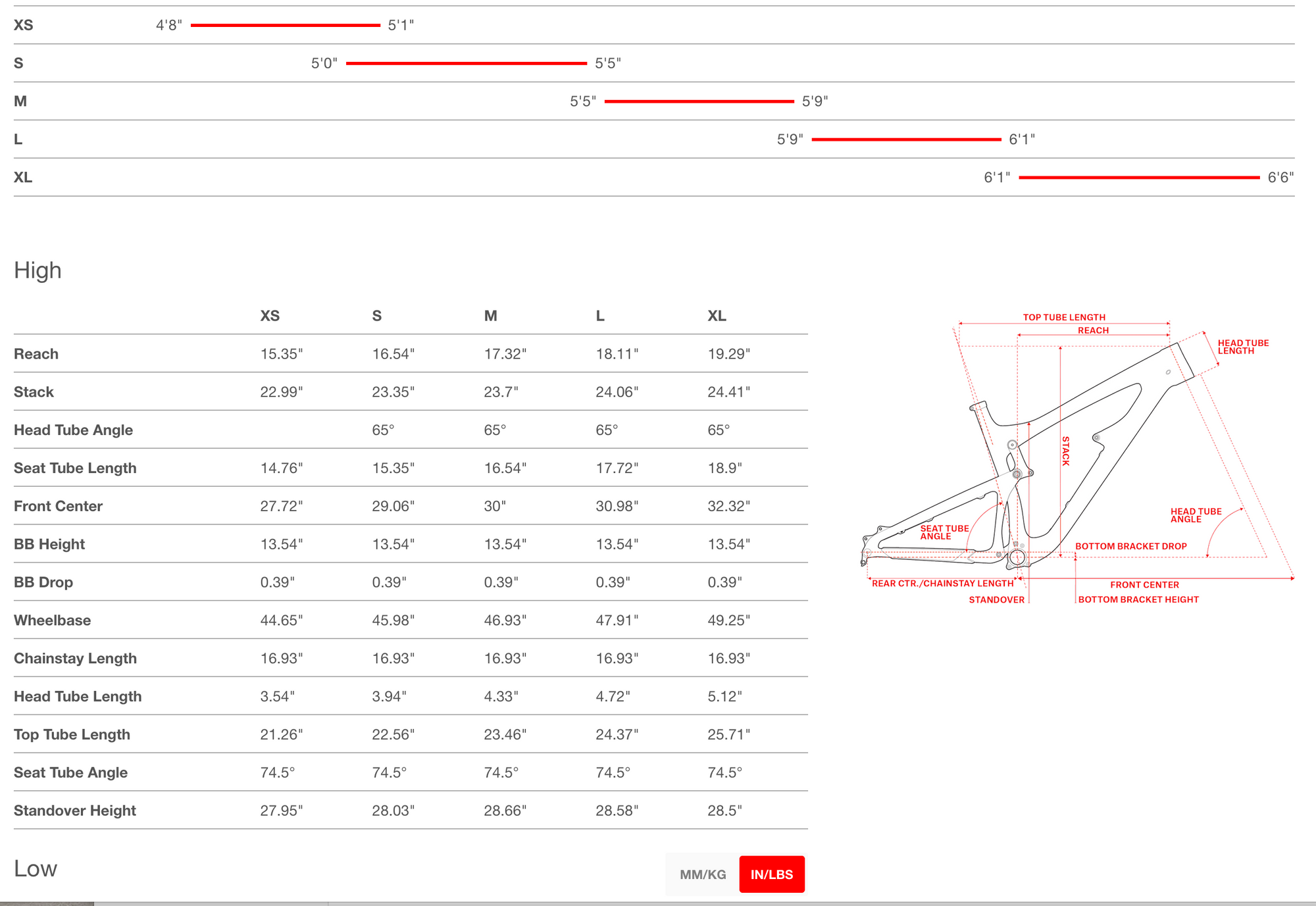

Geometry
Suspension Setup

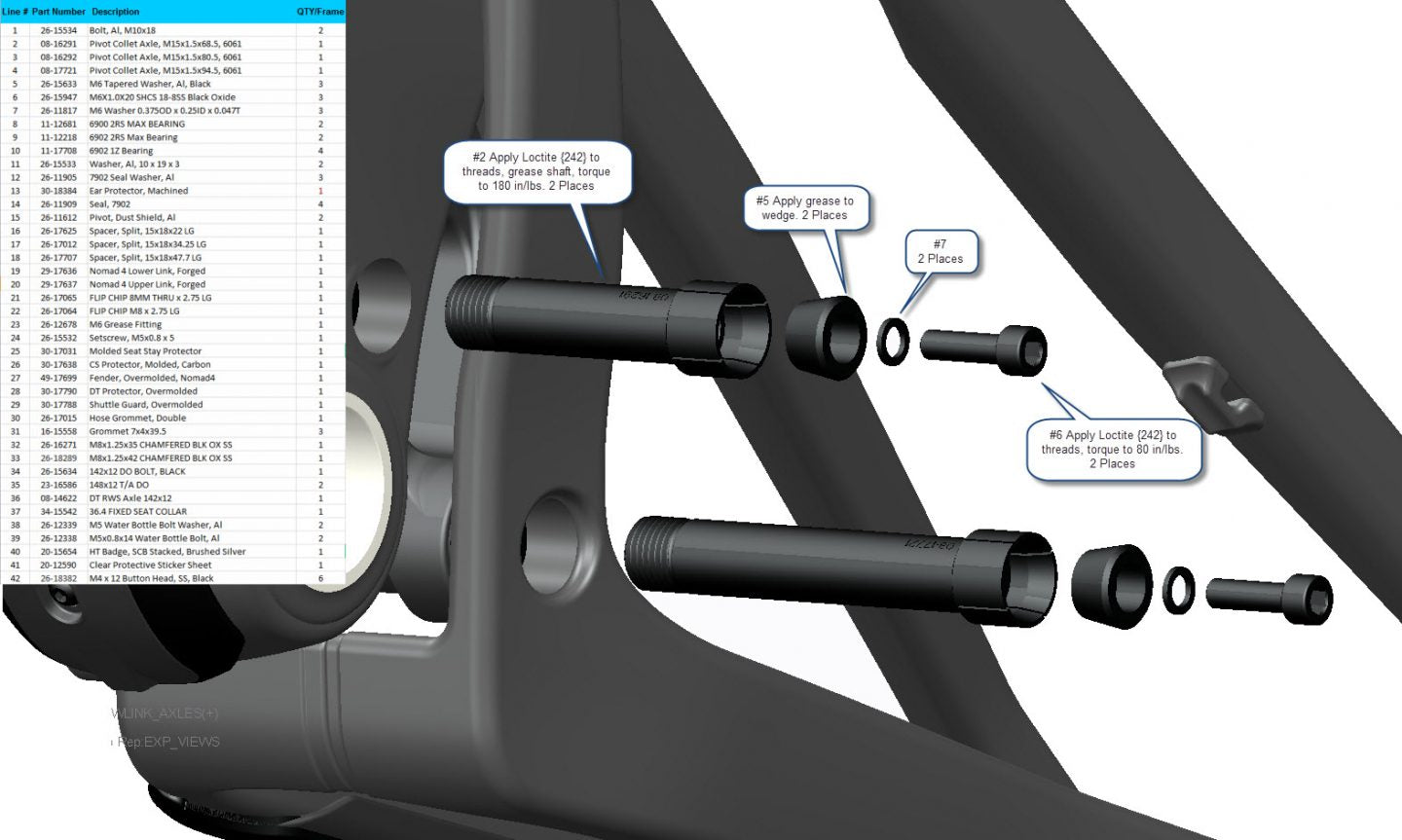

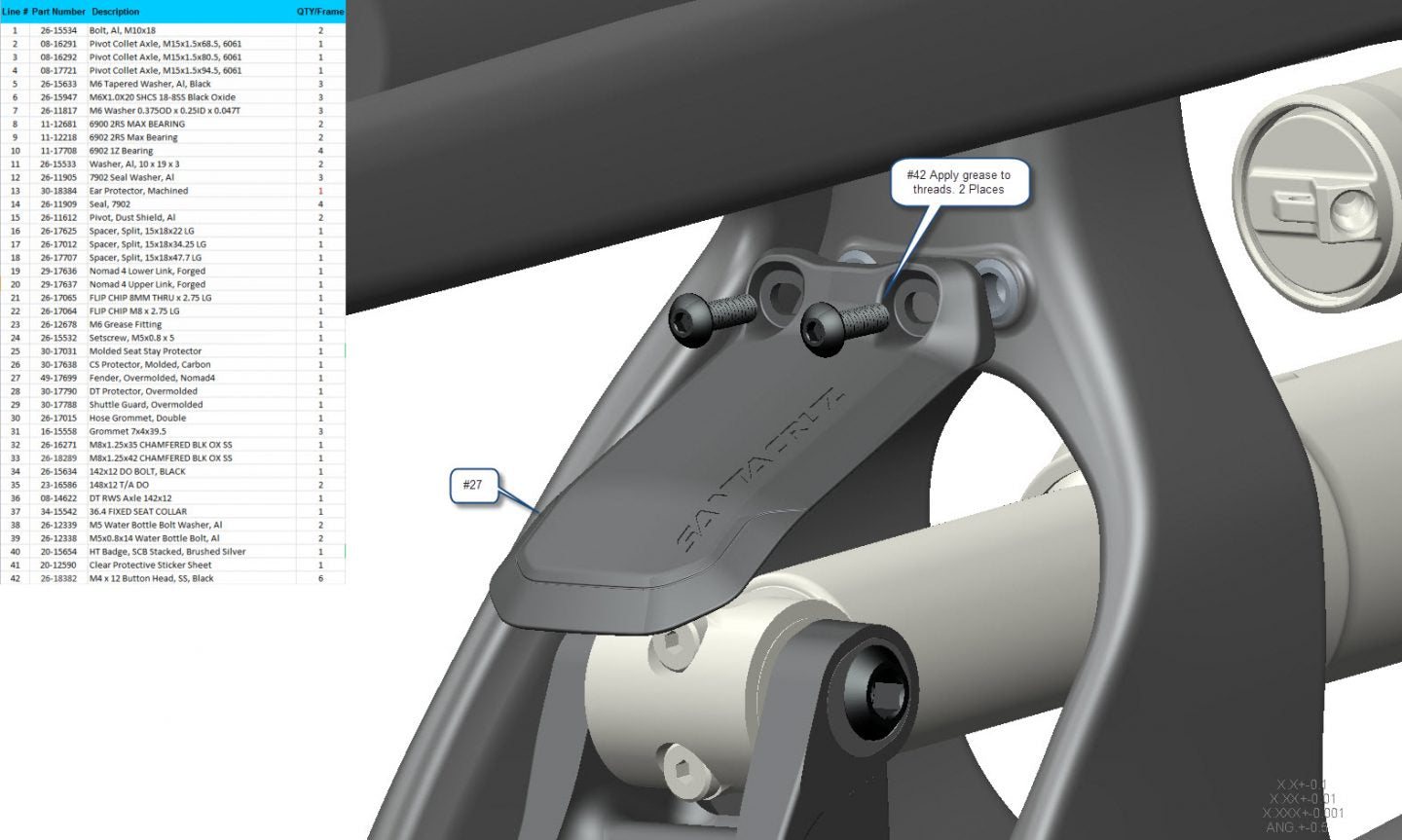

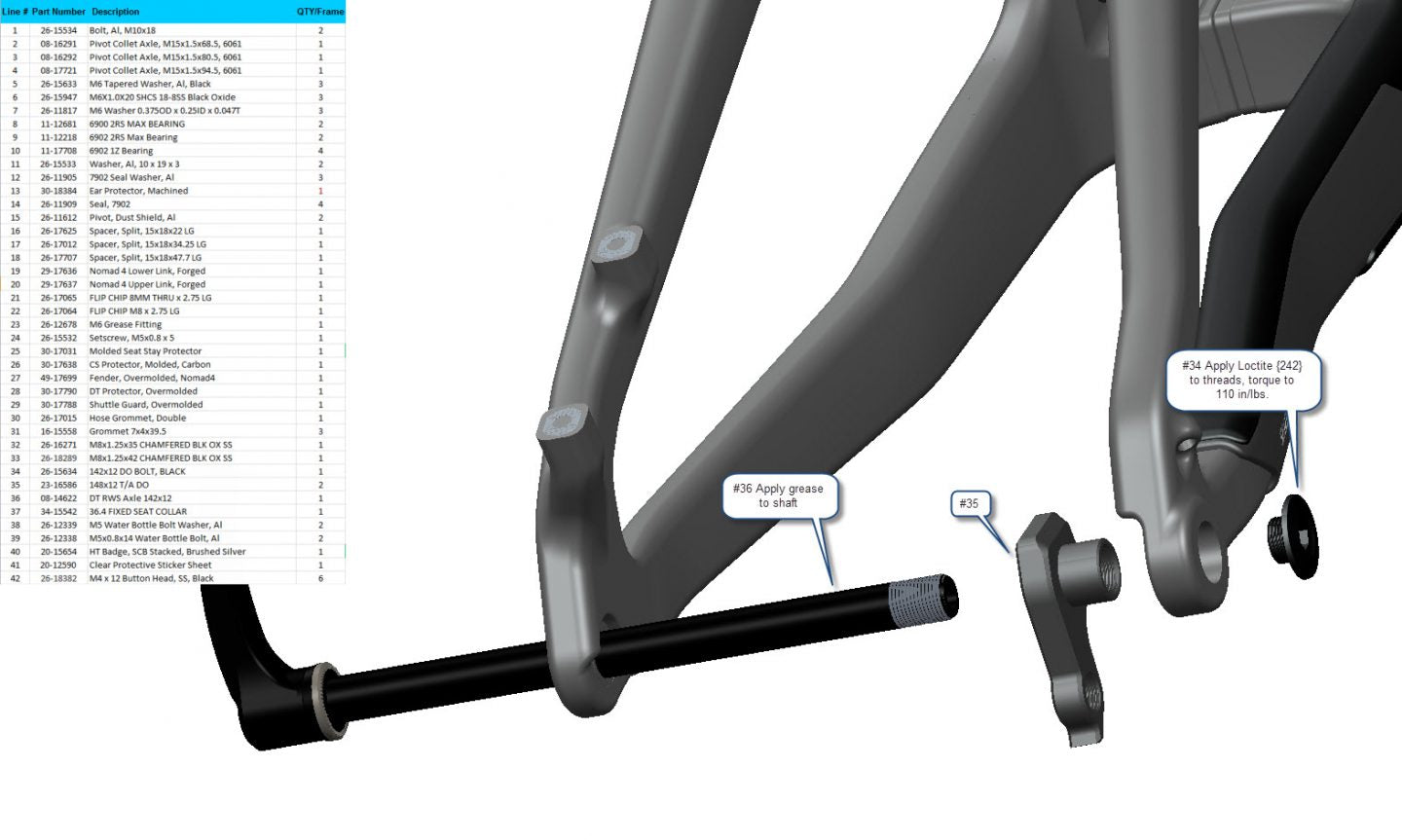

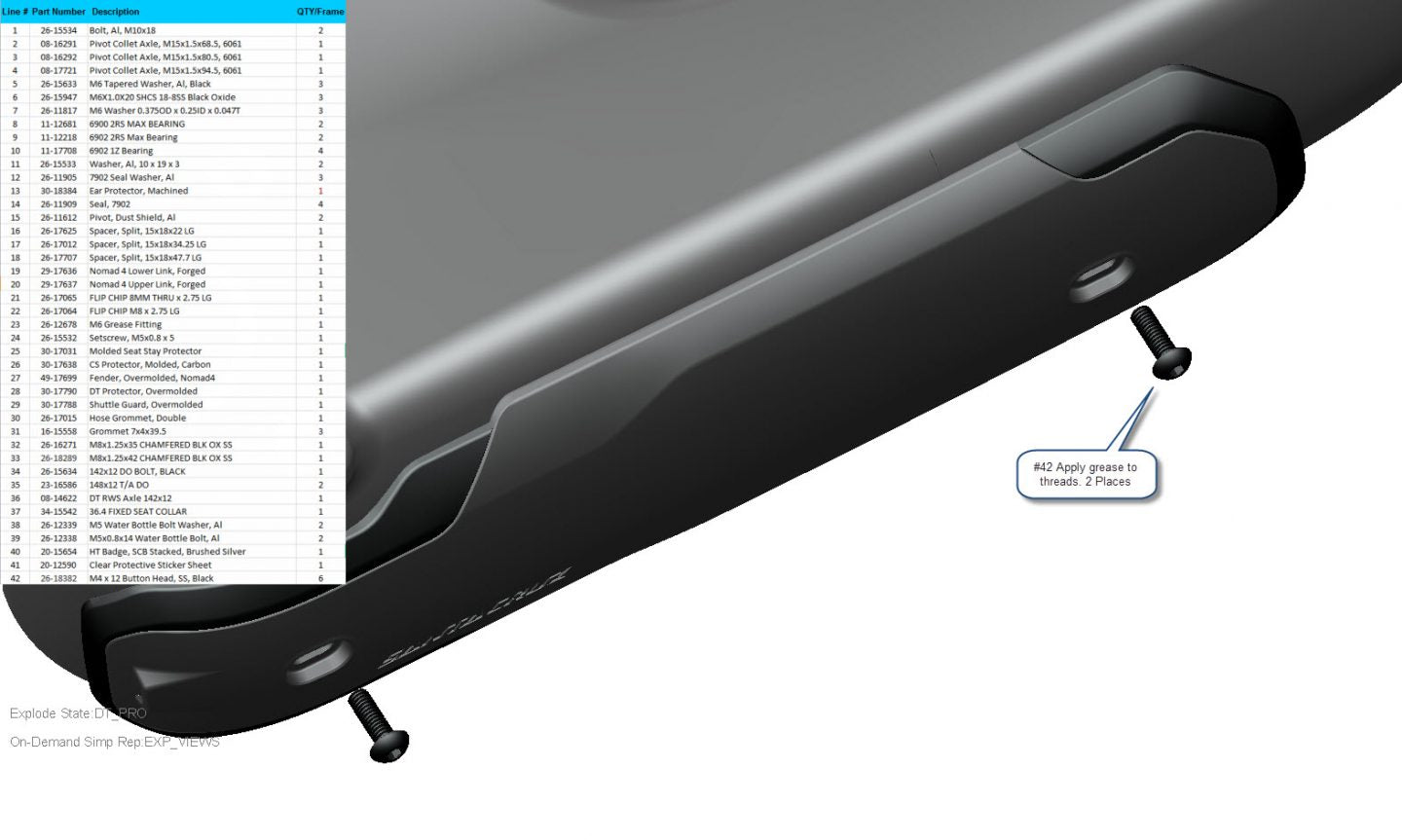

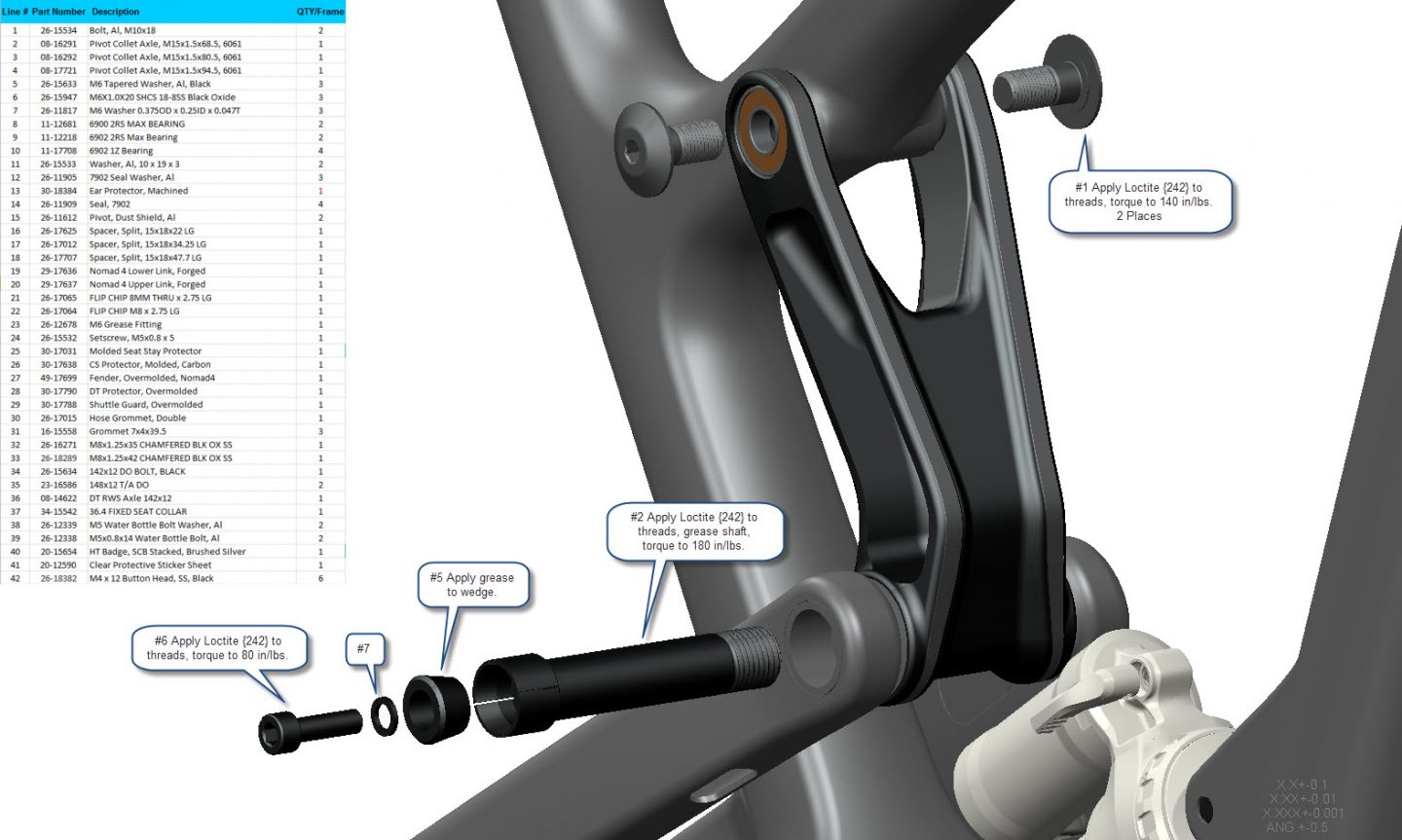

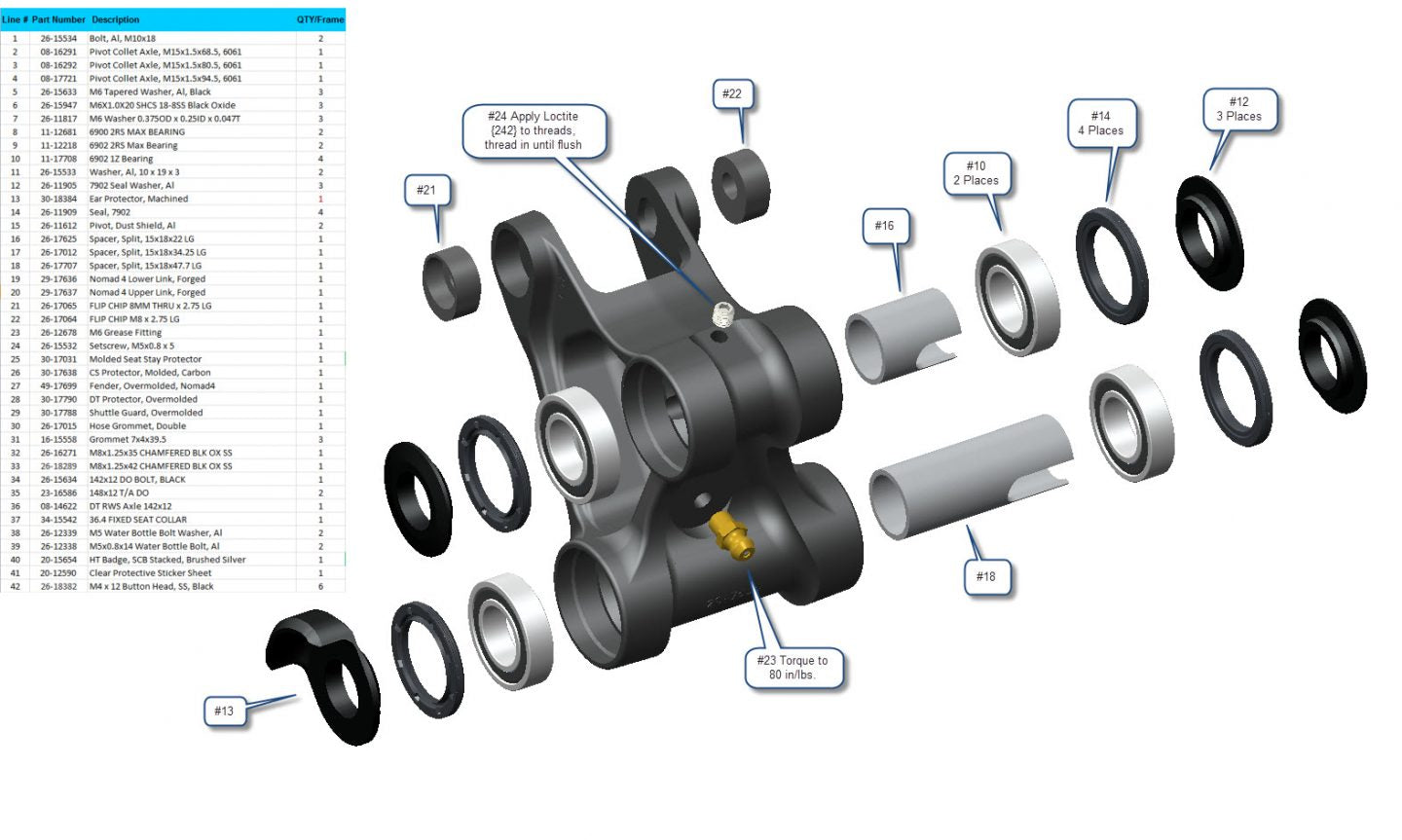

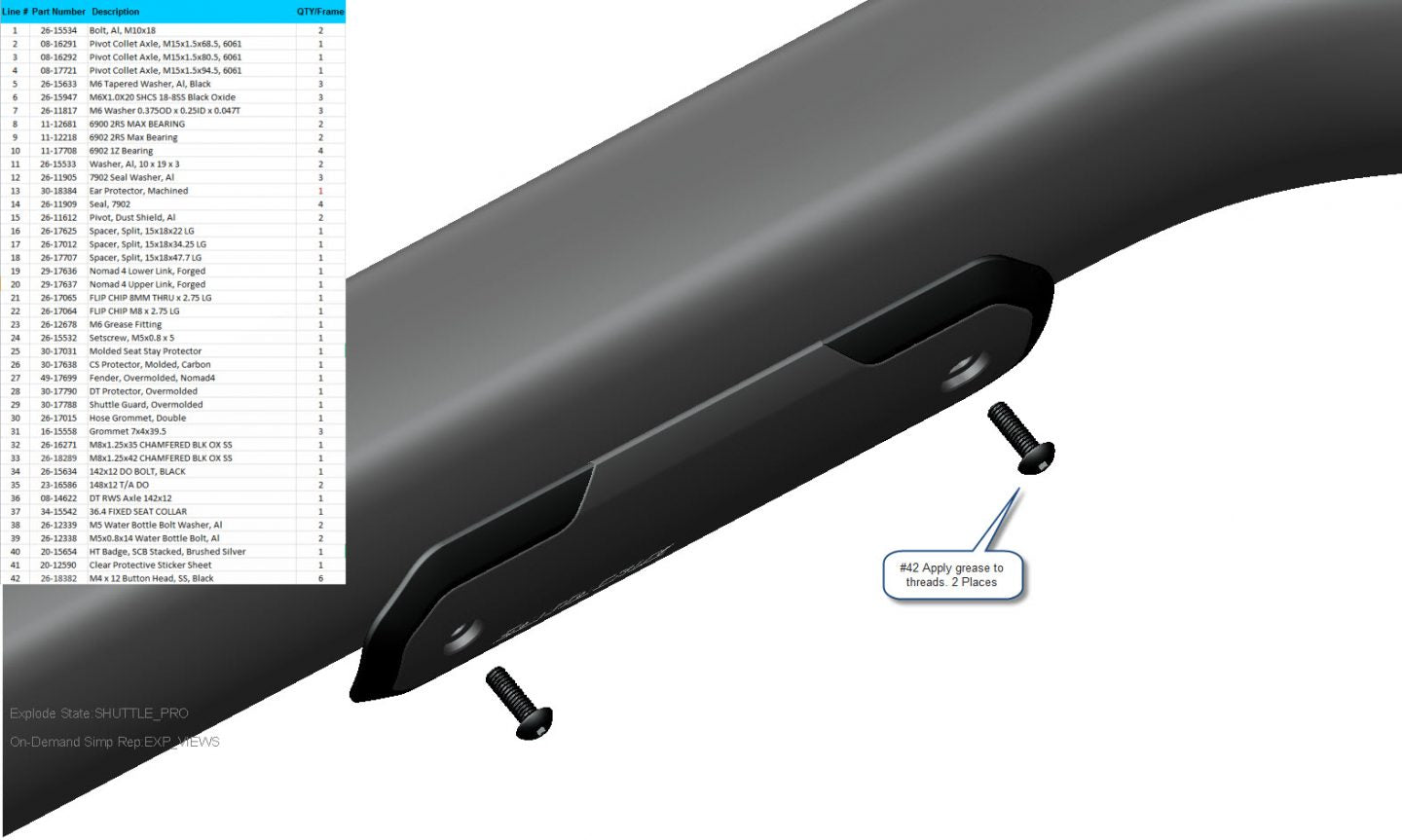

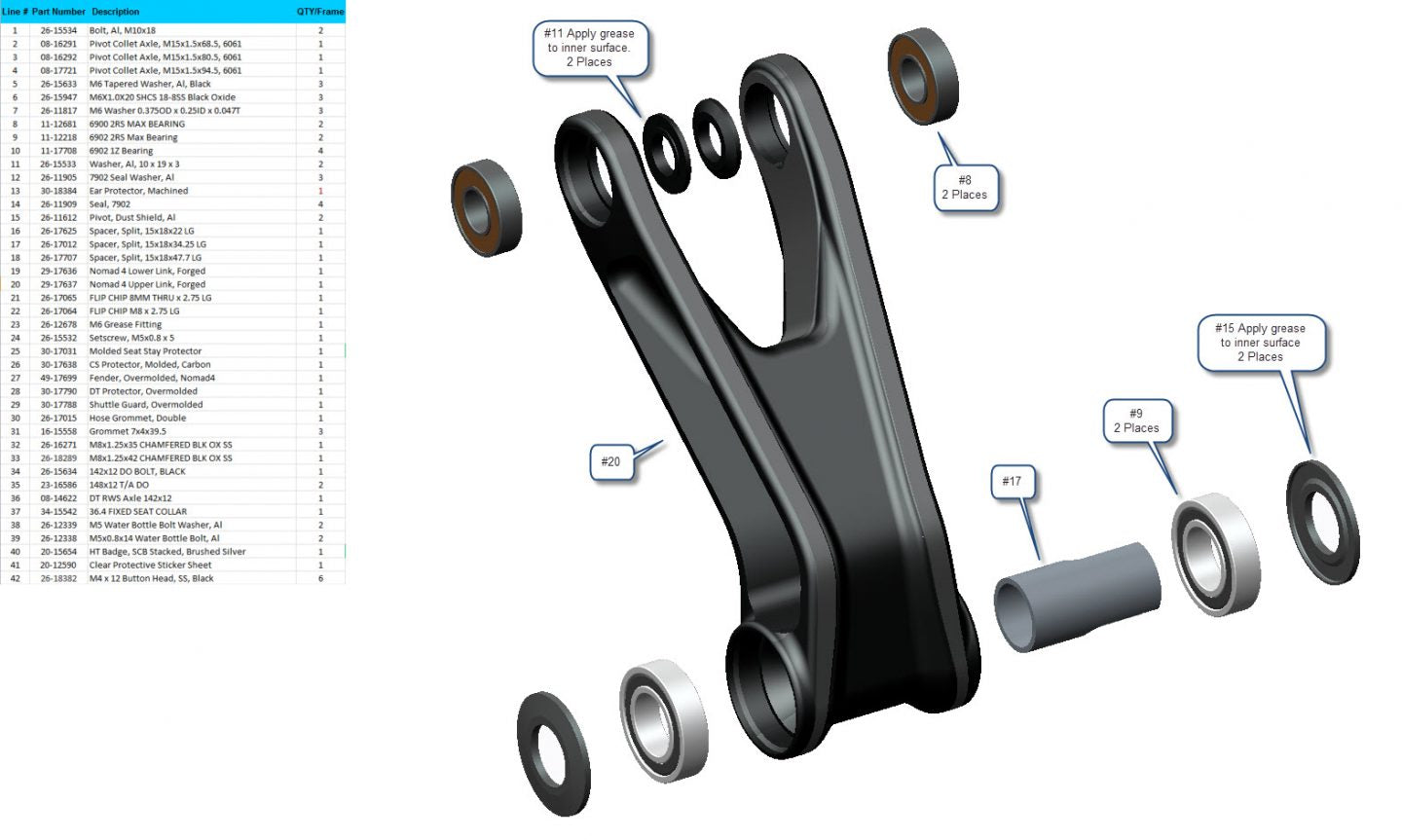

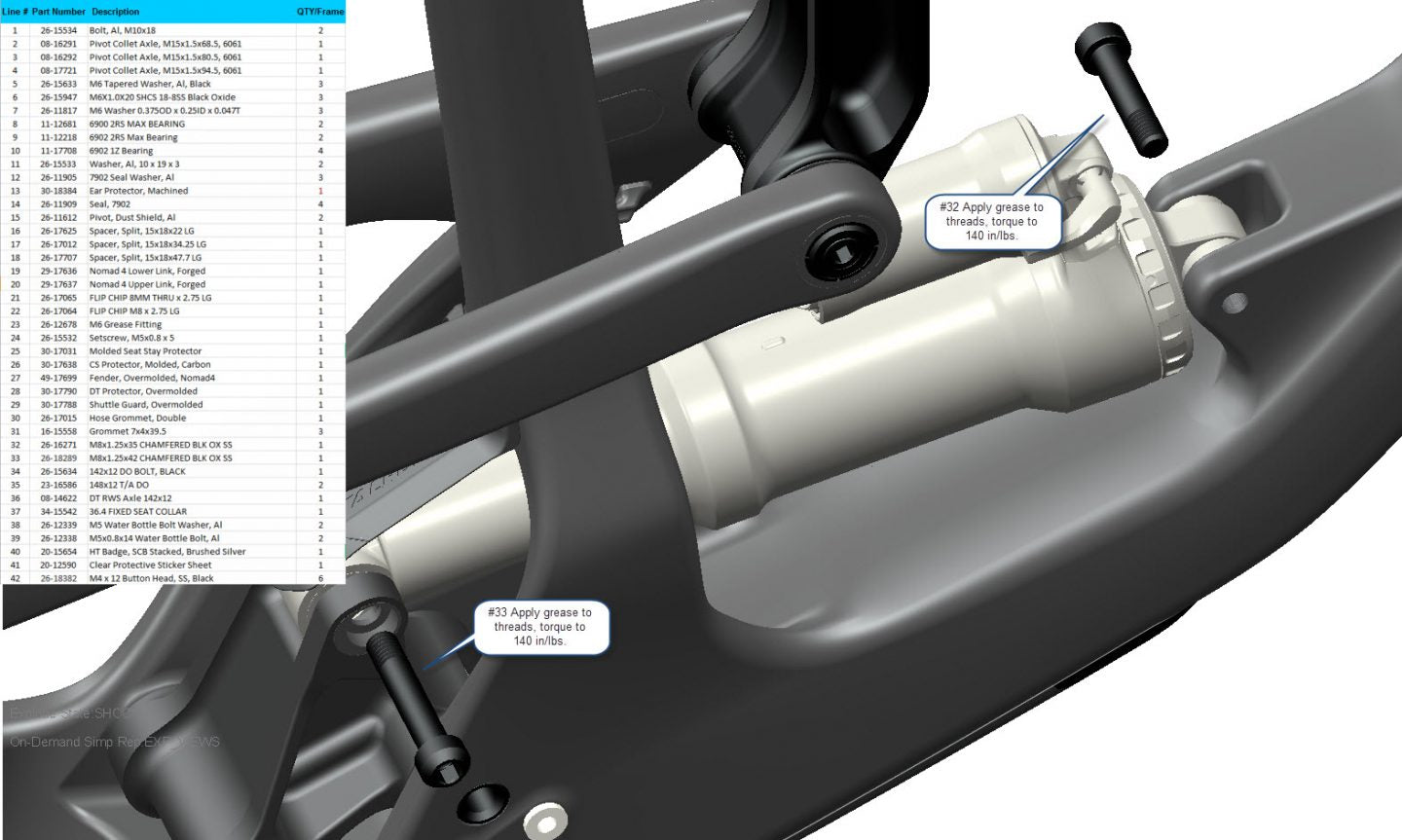

Exploded Diagrams
Caricamento
Caricamento
Caricamento
Caricamento
Caricamento
Caricamento
Caricamento
Caricamento
Caricamento
Files
If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
