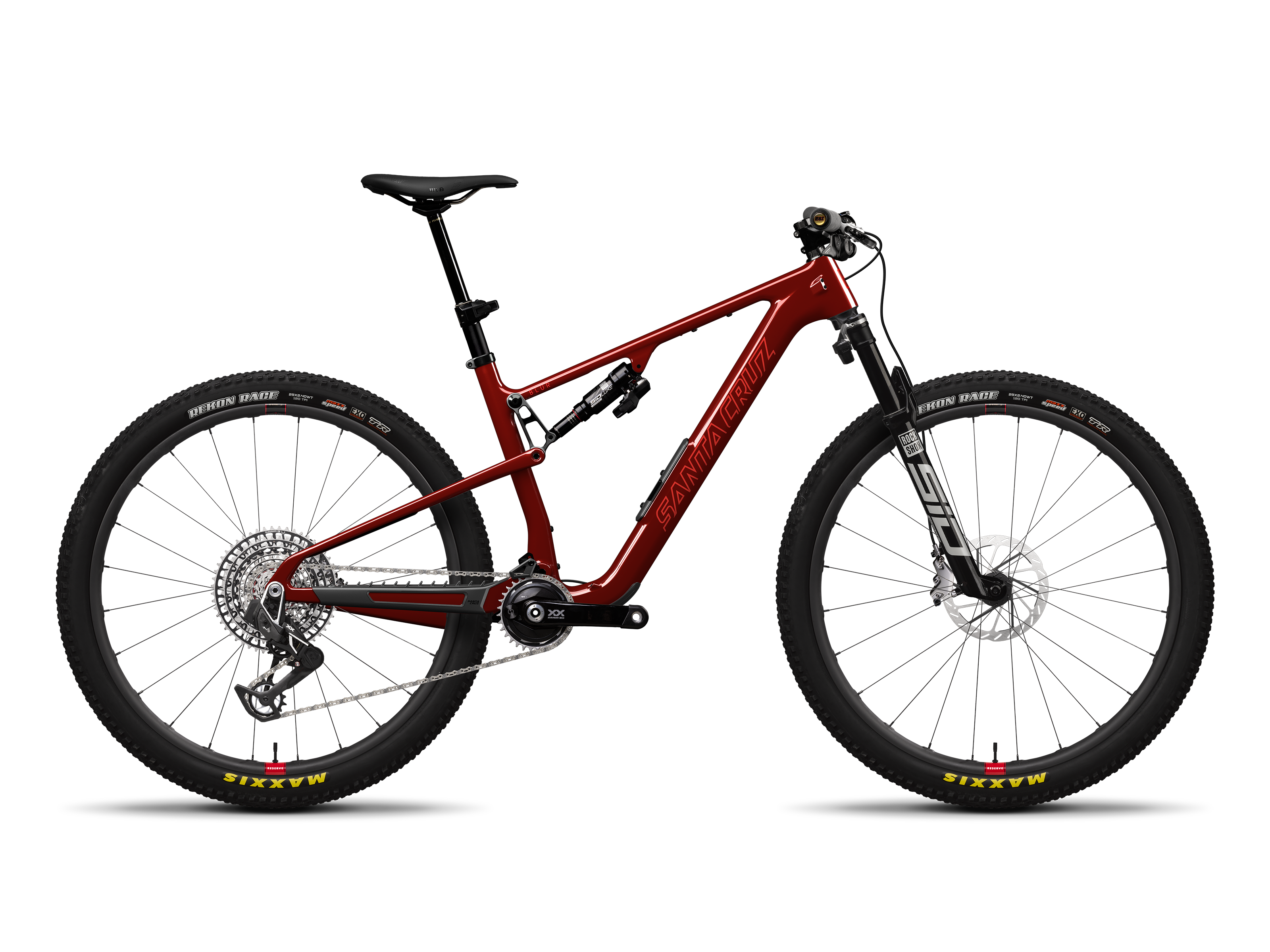

Blur XX AXS Race FA RSV
Build Kit & Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
|
Material |
|
|
Features |
|
|
Frame |
|
|
Travel |
|
|
Weight |
|
|
Wheel Size |
|
| Suspension | |
|
Fork |
|
|
Shock |
|
|
Remote |
|
| Drivetrain | |
|
Bottom Bracket |
|
|
Cassette |
|
|
Chain |
|
|
Chainguide |
|
|
Crank Length |
|
|
Crankset |
|
|
Front Derailleur |
|
|
Left Shifter |
|
|
Rear Derailleur |
|
|
Right Shifter |
|
|
Shifters |
|
| Brakes | |
|
Brakes |
|
|
Front Brakes |
|
|
Front Rotor |
|
|
Rear Brakes |
|
|
Rear Rotor |
|
|
Rotors |
|
| Cockpit | |
|
Bar Width |
|
|
Dropper Length |
|
|
Grips / Bar Tape |
|
|
Handlebars |
|
|
Headset |
|
|
Saddle |
|
|
Seatpost |
|
|
Stem |
|
|
Stem Length |
|
| Wheels | |
|
Front Rim |
|
|
Front Hub |
|
|
Front Tire |
|
|
Rear Rim |
|
|
Rear Hub |
|
|
Rear Tire |
|
|
Valves |
|
|
Rims |
|
| Ebike | |
|
Battery |
|
|
Drive Unit |
|
|
Battery Charger |
|
|
Range Extender |
|
| Specs | |
|
Bottom Bracket Shell |
|
|
Rear Brake Mount |
|
|
Chainguide Standard |
|
|
Chainline |
|
|
Derailleur Hanger |
|
|
Downtube Storage |
|
|
Shock Length |
|
|
Fork Axle to Crown |
|
|
Fork Compatibility |
|
|
Fork Offset |
|
|
Front Derailleur Mount |
|
|
Headset |
|
|
Max Chainring Size |
|
|
Max Rotor Size |
|
|
Max Tire Clearance May vary according to tire and rim model |
|
|
Front Spacing |
|
|
Rear Spacing |
|
|
Rear Travel |
|
|
Recommended Sag |
|
|
Sealant |
|
|
Seat Clamp Diameter |
|
|
Seat Post Diameter |
|
|
Shock Bushing Size Front |
|
|
Shock Bushing Size Rear |
|
|
Shock Mounting Hardware Lower |
|
|
Shock Mounting Hardware Upper |
|
|
Shock Stroke |
|
|
Suspension System |
|
|
UDH Compatible |
|
|
Water Bottle Mounts |
Blur XX AXS Race FA RSV
Sizing & Geometry
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 425 | 450 | 475 | 500 |
| Stack | 588 | 588 | 597 | 611 |
| Head tube angle | 66° | 66° | 66° | 66° |
| Head Tube Length | 90 | 90 | 100 | 115 |
| Rear Center | 433 | 435 | 437 | 439 |
| Front Center | 718 | 743 | 772 | 803 |
| BB Height | 334 | 334 | 334 | 334 |
| BB Drop | 38.5 | 38.5 | 38.5 | 38.5 |
| Wheelbase | 1151 | 1178 | 1209 | 1242 |
| Top Tube Length | 575 | 596 | 622 | 650 |
| Seat Tube Length | 405 | 405 | 440 | 490 |
| Seat Tube Angle | 75.7° | 76° | 76.1° | 76.2° |
| Seat Tube Angle at Saddle Height | 75.0 at 680 | 75.1 at 730 | 75.1 at 780 | 75.1 at 830 |
| Standover Height | 735 | 743 | 745 | 744 |
Blur XX AXS Race FA RSV
Setup & Support
Whether you’re the proud owner of a Blur or are just digging deep into the details you’ll find it all here.
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Sag | Rebound (from closed) |
|---|---|---|---|---|
| 100 | 45 | 110 | 28-30%, 12.5-13.5mm | 7 |
| 120 | 54 | 135 | 28-30%, 12.5-13.5mm | 7 |
| 140 | 64 | 155 | 28-30%, 12.5-13.5mm | 6 |
| 160 | 73 | 180 | 28-30%, 12.5-13.5mm | 6 |
| 180 | 82 | 200 | 28-30%, 12.5-13.5mm | 5 |
| 200 | 91 | 225 | 28-30%, 12.5-13.5mm | 5 |
| 220 | 100 | 245 | 28-30%, 12.5-13.5mm | 4 |
| 240 | 109 | 270 | 28-30%, 12.5-13.5mm | 4 |
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (from closed) |
|---|---|---|---|
| 120 | 54 | 56 | 7 |
| 140 | 64 | 69 | 6 |
| 160 | 73 | 81 | 5 |
| 180 | 82 | 92 | 4 |
| 200 | 91 | 105 | 3 |
| 220 | 100 | 118 | 2 |
| 240 | 109 | 130 | 1 |
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | M8x35 Shock Bolt | Apply Loctite 242 to threads | 2 | 20 Nm | 26-22662 |
| B | M10x23 Screw | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 16 Nm | 26-20122 |
| C | Pivot Axle M10x81 | Apply Loctite 242 to threads only, apply grease to shaft only | 2 | 13.6 Nm | 08-23720 |
| D | M5 Tapered Washer | Apply grease to surface | 1 | 26-15632 | |
| E | M5 Washer | 1 | 26-12652 | ||
| F | M5x20 SHCS | Apply Loctite 242 to threads | 1 | 7.5 | 26-15946 |
| G | Pivot axle M15x90.75 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-22530 |
| H | M6 Tapered Washer | Apply grease to surface | 1 | 26-15633 | |
| I | M6 Washer | 1 | 26-11817 | ||
| J | M6x20 SHCS | Apply Loctite 242 to threads | 1 | 9 Nm | 26-15947 |
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Rear axle 12x173.7 | Apply grease to shaft and threads | 1 | 08-22209 | |
| B | SCB UDH | Interchangeable with Sram UDH | 1 | 23-23491 | |
| C | SCB UDH screw | Reverse thread | 1 | 20 Nm | 26-23492 |
| D | Chainstay Protector | 1 | 30-29610 | ||
| E | M3x8 BHCS | Apply Loctite 242 to threads | 1 | 0.5 Nm | 26-23284 |
| Frame Size | Flip Chip | Setup Key | Setup Cog | 32T | 34T | 36T | 38T |
|---|---|---|---|---|---|---|---|
| S | B | 7 | 116 | 118 | 118 | 120 | |
| M | B | 7 | 116 | 118 | 118 | 120 | |
| L | B | 7 | 116 | 118 | 118 | 120 | |
| XL | B | 7 | 118 | 118 | 120 | 120 |
Blur XX AXS Race FA RSV
Get access to the exclusive SCB Owners Club which gives you access to added levels of rider support, treats, opportunities and benefits. Join the club today for free! It takes just five minutes to receive a lifetime of membership perks.
Learn MoreWe build Santa Cruz bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.
Santa Cruz Bicycles offers free replacement pivot bearings to the original owner for as long as they own their bike.
The new Blur is made for trails, whether you’re racing for podiums or hammering into the sunrise. The suspension, geometry, and chassis combine to deliver a platform capable of the top step—the rest is up to you. We bumped up the travel, updated the geometry, and spent a lot of time tweaking the suspension kinematics to encourage you to obliterate the boundaries of a traditional “XC bike.” The Blur is right at home sprinting for the hole shot, but it’s also a lightweight and immensely capable short-travel trail bike for the days between the races. Whether you're sprinting out of the gate or out of a corner, aiming for the horizon or the apex, the Blur takes XCO and injects some 'oh, hell yeah!' into every ride, Monday through Sunday.
Standout Features
Explore the trail taming highlights that make the Blur so special.

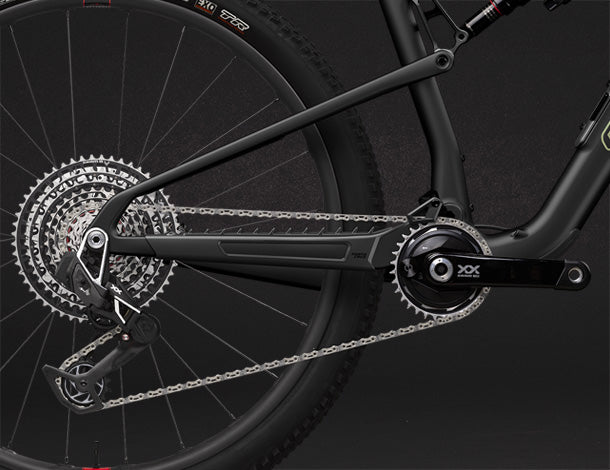

SRAM XX AXS Electronic Drivetrain

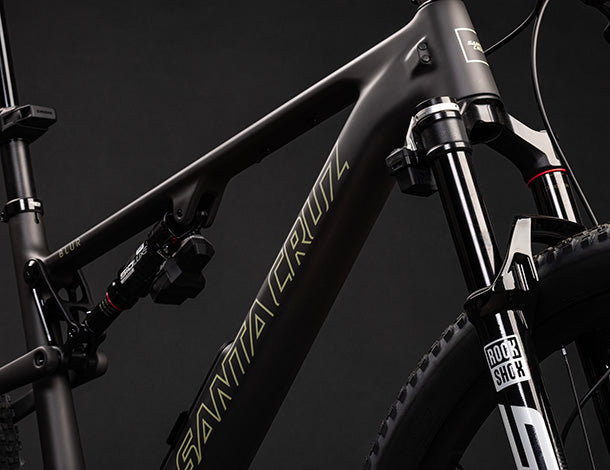

Rock Shox Flight Attendant Fork & Shock
Reserve 28|XC rims w/DT Swiss 180 Hubs
SRAM Motive Ultimate Brakes
