V10 7 Carbon 27.5

Model Version 7 Carbon 27.5"
Production Start 2018
Production End -
Suspension/Pivot System VPP - Virtual Pivot Point
Material Carbon Fiber
Rear Wheel Travel 215mm
Size Range S,M,L,XL

Model Specs

Compatible Forks 203mm
Headtube/Headset ZS49 upper/ EC49 lower
Seat Post 31.6mm - Minimum Insertion 100mm
Front Derailleur N/A - Single Front Chainring Only
BB Shell Width 83mm - Threaded - ISO
Chainline Spec 55mm
Recommended Max Tire Size 2.5 - may vary by tire and rim model
Max Brake Rotor Size 203mm
Rear Hub 157mm x 12mm Through Axle
Seatpost Clamp 36.4mm
Component Notes View V10 Geometry27.5": High | LowMX: High | Low29": High | Low

Shock Specs

Rear Shock Eye-to-Eye 250mm
Stroke 75mm
Mounting Bushing Width Front 25x8
Mounting Bushing Width Rear 30x8

Geometry

Shock Position
All units are in millimeters or degrees.
s
A. Reach 412
B. Stack 603
Head tube angle 63.7°
L. Seat Tube Length 435
F. Front Center 769
H. BB Height 356
I. BB Drop -2
E. Wheelbase 1199
G. Rear Center 430
K. Head Tube Length 100
J. Standover Height 712
s
A. Reach 410
B. Stack 602
Head tube angle 63.3°
L. Seat Tube Length 435
F. Front Center 769
H. BB Height 351
I. BB Drop 3
E. Wheelbase 1200
G. Rear Center 430
K. Head Tube Length 100
J. Standover Height 707

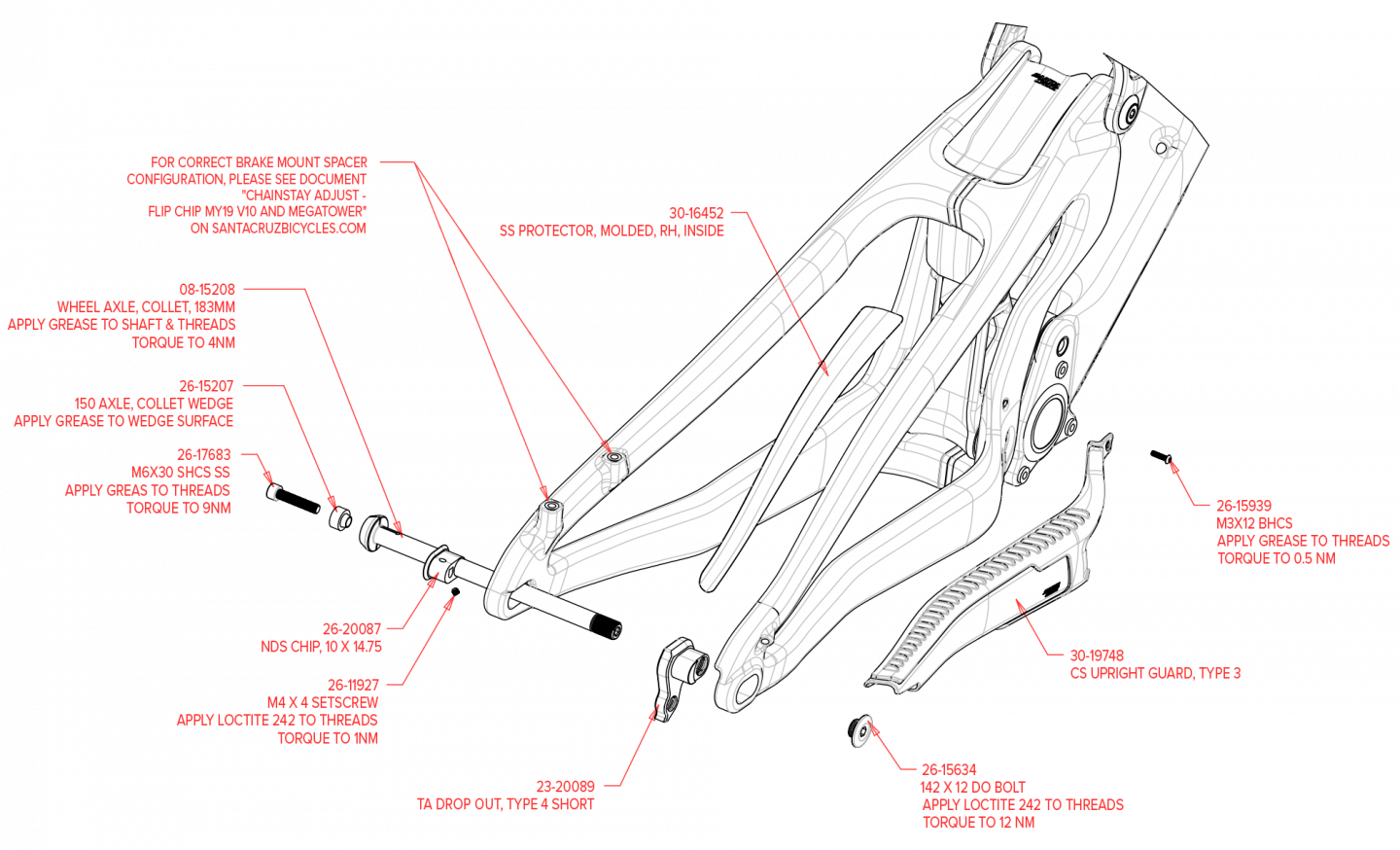

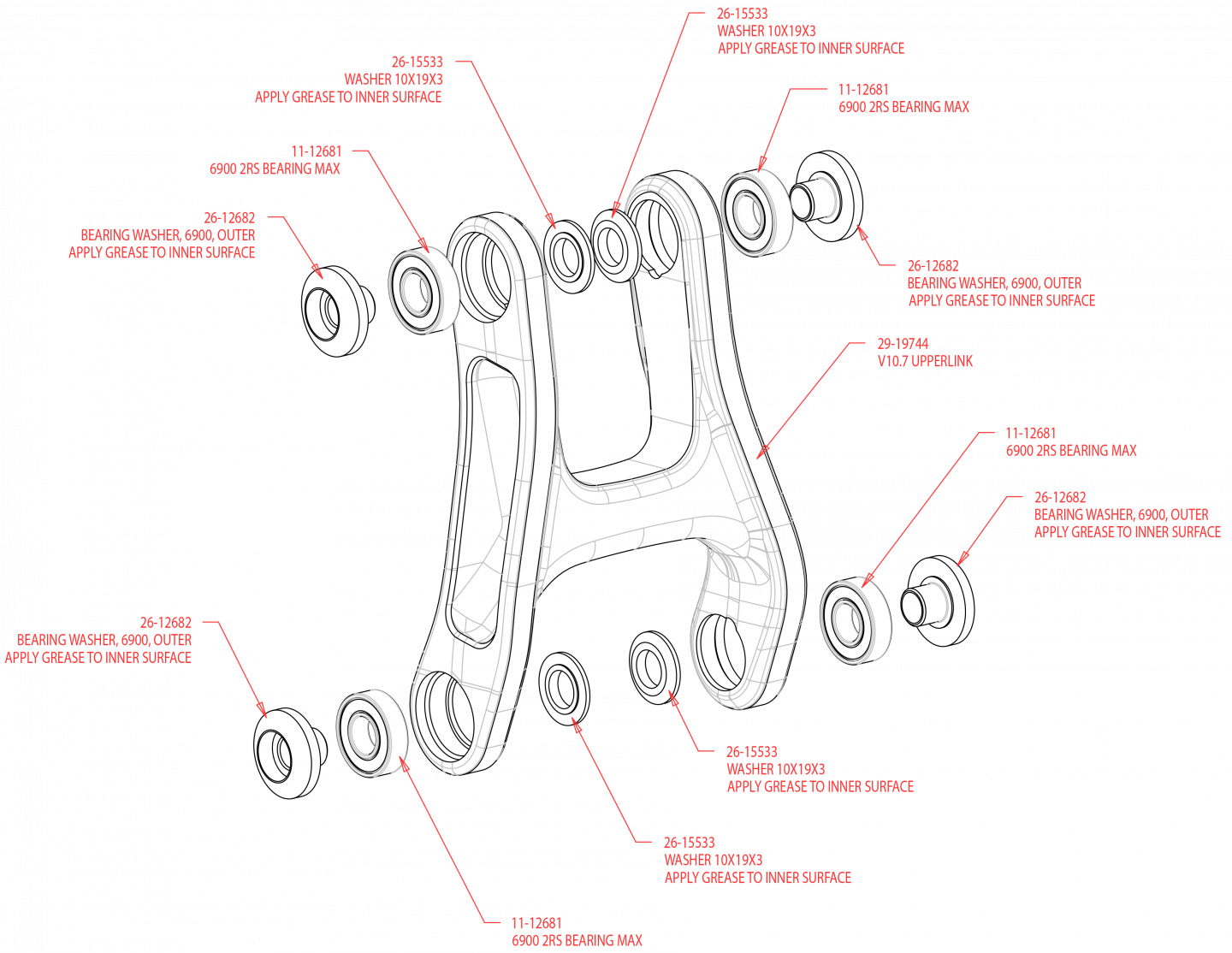

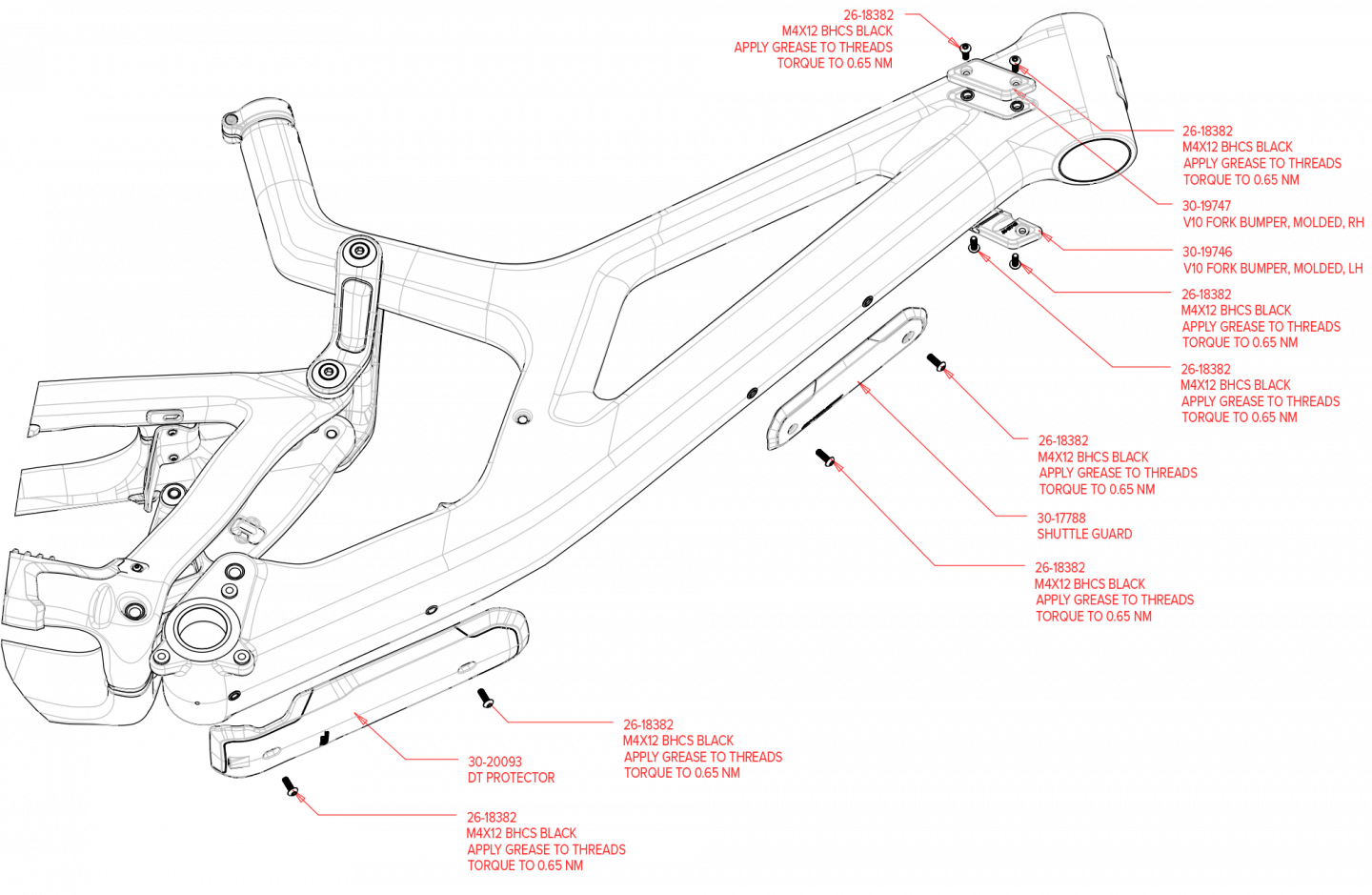

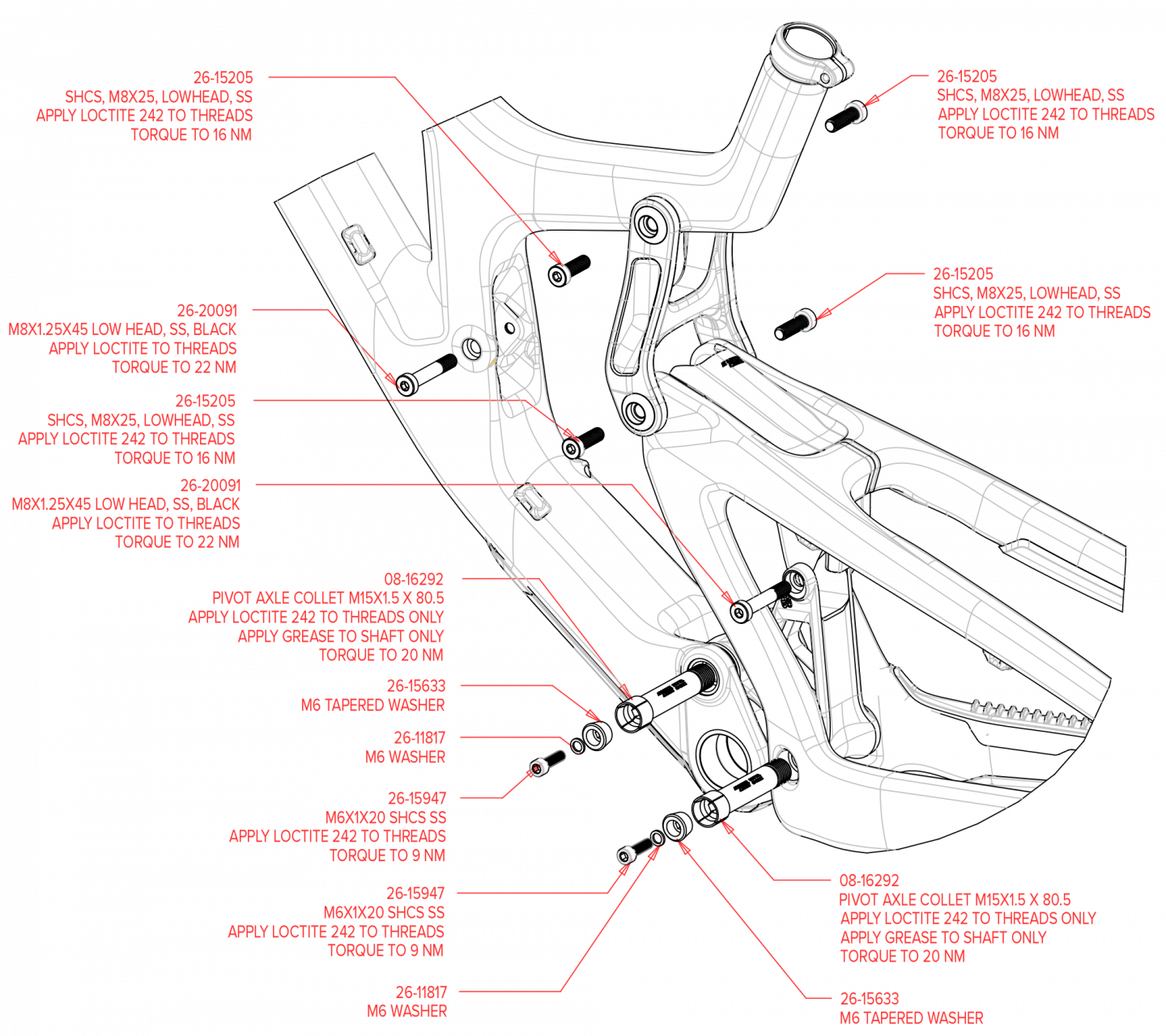

Exploded Diagrams

Files

If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
