Bronson 2

Model Version 2
Production Start 2016
Production End 2018
Suspension/Pivot System VPP - Virtual Pivot Point
Material Available in Carbon Fiber & Aluminum
Rear Wheel Travel 150 mm
Size Range S,M,L,XL

Model Specs

Compatible Forks 150 - 160mm
Headtube/Headset Tapered - 44mm zero stack/internal upper cup, with an external 49mm lower cup. The SHIS name is ZS44/28.6 EC49/40.
Seat Post 31.6mm - Minimum Insertion 100mm
Front Derailleur Direct Mount
BB Shell Width 73mm - Threaded - ISO
Chainline Spec 50mm
Recommended Max Tire Size 2.4 - may vary by tire and rim model
Brakes Disc Brake - ISO
Max Brake Rotor Size 203mm
Rear Hub 148x12mm Through Axle
Seatpost Clamp 36.4mm
Component Notes *The aluminum version of this bike uses integrated headset cups. The the upper up is 41mm and the lower cup is 52mm. The SHIS name is IS 41/28.6 IS 52/40.

Shock Specs

Rear Shock Eye-to-Eye 200 mm
Stroke 57 mm
Mounting Bushing Width Front 22 mm
Mounting Bushing Width Rear 22 mm
Mounting Bolt Diameter Front M8
Mounting Bolt Diameter Rear M8
Rear Shock Setup dpx_set-up.jpg float_performance_set-up.png bronson_2_rockshox_monarch_plus_rc3_set-up.png

Geometry

All units are in millimeters or degrees.
s m l xl
Reach 405mm 425mm 445mm 475mm
Stack 586mm 595mm 605mm 614mm
Head tube angle 66° 66° 66° 66°
Seat Tube Length 395mm 420mm 460mm 495mm
Front Center
BB Height 341mm 341mm 341mm 341mm
BB Drop 13mm 13mm 13mm 13mm
Wheelbase 1141mm 1165mm 1189mm 1223mm
Rear Center 432mm 432mm 432mm 432mm
Head Tube Length 90mm 100mm 110mm 120mm
Top Tube Length 573mm 596mm 618mm 651mm
Seat Tube Angle 74° 74° 74° 74°
Standover Height 727mm 731mm 734mm 747mm
Eye to eye length
Seatpost length
Stem length
Crank length

Suspension Setup

Suspension Setup

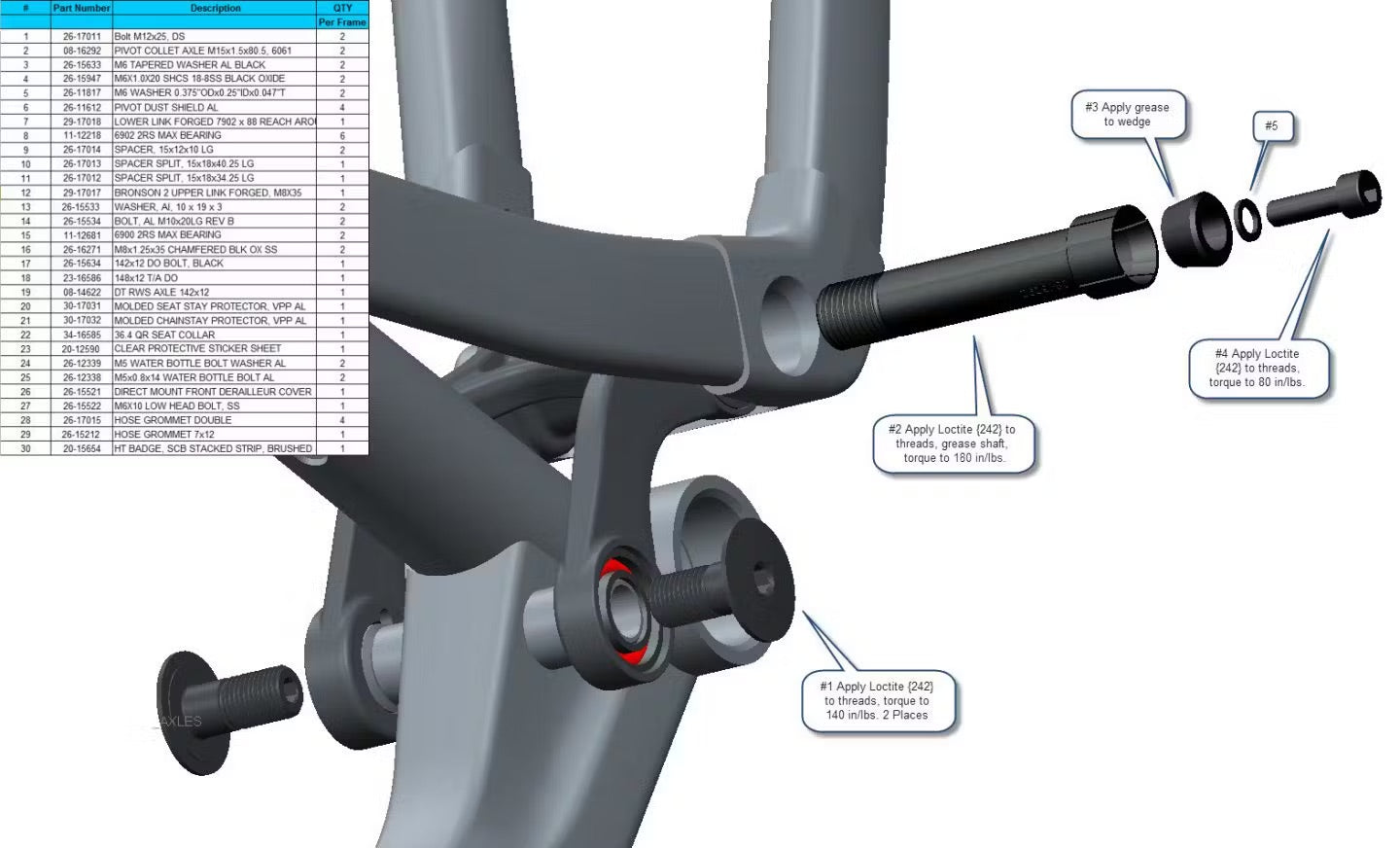

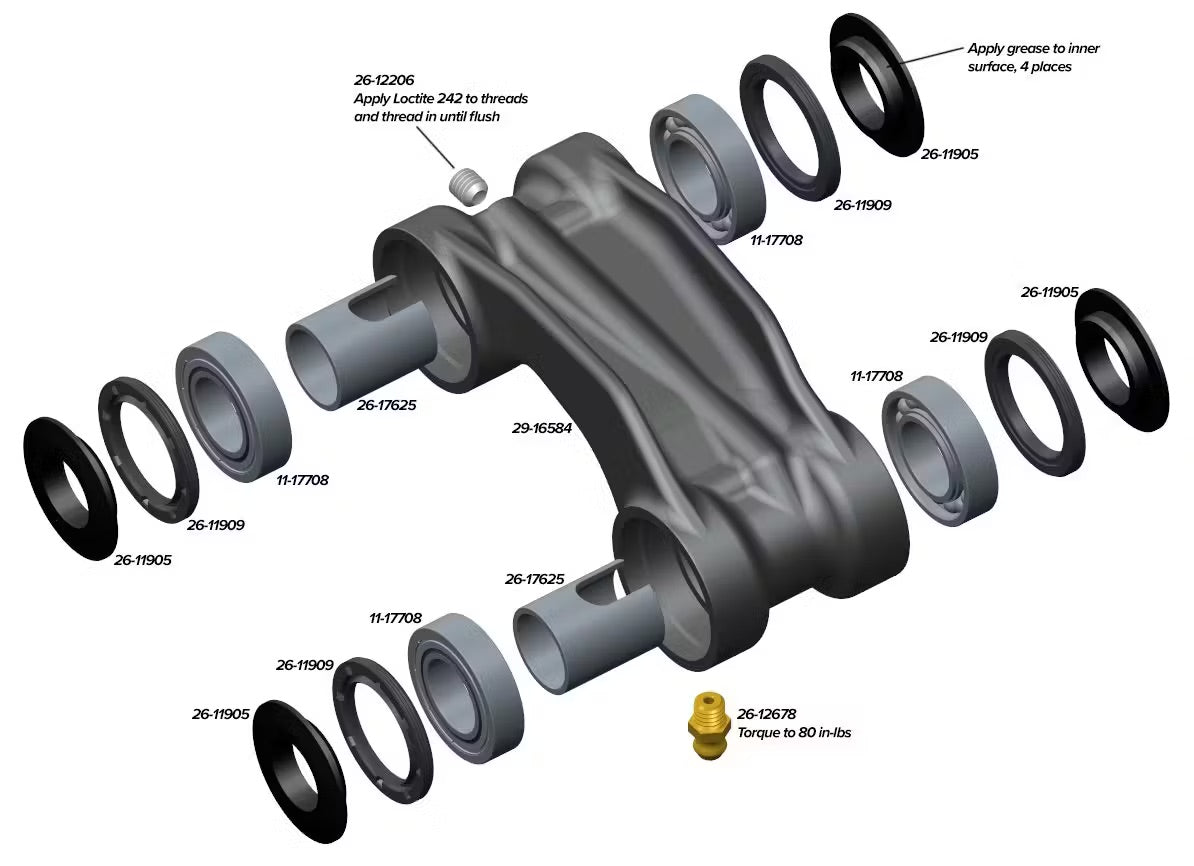

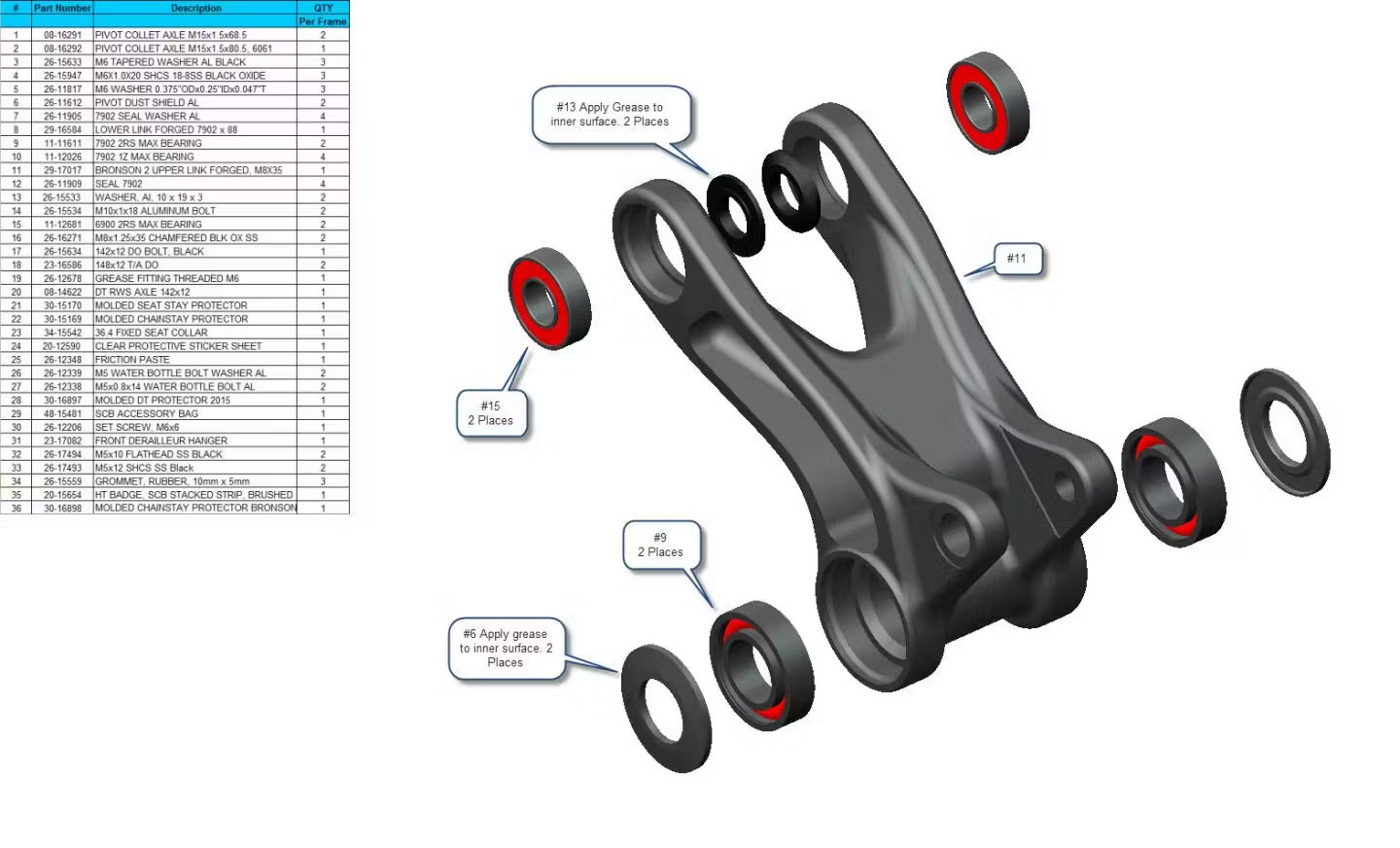

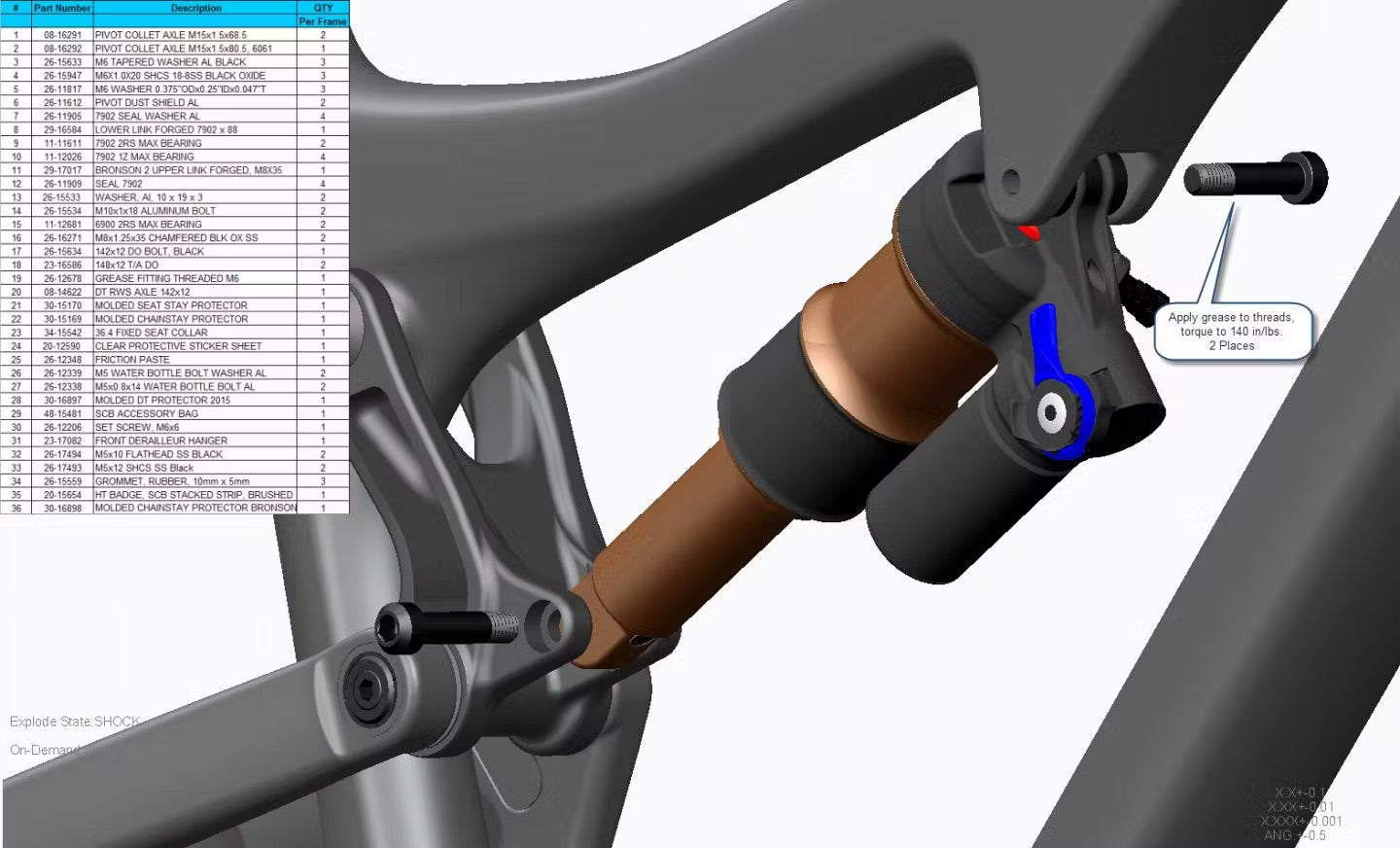

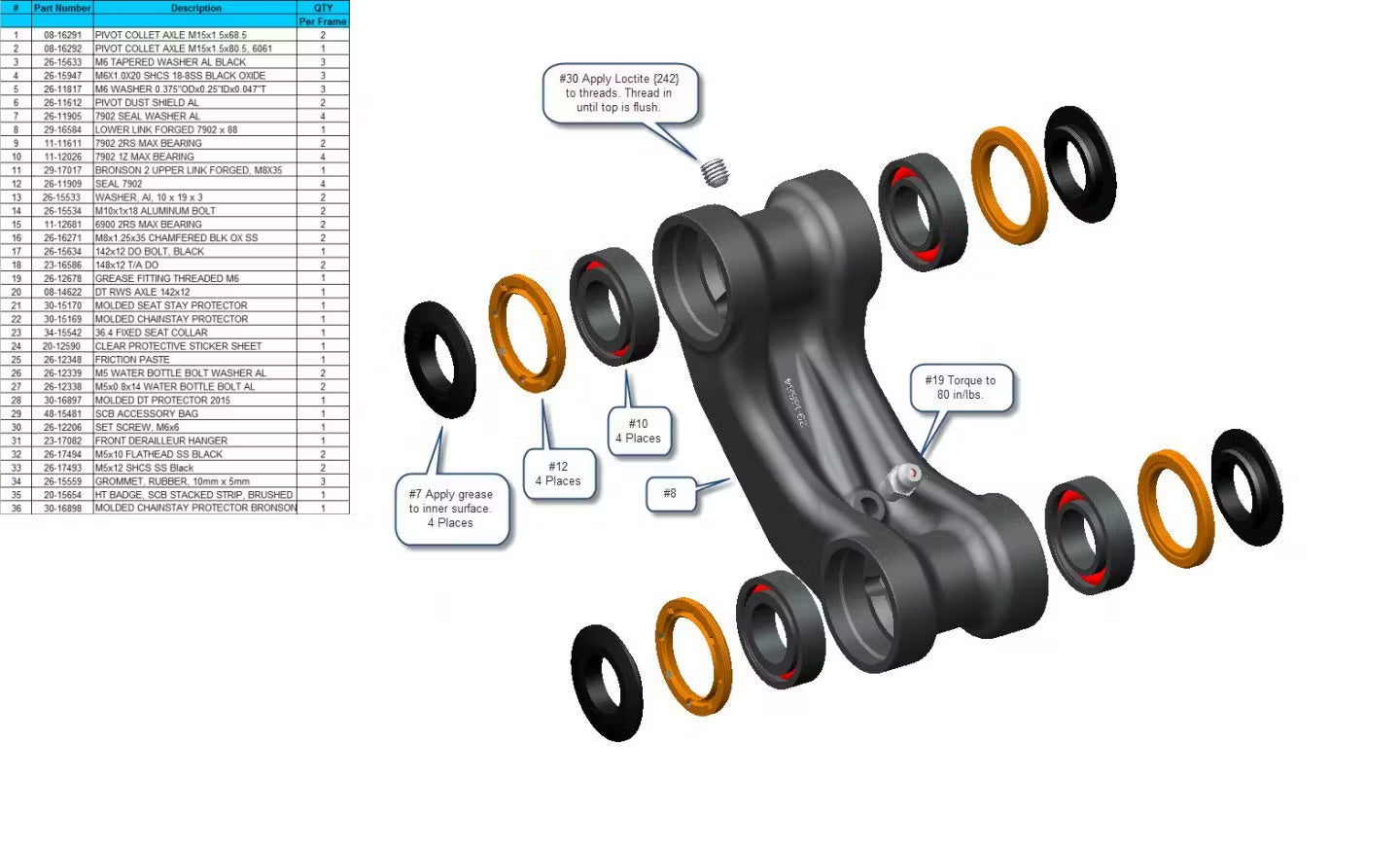

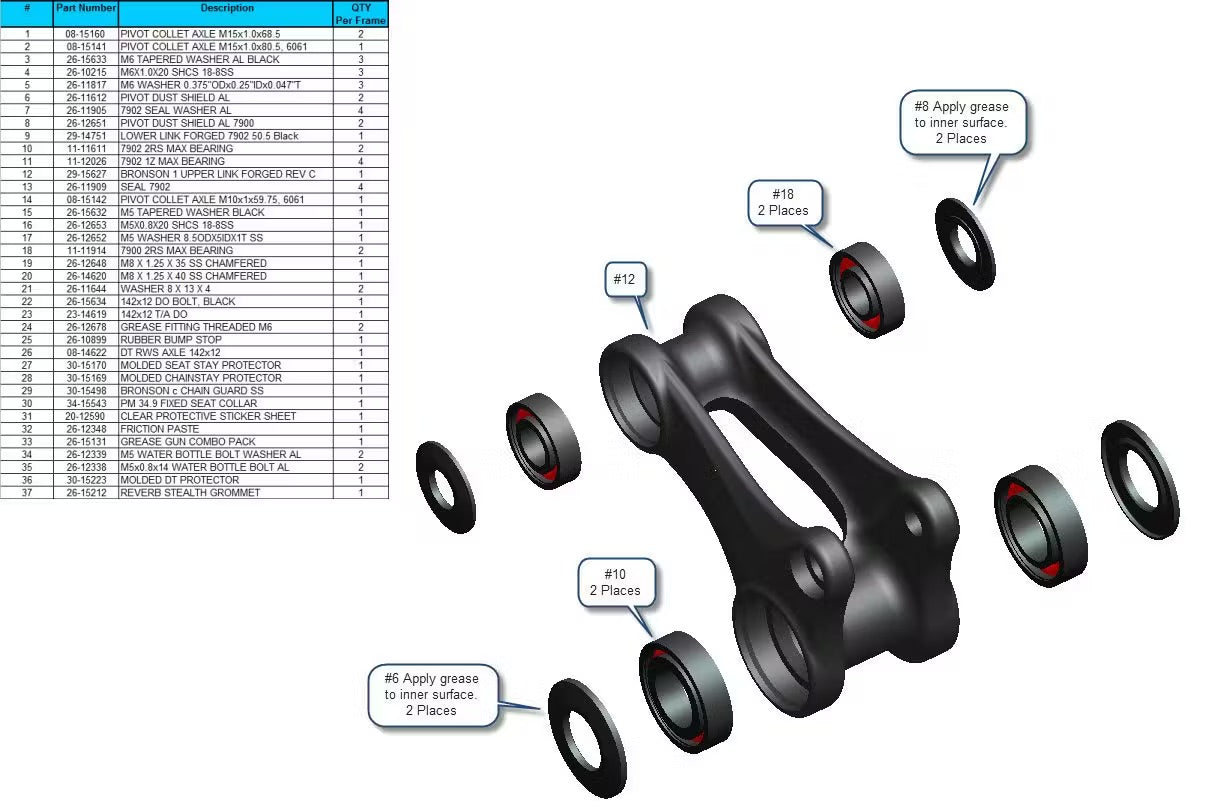

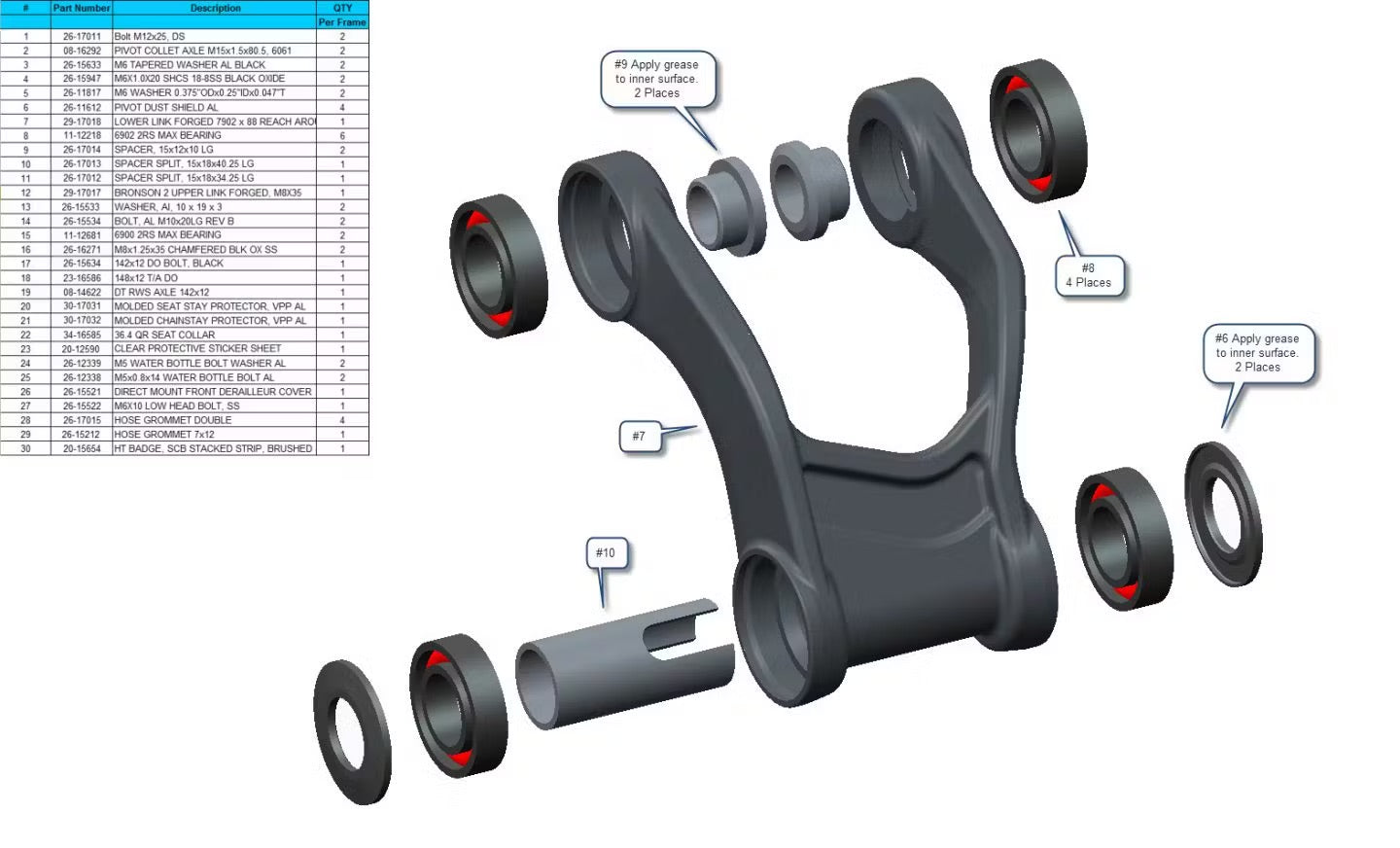

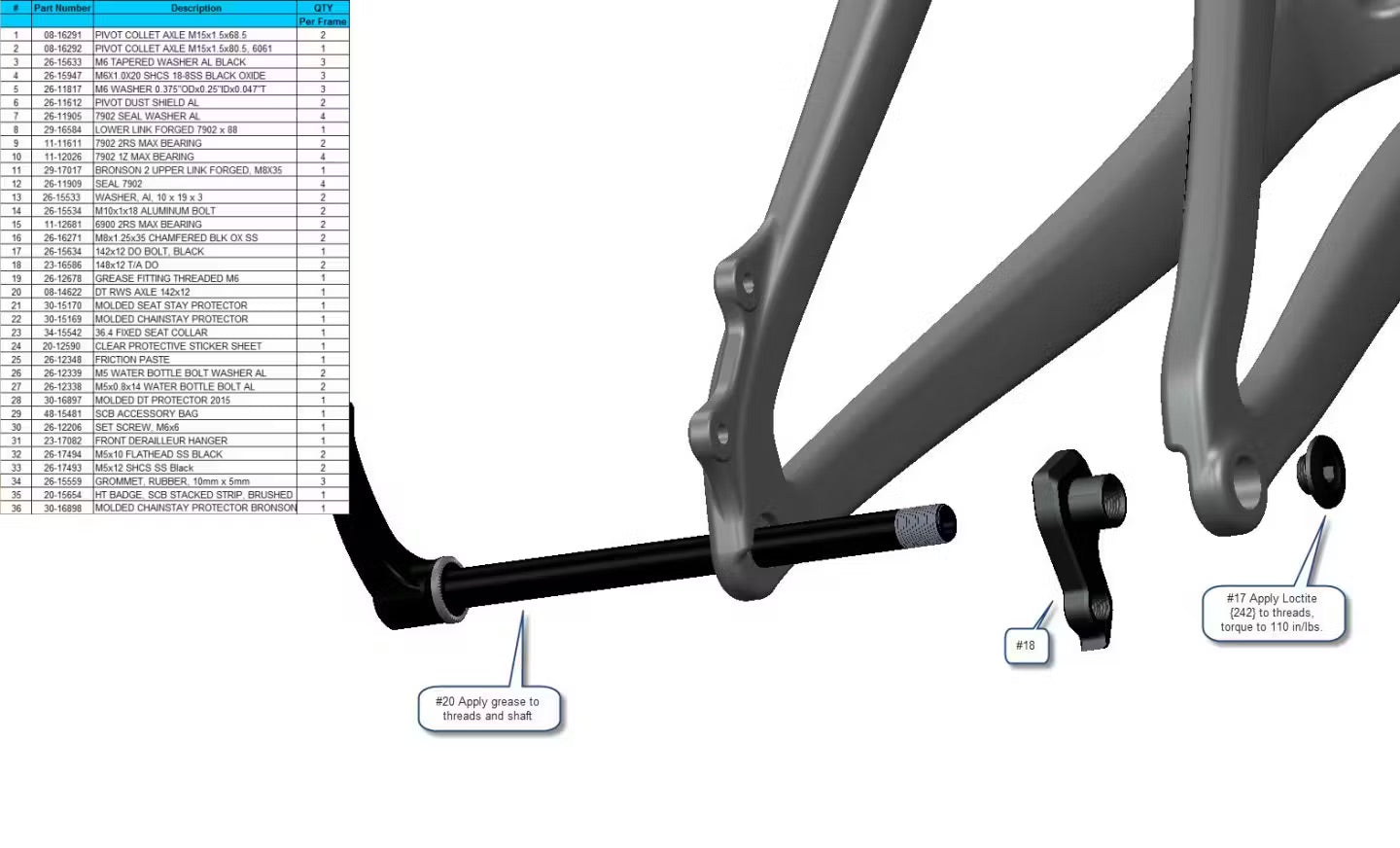

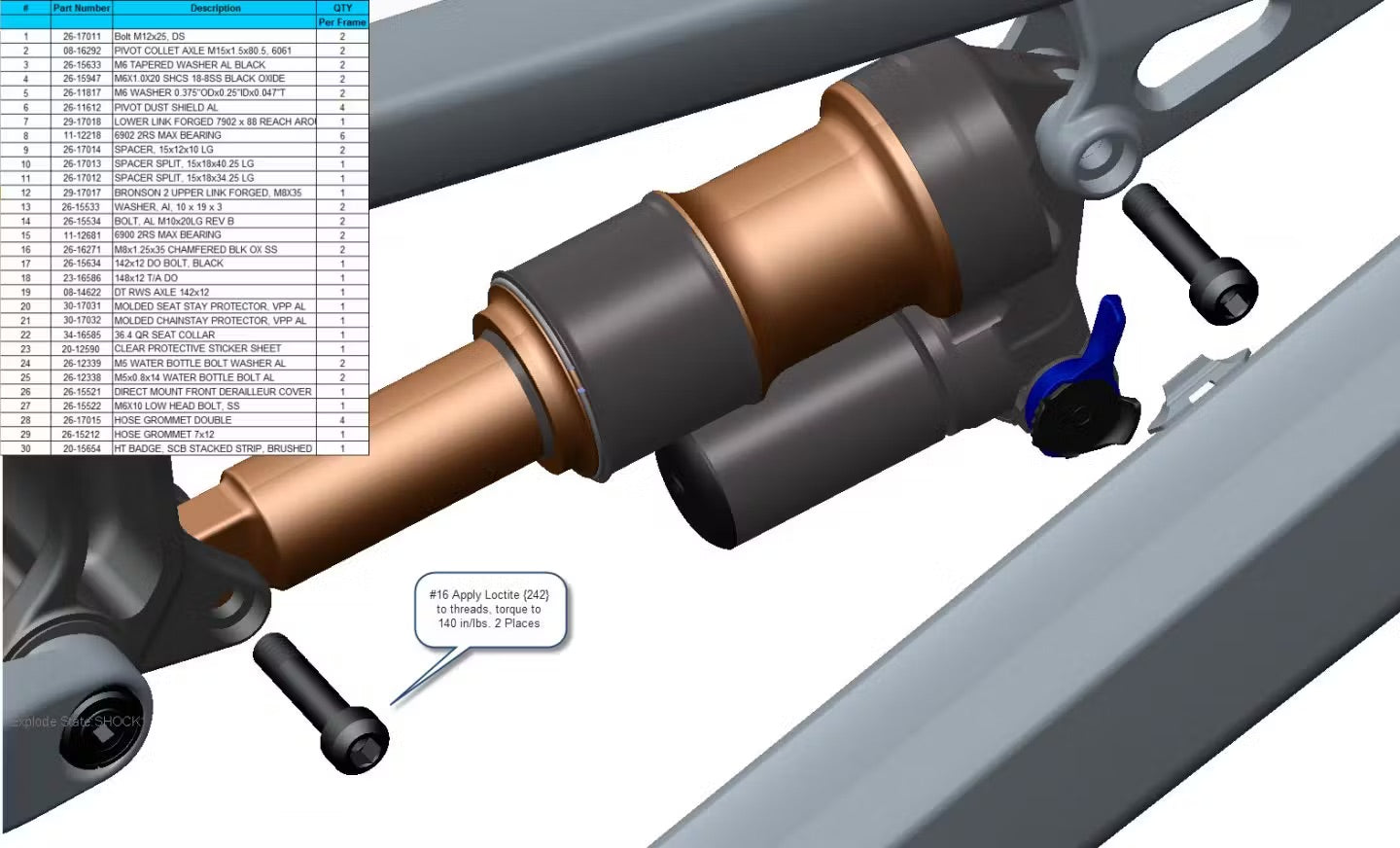

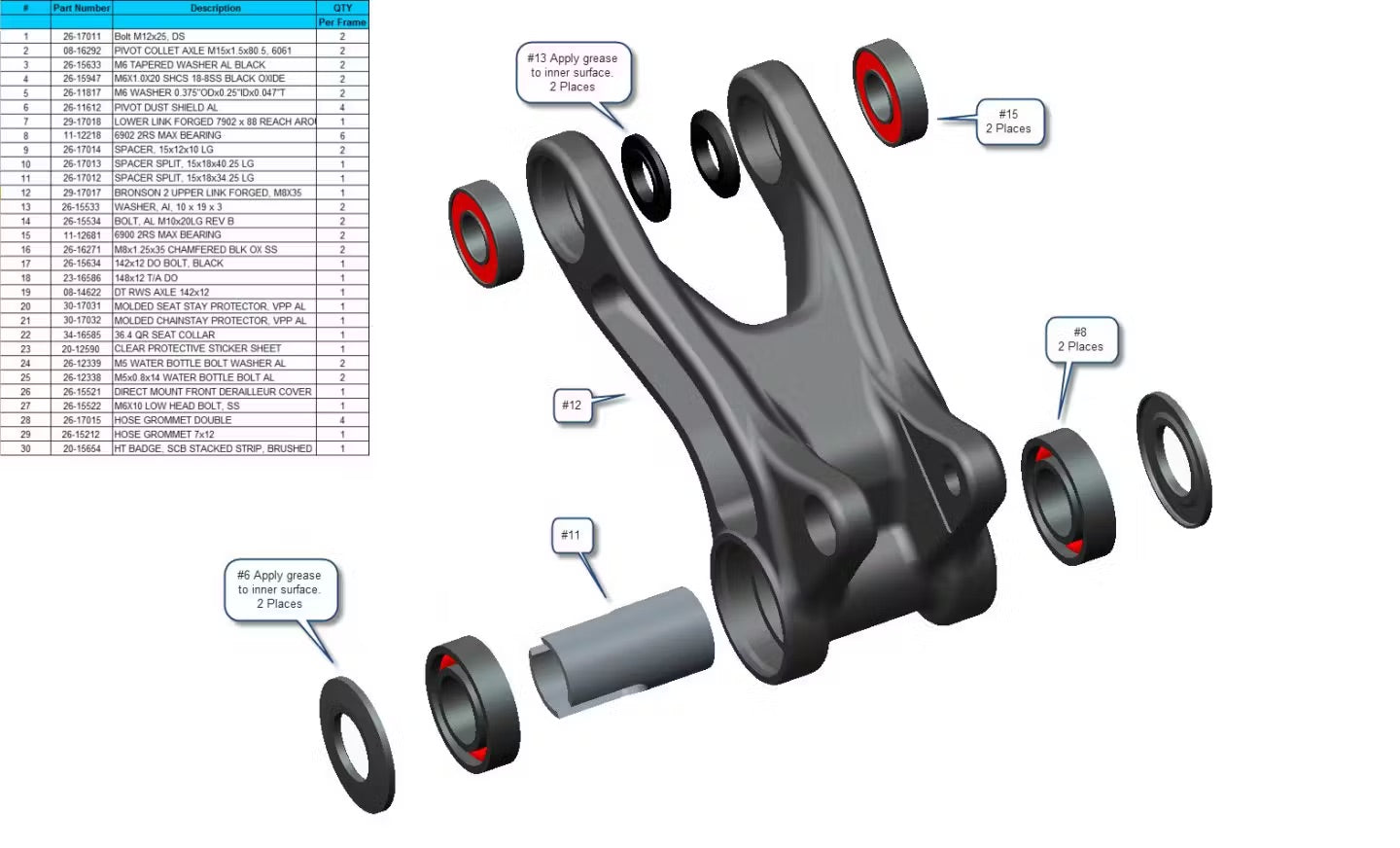

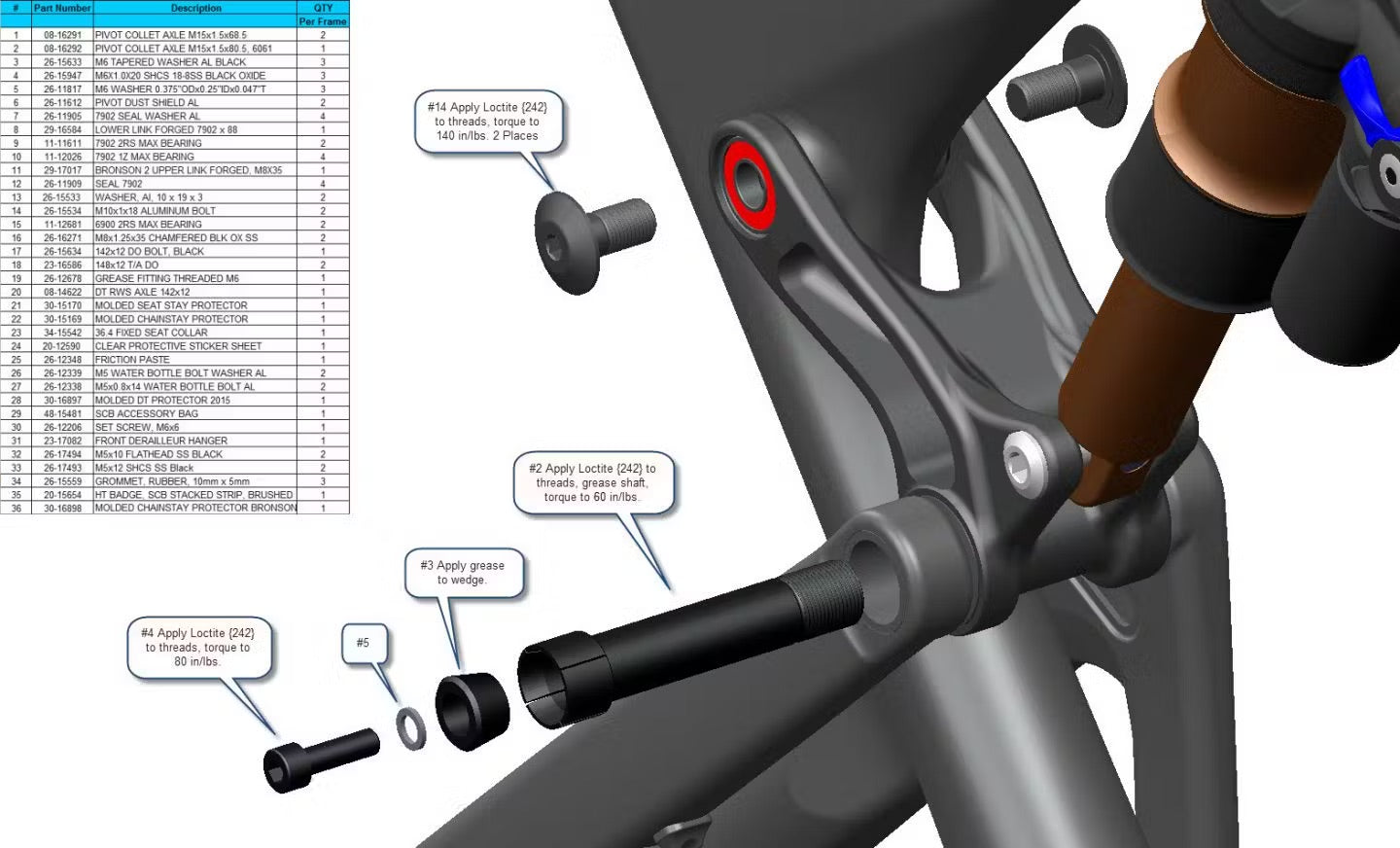

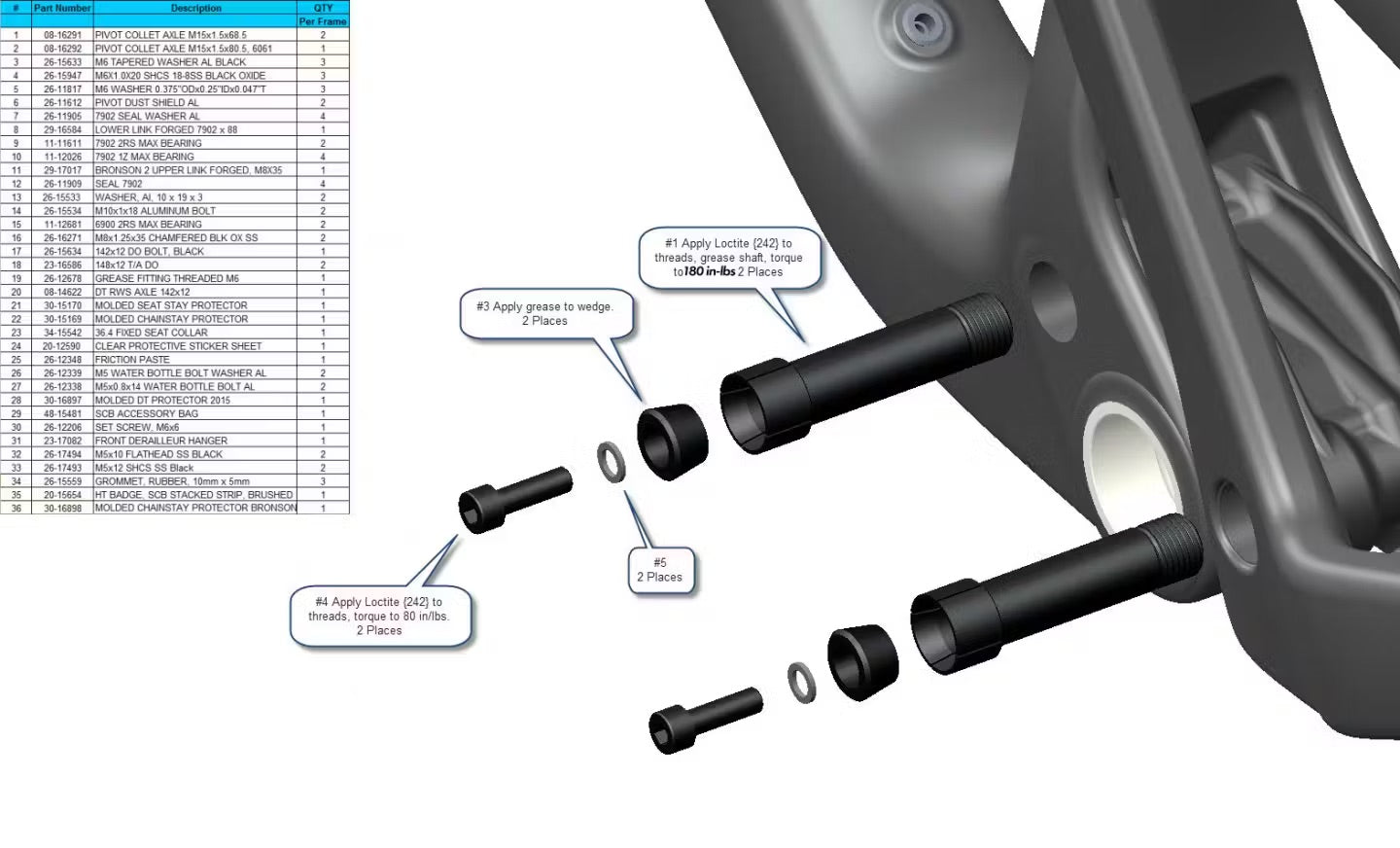

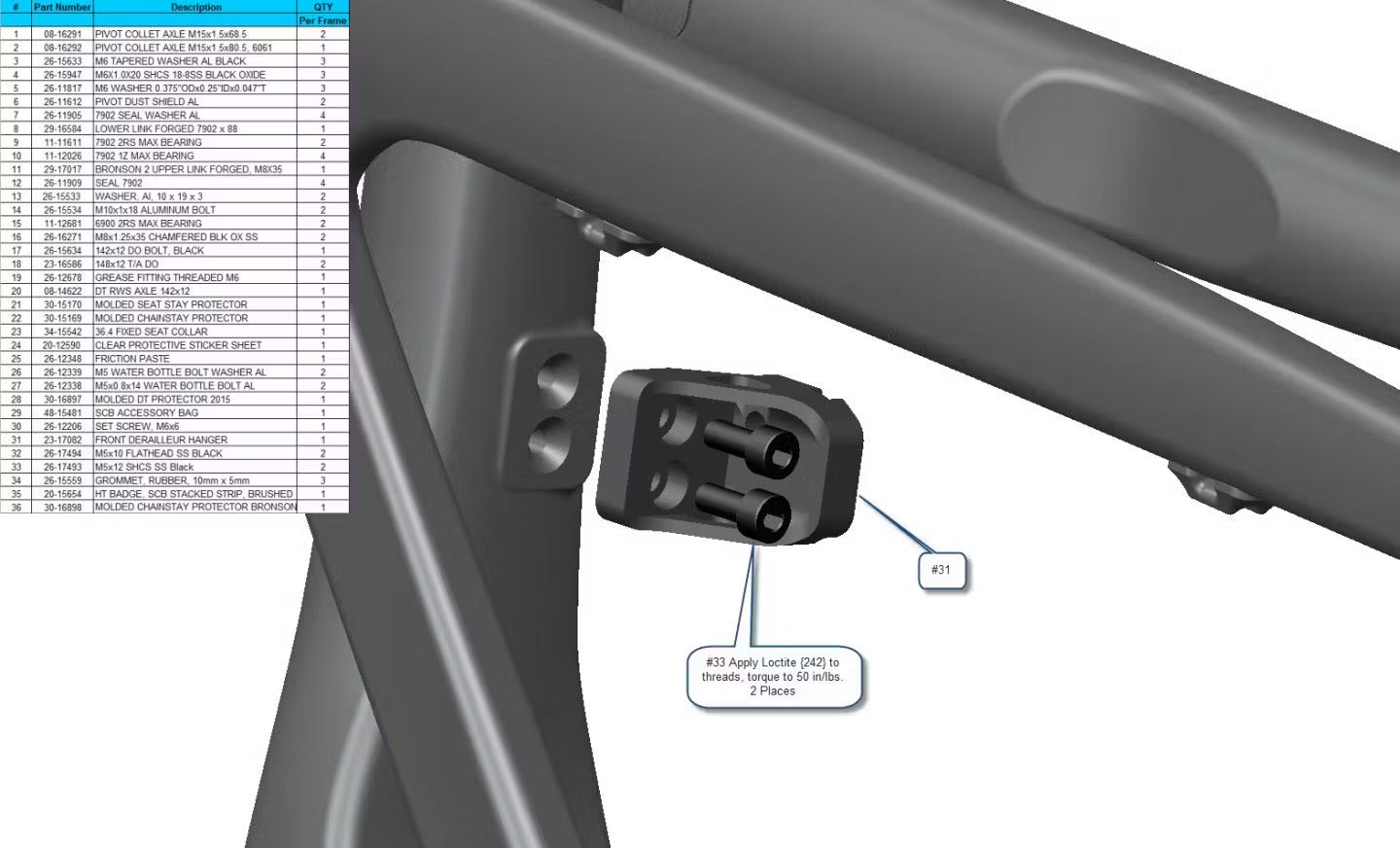

Exploded Diagrams

Files

If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
