Stigmata Apex
Build Kit & Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
| Material | |
| Features | |
| Frame | |
| Travel | |
| Weight | |
| Wheel Size | |
| Suspension | |
| Fork | |
| Shock | |
| Remote | |
| Drivetrain | |
| Bottom Bracket | |
| Cassette | |
| Chain | |
| Chainguide | |
| Crank Length | |
| Crankset | |
| Front Derailleur | |
| Left Shifter | |
| Rear Derailleur | |
| Right Shifter | |
| Shifters | |
| Brakes | |
| Brakes | |
| Front Brakes | |
| Front Rotor | |
| Rear Brakes | |
| Rear Rotor | |
| Rotors | |
| Cockpit | |
| Bar Width | |
| Dropper Length | |
| Grips / Bar Tape | |
| Handlebars | |
| Headset | |
| Saddle | |
| Seatpost | |
| Stem | |
| Stem Length | |
| Wheels | |
| Front Rim | |
| Front Hub | |
| Front Tire | |
| Rear Rim | |
| Rear Hub | |
| Rear Tire | |
| Valves | |
| Rims | |
| Ebike | |
| Battery | |
| Drive Unit | |
| Battery Charger | |
| Specs | |
| Bottom Bracket Shell | |
| Rear Brake Mount | |
| Chainguide_standard | |
| Chainline | |
| Derailleur Hanger | |
| Shock Length | |
| Fork Axle to Crown | |
| Fork Compatibility | |
| Fork Offset | |
| Front Derailleur Mount | |
| Headset | |
| Max Chainring Size | |
| Max Rotor Size | |
| Max Tire Clearance | |
| Rear Spacing | |
| Rear Travel | |
| Recommended Sag | |
| Sealant | |
| Seat Clamp Diameter | |
| Seat Post Diameter | |
| Shock Bushing Size Front | |
| Shock Bushing Size Rear | |
| Shock Mounting Hardware Lower | |
| Shock Mounting Hardware Upper | |
| Shock Stroke | |
| Suspension System | |
| UDH Compatible | |
| Water Bottle Mounts |
Stigmata Apex
Sizing & Geometry
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
| xs | s | m | l | xl | xxl | |
|---|---|---|---|---|---|---|
| Reach | 375 | 390 | 405 | 420 | 435 | 450 |
| Stack | 550 | 564 | 576 | 600 | 612 | 631 |
| Head tube angle | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| Headtube length | 90 | 105 | 120 | 145 | 160 | 180 |
| Rear Center | 423 | 423 | 423 | 423 | 423 | 423 |
| Chainstay length | 430 | 430 | 430 | 430 | 430 | 430 |
| Front Center | 605 | 625 | 645 | 668 | 688 | 710 |
| BB Height | 278 | 278 | 280 | 280 | 282 | 282 |
| BB Drop | 78 | 78 | 76 | 76 | 74 | 74 |
| Wheelbase | 1023 | 1043 | 1063 | 1087 | 1108 | 1130 |
| Top Tube Length | 533 | 552 | 570 | 592 | 610 | 631 |
| Seat Tube Length | 450 | 455 | 485 | 515 | 545 | 575 |
| Seat Tube Angle | 74° | 74° | 74° | 74° | 74° | 74° |
| Standover Height | 723 | 728 | 753 | 778 | 804 | 830 |
Stigmata Apex
Setup & Support
Whether you’re the proud owner of a Stigmata or are just digging deep into the details you’ll find it all here.
| label | part_number | quantity | name |
|---|---|---|---|
| A | 26-21360 | 4 | Water Bottle Screw |
| B | 26-20104 | 1 | DT Plug |
| C | 26-20195 | 2 | Fender Mount |
| D | 34-20202 | 1 | 31.8 Seat Collar |
| label | part_number | quantity | name | blurb | torque |
|---|---|---|---|---|---|
| A | 08-22208 | 1 | Rear Axle 168.5x12 | Apply grease to shaft and threads | |
| B | 23-23491 | 1 | SCB UDH | Interchangeable with Sram UDH | |
| C | 26-23492 | 1 | SCB UDH screw | Reverse thread | 20Nm |
| D | 30-20192 | 1 | CS Protector | ||
| E | 26-15532 | 2 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | |
| F | 26-21360 | 1 | Water Bottle Screw | ||
| G | 23-20194 | 1 | FD Mount | 3Nm | |
| H | 26-20864 | 2 | Di2 Plug | ||
| I | 26-20865 | 2 | Wireless Plug |
| label | part_number | quantity | name | torque | blurb |
|---|---|---|---|---|---|
| A | 26-22843 | 1 | Glovebox lid | ||
| B | 26-25333 | 1 | Glovebox bezel | ||
| C | 30-23225 | 2 | Glovebox nut | ||
| D | 26-23284 | 4 | M3x8 BHCS | .5Nm | Apply Loctite 242 to threads |
| label | part_number | quantity | name | blurb |
|---|---|---|---|---|
| A | 67-19217 | 1 | Head Tube Badge | Clean frame surface, center on headtube |
| B | 26-21360 | 1 | Water Bottle Screw | |
| C | 08-24964 | 1 | Front Axle 125x12 | Apply grease to shaft and threads |
| D | 26-15532 | 2 | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush |
| Frame Size | Setup Key | Setup Cog | 34T | 36T | 38T | 40T | 42T |
|---|---|---|---|---|---|---|---|
| Small | A | 7 | 116 | 118 | 118 | 120 | 120 |
| Medium | A | 7 | 116 | 118 | 118 | 120 | 120 |
| Large | A | 7 | 116 | 118 | 118 | 120 | 120 |
| XLarge | A | 7 | 116 | 118 | 118 | 120 | 120 |
| XXLarge | A | 7 | 116 | 118 | 118 | 120 | 120 |
Stigmata Apex
Get access to the exclusive SCB Owners Club which gives you access to added levels of rider support, treats, opportunities and benefits. Join the club today for free! It takes just five minutes to receive a lifetime of membership perks.
Learn MoreWe build Santa Cruz bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.

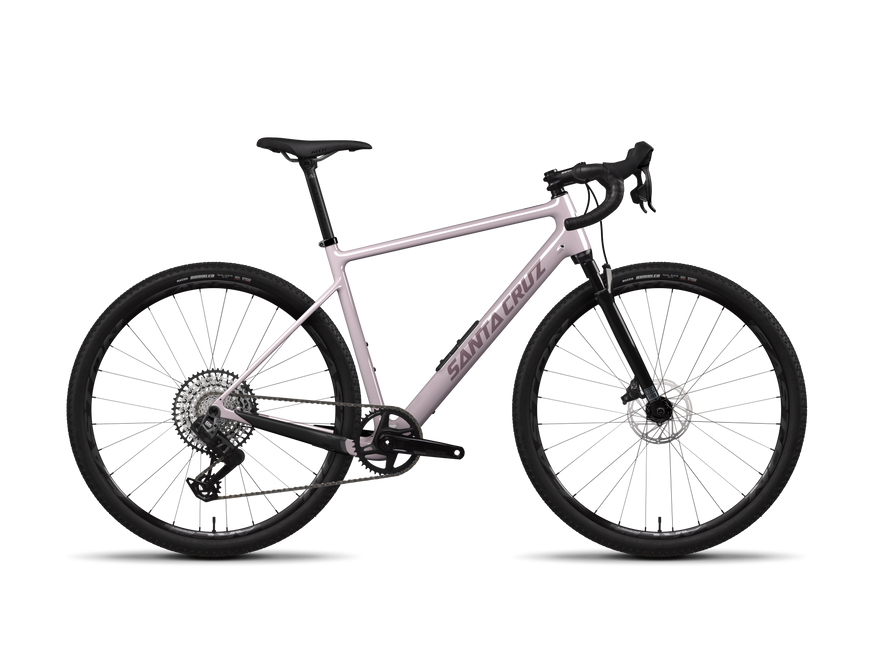

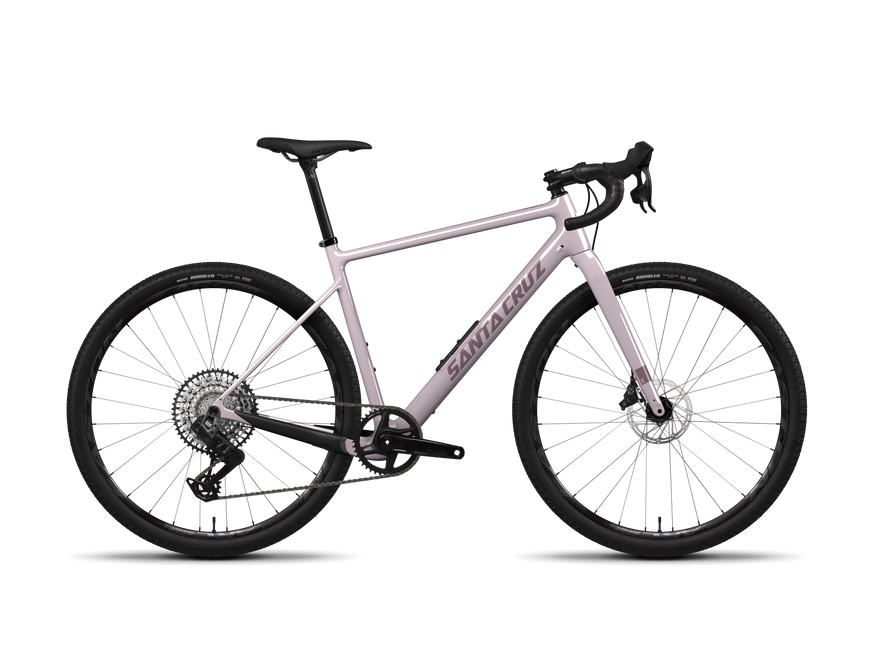

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.
Standout Features
Explore the highlights...
CC Carbon Frame
Progressive Geometry
Low Profile Fender Mounts
Glovebox
Dig Deep
