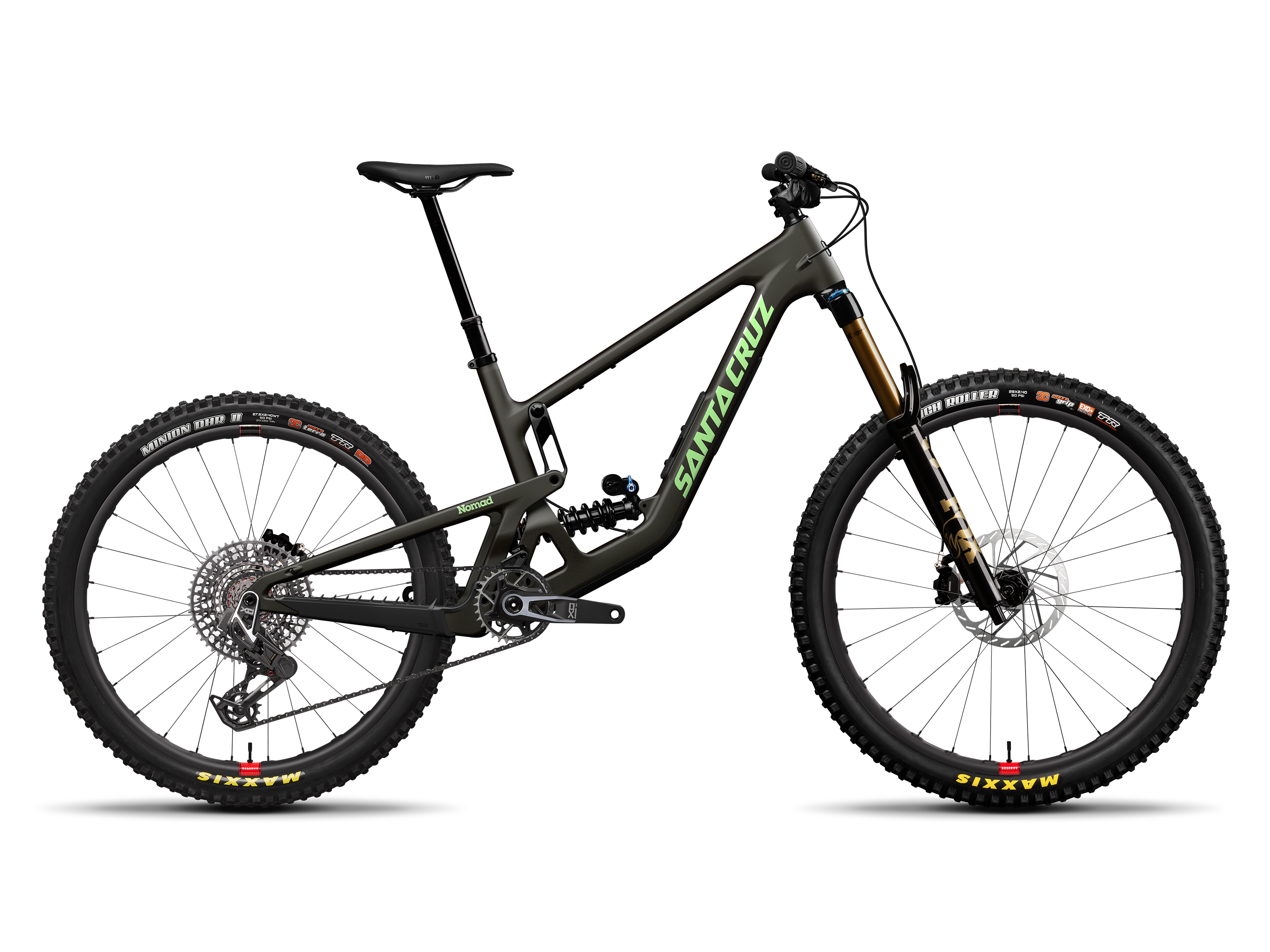

Nomad X0 AXS RSV Coil
Build Kit & Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
|
Material |
|
|
Features |
|
|
Frame |
|
|
Travel |
|
|
Weight |
|
|
Wheel Size |
|
| Suspension | |
|
Fork |
|
|
Shock |
|
|
Remote |
|
| Drivetrain | |
|
Bottom Bracket |
|
|
Cassette |
|
|
Chain |
|
|
Chainguide |
|
|
Crank Length |
|
|
Crankset |
|
|
Front Derailleur |
|
|
Left Shifter |
|
|
Rear Derailleur |
|
|
Right Shifter |
|
|
Shifters |
|
| Brakes | |
|
Brakes |
|
|
Front Brakes |
|
|
Front Rotor |
|
|
Rear Brakes |
|
|
Rear Rotor |
|
|
Rotors |
|
| Cockpit | |
|
Bar Width |
|
|
Dropper Length |
|
|
Grips / Bar Tape |
|
|
Handlebars |
|
|
Headset |
|
|
Saddle |
|
|
Seatpost |
|
|
Stem |
|
|
Stem Length |
|
| Wheels | |
|
Front Rim |
|
|
Front Hub |
|
|
Front Tire |
|
|
Rear Rim |
|
|
Rear Hub |
|
|
Rear Tire |
|
|
Valves |
|
|
Rims |
|
| Ebike | |
|
Battery |
|
|
Drive Unit |
|
|
Battery Charger |
|
|
Range Extender |
|
| Specs | |
|
Bottom Bracket Shell |
|
|
Rear Brake Mount |
|
|
Chainguide Standard |
|
|
Chainline |
|
|
Derailleur Hanger |
|
|
Downtube Storage |
|
|
Shock Length |
|
|
Fork Axle to Crown |
|
|
Fork Compatibility |
|
|
Fork Offset |
|
|
Front Derailleur Mount |
|
|
Headset |
|
|
Max Chainring Size |
|
|
Max Rotor Size |
|
|
Max Tire Clearance May vary according to tire and rim model |
|
|
Front Spacing |
|
|
Rear Spacing |
|
|
Rear Travel |
|
|
Recommended Sag |
|
|
Sealant |
|
|
Seat Clamp Diameter |
|
|
Seat Post Diameter |
|
|
Shock Bushing Size Front |
|
|
Shock Bushing Size Rear |
|
|
Shock Mounting Hardware Lower |
|
|
Shock Mounting Hardware Upper |
|
|
Shock Stroke |
|
|
Suspension System |
|
|
UDH Compatible |
|
|
Water Bottle Mounts |
Nomad X0 AXS RSV Coil
Sizing & Geometry
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 435/433 | 455/453 | 475/473 | 495/493 | 520/518 |
| Stack (Hi/Lo) | 624/626 | 633/635 | 643/645 | 660/662 | 669/671 |
| Head Tube Angle (Hi/Lo) | 63.6°/63.3° | 63.6°/63.3° | 63.6°/63.3° | 63.6°/63.3° | 63.6°/63.3° |
| Head Tube Length | 100 | 110 | 120 | 140 | 150 |
| Rear Center (Hi/Lo) | 438/439 | 441/442 | 444/445 | 447/448 | 451/452 |
| Front Center (Hi/Lo) | 781/780 | 805/805 | 830/830 | 858/858 | 888/888 |
| BB Height (Hi/Lo) | 346/342.5 | 346/342.5 | 346/342.5 | 346/342.5 | 346/342.5 |
| BB Drop Front (Hi/Lo) | 26.5/30 | 26.5/30 | 26.5/30 | 26.5/30 | 26.5/30 |
| BB Drop Rear (Hi/Lo) | 8/11.5 | 8/11.5 | 8/11.5 | 8/11.5 | 8/11.5 |
| Wheelbase (Hi/Lo) | 1219/1219 | 1246/1247 | 1276/1274 | 1305/1306 | 1339/1339 |
| Top Tube Length (Hi/Lo) | 569/569 | 587/586 | 604/605 | 627/628 | 651/652 |
| Seat Tube Length | 380 | 400 | 420 | 450 | 500 |
| Seat Tube Angle (Hi/Lo) | 78°/77.7° | 78.2°/78.1° | 78.6°/78.4° | 78.7°/78.5° | 78.9°/78.7° |
| Seat Tube Angle at Saddle Height (Hi/Lo) | 77.4/77.1 at 680 | 77.4/77.1 at 730 | 77.4/77.1 at 780 | 77.4/77.1 at 830 | 77.4/77.1 at 870 |
| Standover Height (Hi/Lo) | 711/707 | 719/715 | 722/718 | 726/722 | 732/728 |
Nomad X0 AXS RSV Coil
Setup & Support
Whether you’re the proud owner of a Nomad or are just digging deep into the details you’ll find it all here.
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|
| 130 | 60 | 54 | 9/8 | 8/6 |
| 140 | 64 | 59 | 9/8 | 8/6 |
| 150 | 68 | 63 | 8/7 | 8/6 |
| 160 | 73 | 68 | 8/7 | 8/6 |
| 170 | 77 | 72 | 8/7 | 8/6 |
| 180 | 82 | 77 | 7/6 | 6/4 |
| 190 | 86 | 82 | 7/6 | 6/4 |
| 200 | 91 | 86 | 7/6 | 6/4 |
| 210 | 95 | 91 | 6/5 | 6/4 |
| 220 | 100 | 95 | 6/5 | 6/4 |
| 230 | 104 | 100 | 5/4 | 6/4 |
| 240 | 109 | 104 | 4/3 | 6/4 |
| 250 | 113 | 109 | 3/2 | 6/4 |
| Rider Weight (lbs) | Rider Weight (kgs) | Pressure (psi) | Spring Rate | Sag | Rebound (L/H from closed) | Compression (L/H from closed) |
|---|---|---|---|---|---|---|
| 100 | 45 | 115 | 300 | 25-27%, 16-17.5mm | 16,7 | 12,6 |
| 120 | 54 | 140 | 350 | 25-27%, 16-17.5mm | 15,6 | 12,6 |
| 140 | 64 | 160 | 400 | 25-27%, 16-17.5mm | 14,6 | 12,6 |
| 160 | 73 | 180 | 450 | 25-27%, 16-17.5mm | 13,5 | 12,6 |
| 180 | 82 | 205 | 475 | 25-27%, 16-17.5mm | 12,5 | 10,4 |
| 200 | 91 | 225 | 500 | 25-27%, 16-17.5mm | 11,4 | 10,4 |
| 220 | 100 | 245 | 550 | 25-27%, 16-17.5mm | 11,3 | 10,4 |
| 240 | 109 | 270 | 600 | 25-27%, 16-17.5mm | 10,2 | 10,4 |
Nomad 7 Small Parts
Shop Spare Parts| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Head Tube Badge | Clean frame surface, center on headtube | 1 | 20-27756 | |
| B | Shuttle Guard | 1 | 30-29383 | ||
| C | Downtube Protector | 1 | 30-29384 | ||
| D | M5x16 Water Bottle screw | Apply grease to threads | 4 | 26-20124 | |
| E | M3x12 BHCS | Apply Loctite 242 to threads | 1 | 0.1 Nm | 26-15939 |
| F | Chainstay Protector | 1 | 30-27472 | ||
| G | 36.4 Seat Collar | 1 | 34-20201 |
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | M5x16 Water Bottle screw | Apply grease to threads | 2 | 26-20124 | |
| B | M8x45 Shock Bolt | Apply Loctite 242 to threads | 2 | 20 Nm | 26-22461 |
| C | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-22343 |
| D | M6 Tapered Washer | Apply grease to surface | 3 | 26-15633 | |
| E | M6 Washer | 3 | 26-11817 | ||
| F | M6x20 SHCS | Apply Loctite 242 to threads | 3 | 9 Nm | 26-15947 |
| G | M8x2 Flip Chip NDS | Apply grease to surface | 1 | 26-21452 | |
| H | Pivot axle M15x68.5 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-16291 |
| I | Pivot axle M15x80.5 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-16292 |
| J | M8x2 Flip Chip DS | Apply grease to surface | 1 | 26-21451 | |
| K | M10x23 Screw | Apply Loctite 242 to threads only, apply grease to shaft only | 2 | 16 Nm | 26-20122 |
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Rear axle 12x173.7 | Apply grease to shaft and threads | 1 | 08-22209 | |
| B | SCB UDH | Interchangeable with Sram UDH | 1 | 23-23491 | |
| C | SCB UDH screw | Reverse thread | 1 | 20 Nm | 26-23492 |
| D | Chainstay Protector | 1 | 30-27472 | ||
| E | M3x12 BHCS | Apply Loctite 242 to threads | 1 | 0.1 Nm | 26-15939 |
| F | M4x12 BHCS | Apply grease to treads | 2 | 0.65 Nm | 26-18382 |
| G | Lower Link Fender | 1 | 49-21567 | ||
| H | Seat Stay Protector | 1 | 30-30079 |
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Lower Link | 1 | 29-29426 | ||
| B | 6902-1ZR Bearing | 4 | 11-17708 | ||
| C | Bearing Dust Shield | Apply grease to inner surface | 4 | 26-11612 | |
| D | 15x28 Bearing spacer | 1 | 26-19126 | ||
| E | 15x40.25 Bearing Spacer | 1 | 26-17013 | ||
| F | M6 Grease Fitting | 1 | 9 Nm | 26-12678 | |
| G | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | 1 | 0.5 Nm | 26-15532 |
| Frame Size | Flip Chip | Setup Key | Setup Cog | 32T | 34T | 36T |
|---|---|---|---|---|---|---|
| S | HI | B | 7 | 116 | 118 | 118 |
| M | HI | B | 7 | 118 | 118 | 120 |
| L | HI | B | 7 | 118 | 118 | 120 |
| XL | HI | B | 7 | 118 | 120 | 120 |
| XXL | HI | B | 7 | 118 | 120 | 120 |
| S | LO | B | 7 | 116 | 118 | 118 |
| M | LO | B | 7 | 118 | 118 | 120 |
| L | LO | B | 7 | 118 | 118 | 120 |
| XL | LO | B | 7 | 118 | 120 | 120 |
| XXL | LO | B | 7 | 118 | 120 | 120 |
Nomad X0 AXS RSV Coil
Get access to the exclusive SCB Owners Club which gives you access to added levels of rider support, treats, opportunities and benefits. Join the club today for free! It takes just five minutes to receive a lifetime of membership perks.
Learn MoreWe build Santa Cruz bicycles to be durable and long lasting, and then back them up with legendary support and a warranty of the highest standard.
Santa Cruz Bicycles offers free replacement pivot bearings to the original owner for as long as they own their bike.
Zip it into the bag, chuck it in the van, or toss it over the tailgate—when you get to the trails, you’ll be happy you’re on a Nomad. The refined suspension offers efficient climbing, less reactivity under braking, and improves traction everywhere in between. In short, you’ll be more comfortable, more composed, and more confident no matter what the trail throws your way.
Standout Features
Explore the highlights...

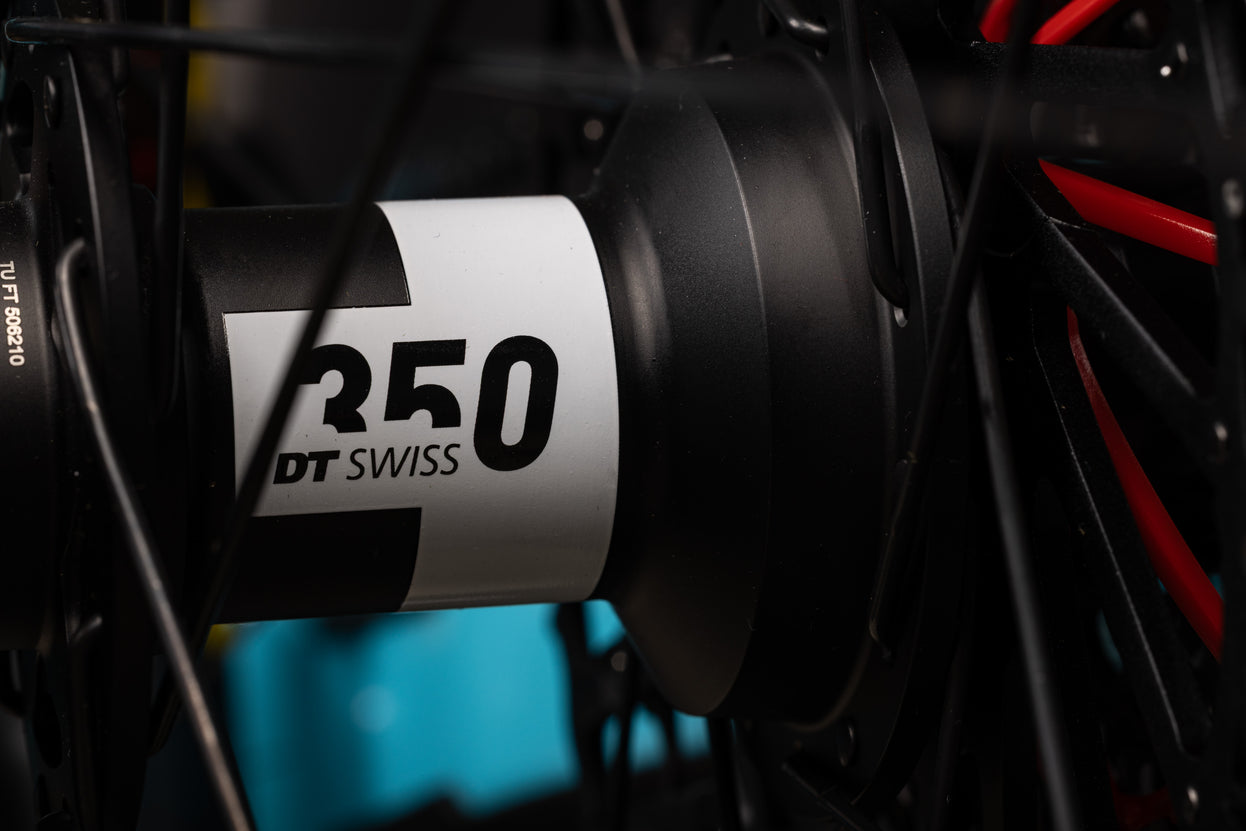

DT SWISS DF Anti-Pedal Kickback Hub

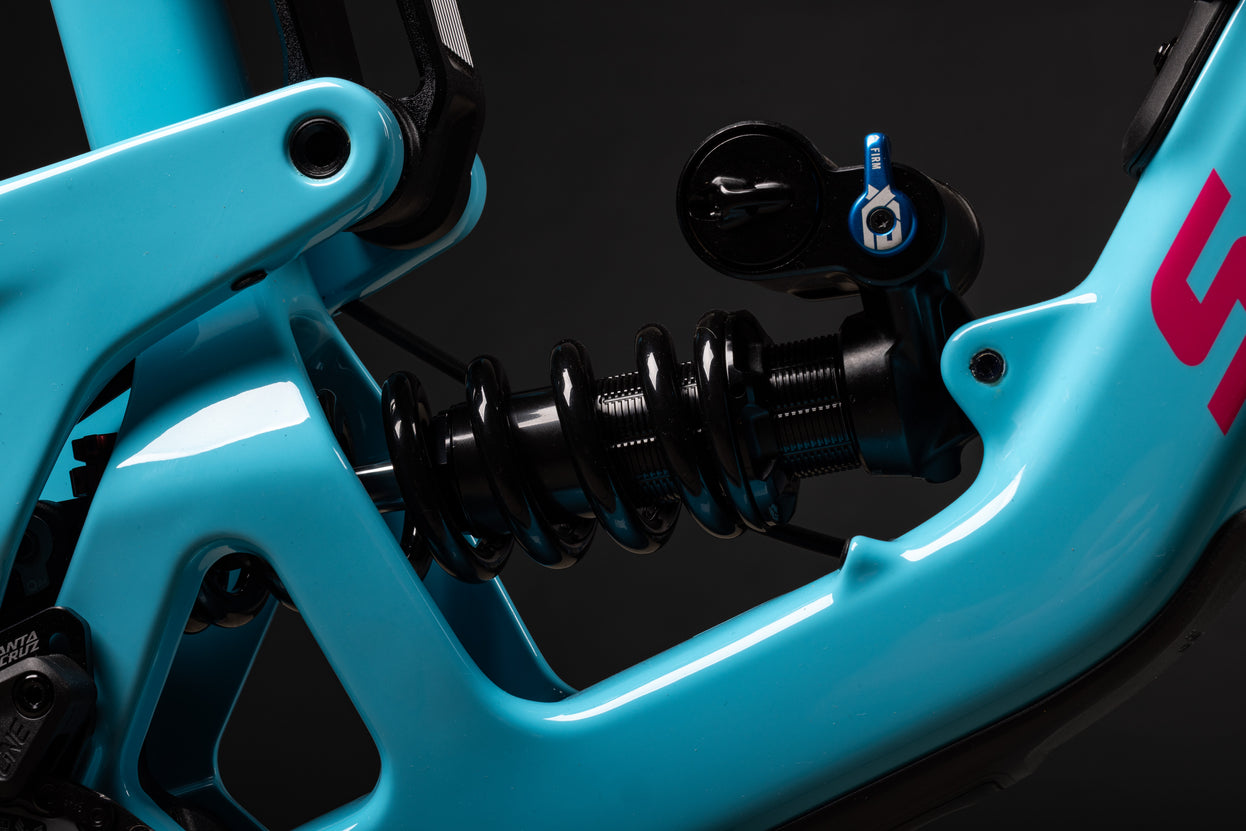

Fox DHX2 Coil Shock

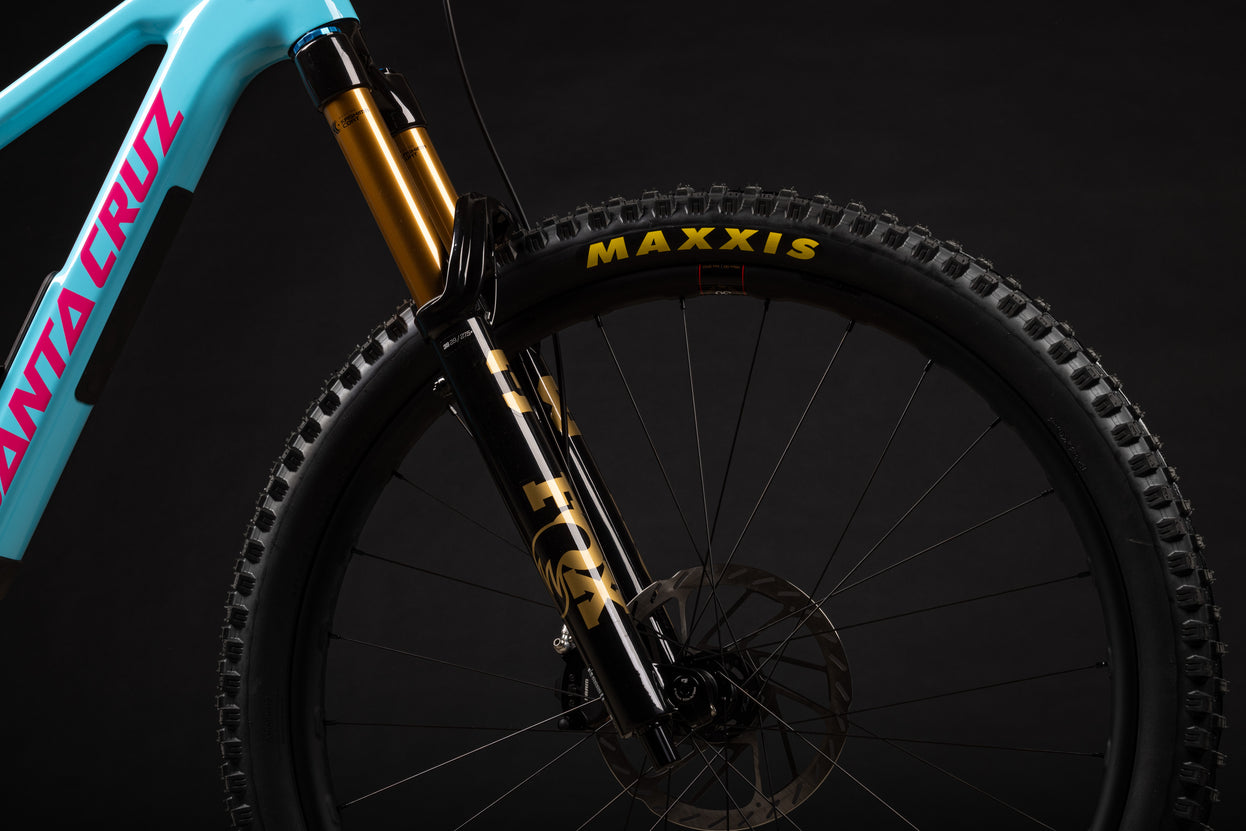

Fox 38 Float Factory Grip X2 Fork
SRAM Maven Silver + 200mm Rotors

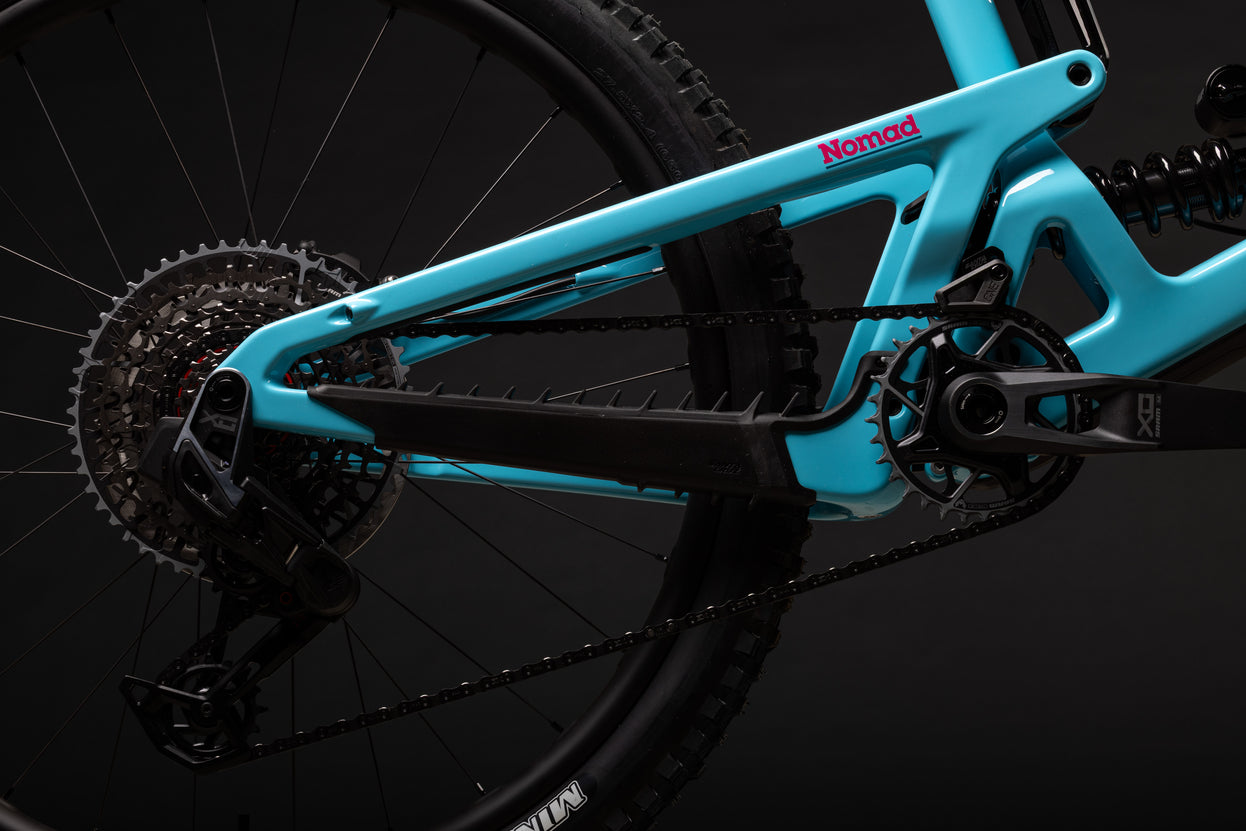

SRAM X0 Eagle AXS T-Type drivetrain
