Bullit 4 MY26

Model Specs

Max Tire Clearance 2.5
Rear Travel 170
Shock Length 205
Shock Stroke 65
Fork Offset 44
Rear Spacing 148
UDH Compatible YES
Front Derailleur Mount NO
Headset IS
Bottom Bracket Shell EMTB
Max Chainring Size 36
Rear Brake Mount 200 PM
Max Rotor Size 220

Build Kits

Select a Build Kit

Frame Carbon C MX 170mm Travel, 4-Bar
Material Carbon C
Wheel Size MX
Weight 49.56 lbs / 22.48 kg
Shock FOX Float X Performance, 205x65
Fork RockShox Zeb Base, 170mm
Rear Derailleur SRAM 70 Eagle T-Type, 12spd
Right Shifter SRAM 90 Eagle T-Type, Single Click, 12spd
Cassette SRAM XS1270 Eagle T-Type, 10-52
Chain SRAM 70 Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Headset FSA IS-2/47/42 ACB
Rear Tire Maxxis Minion DHRII 27.5x2.5, 3C MaxxTerra, DoubleDown
Front Tire Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Front Hub SRAM MTH 716, 15x110, 6-Bolt, 32h
Front Rim Reserve 30|HD AL
Rear Hub SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rear Rim Reserve 30|HD AL
Front Rotor SRAM Centerline 220mm
Rear Rotor SRAM Centerline 200mm
Brakes SRAM DB8
Crankset E13 Helix eSpec, 155mm
Handlebars Burgtec Aluminum Bar, 35mm Rise, 800mm
Stem OneUp Stem, 42mm
Saddle SDG Bel-Air V3, Max
Seatpost SDG Tellis Dropper, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips
Battery Bosch PowerTube Battery 600Wh
Drive Unit Bosch Performance Line CX
Frame Carbon C MX 170mm Travel, 4-Bar
Material Carbon C
Wheel Size MX
Weight 49.42 lbs / 22.42 kg
Shock FOX Float X Performance, 205x65
Fork FOX 38 Float Performance, Grip, 170mm
Rear Derailleur SRAM 90 Eagle T-Type, 12spd
Right Shifter SRAM 90 Eagle T-Type, Single Click, 12spd
Cassette SRAM XS 1275 Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Headset FSA IS-2/47/42 ACB
Rear Tire Maxxis Minion DHRII 27.5x2.5, 3C MaxxTerra, DoubleDown
Front Tire Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Front Hub E13 SL, 15x110, 6-Bolt, 32h
Front Rim Reserve 30|HD AL
Rear Hub E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Rear Rim Reserve 30|HD AL
Front Rotor SRAM HS2 200mm
Rear Rotor SRAM HS2 200mm
Brakes SRAM Maven Base
Crankset E13 Helix eSpec, 155mm
Handlebars OneUp Aluminum Bar, 35mm Rise, 800mm
Stem OneUp Stem, 42mm
Saddle SDG Bel-Air V3, Max Lux-Alloy
Seatpost OneUp Dropper Post, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips
Battery Bosch PowerTube Battery 600Wh
Drive Unit Bosch Performance Line CX
Frame Carbon C MX 170mm Travel, 4-Bar
Material Carbon C
Wheel Size MX
Weight 49.4 lbs / 22.41 kg
Shock FOX Float X Performance Elite, 205x65
Fork Fox 38 Float Performance Elite, Grip X2, 170mm
Rear Derailleur SRAM GX Eagle AXS T-Type, 12spd
Right Shifter SRAM AXS Pod Bridge
Cassette SRAM XS 1275 Eagle T-Type, 10-52t
Chain SRAM GX Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Headset Cane Creek 50 IS Integrated Headset
Rear Tire Maxxis Minion DHRII 27.5x2.5, 3C MaxxTerra, DoubleDown
Front Tire Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Front Hub E13 SL, 15x110, 6-Bolt, 32h
Front Rim Reserve 30|HD AL 6069
Rear Hub E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
Rear Rim Reserve 30|HD AL 6069
Front Rotor SRAM HS2 200mm
Rear Rotor SRAM HS2 200mm
Brakes SRAM Maven Bronze
Crankset SRAM GX Eagle Cranks, 155mm
Handlebars OneUp Aluminum Bar, 35mm Rise, 800mm
Stem OneUp Stem, 42mm
Saddle SDG Bel-Air V3 Max Lux-Alloy Atmos
Seatpost OneUp Dropper Post, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips
Battery Bosch PowerTube Battery 600Wh
Drive Unit Bosch Performance Line CX

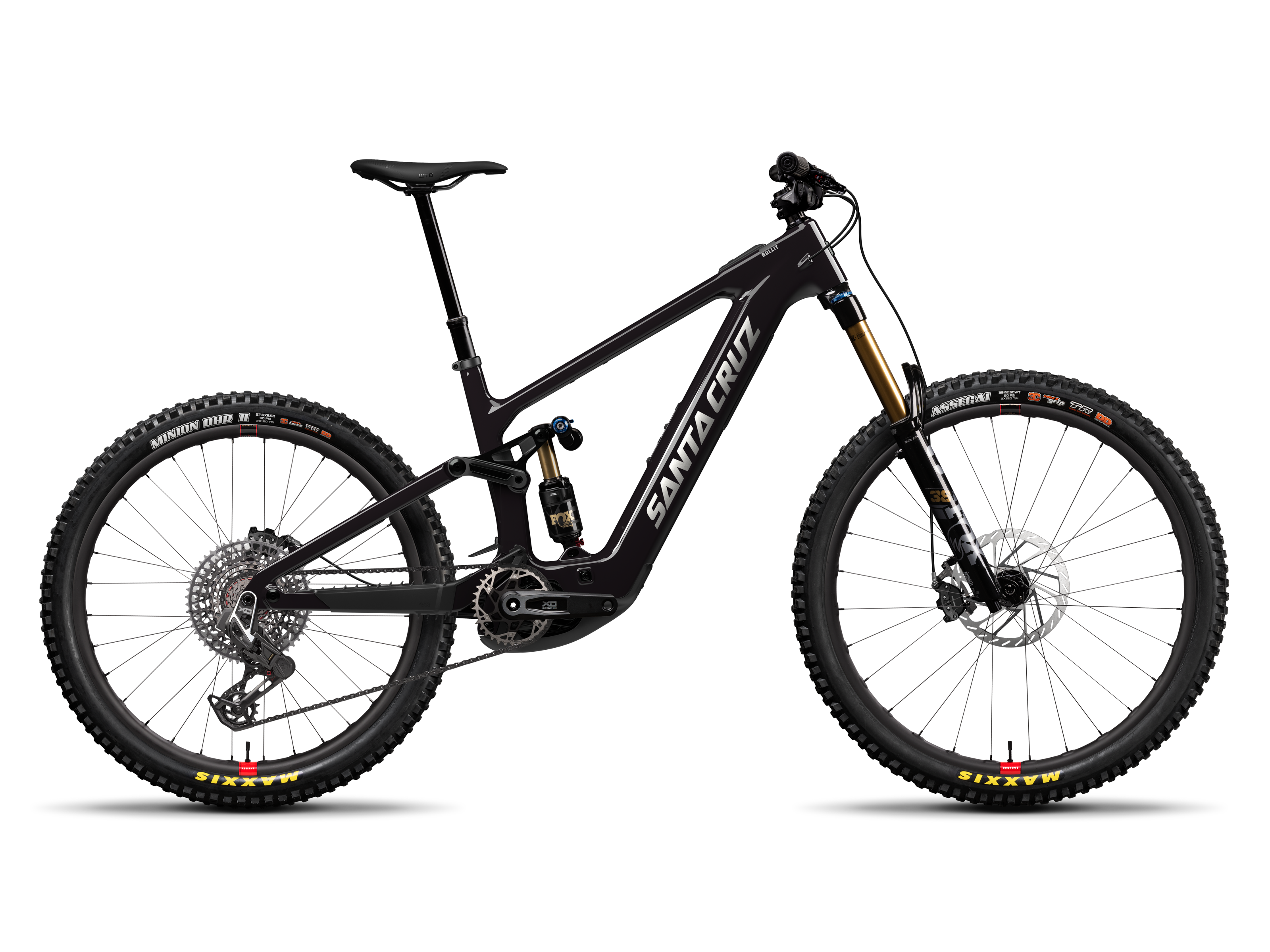

Frame Carbon CC MX 170mm Travel, 4-Bar
Material Carbon CC
Wheel Size MX
Weight 48.4 lbs / 21.95 kg
Shock FOX Float X2 Factory, 205x65
Fork Fox 38 Float Factory, Grip X2, 170mm
Rear Derailleur SRAM X0 Eagle AXS T-Type, 12spd
Right Shifter SRAM AXS Pod Controller Rocker Paddle
Cassette SRAM X0 Eagle T-Type, 10-52t
Chain SRAM X0 Eagle T-Type, Flattop, 12spd
Chainguide OneUp Chainguide
Headset Cane Creek 50 IS Integrated Headset
Rear Tire Maxxis Minion DHRII 27.5x2.5, 3C MaxxTerra, DoubleDown
Front Tire Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Front Hub DT Swiss 350, 15x110, 6-Bolt, 28h
Front Rim Reserve 30|HD
Rear Hub DT Swiss 350 DEG, 12x148x XD, 6-Bolt, 72t, 32h
Rear Rim Reserve 30|DH
Front Rotor SRAM HS2 200mm
Rear Rotor SRAM HS2 200mm
Brakes SRAM Maven Silver
Crankset SRAM X0 Eagle Cranks, 155mm
Handlebars Santa Cruz 35 Carbon Bar, 800mm
Stem OneUp Stem, 42mm
Saddle WTB Silverado Medium Fusion, CroMo SL
Seatpost OneUp Dropper Post, 31.6
Grips / Bar Tape Santa Cruz Bicycles House Grips
Battery Bosch PowerTube Battery 600Wh
Drive Unit Bosch Performance Line CX

Geometry

All units are in millimeters or degrees.
s m l xl xxl
Reach (Hi/Lo) 435/432 460/457 480/477 500/497 525/522
Stack (Hi/Lo) 622/625 631/635 640/643 654/656 670/674
Head Tube Angle (Hi/Lo) 63.6/63.3 63.6/63.3 63.6/63.3 63.6/63.3 63.6/63.3
Head Tube Length 100 110 120 135 155
Rear Center 440 443 446 449 452
Front Center 780 809 834 860 894
BB Height (Hi/Lo) 346/342 346/342 346/342 346/342 346/342
BB Drop Front (Hi/Lo) 27/31 27/31 27/31 27/31 27/31
BB Drop Rear (Hi/Lo) 9/13 9/13 9/13 9/13 9/13
Wheelbase 1220 1252 1280 1309 1346
Top Tube Length 571 596 617 640 670
Seat Tube Length 380 400 420 460 500
Seat Tube Angle (Hi/Lo) 78.6/78.3 78.7/78.4 78.7/78.4 78.7/78.4 78.6/78.3
Standover Height (Hi/Lo) 745/740 739/735 738/733 738/733 735/730

Size Guide

Small
154cm 5'1" - 165cm 5'5" Reach: 435mm
Medium
165cm 5'5" - 175cm 5'9" Reach: 460mm
Large
175cm 5'9" - 185cm 6'1" Reach: 480mm
X-Large
185cm 6'1" - 193cm 6'4" Reach: 500mm
XX-Large
193cm 6'4" - 200cm 6'7" Reach: 525mm

Transmission Setup

Frame Size Flip Chip Setup Key Setup Cog 32T 34T 36T
S High A 7 116 116 118
M High B 7 116 118 118
L High A 7 116 118 118
XL High A 7 118 118 120
XXL High A 7 118 118 120
S Low A 7 116 118 118
M Low A 7 116 118 118
L Low A 7 118 118 120
XL Low A 7 118 118 120
XXL Low A 7 118 118 120

Exploded Diagrams

Motor, Display, Downtube Protector, Shuttle Guard, and Seat Collar
label name quantity part_number blurb torque
A Head Tube Badge 1 20-27756 Clean frame surface, center on headtube
B M5x10 BHCS 4 26-27915 Apply Loctite 242 to threads 9 Nm
C Shuttle guard 1 30-27825 Line up with battery screws
D Bosch DU Performance CX 1 72-25239 Bosch part number EB11.100.00E
E M4x16 BHCS 3 26-23102 Apply grease to threads 0.65 Nm
F DU Protector 1 30-27495
G M6x10 BHCS 2 26-21224 Apply loctite 242 to threads 3 Nm
H Bosch DU mount nut 2 26-27862 Bosch part number EB11.200.03C
I M8x7 Flip Chip 1 26-27480 Apply grease to outside surface
J 36.4 Seat Collar 1 34-20201
K M4x26 Bosch Screw 1 26-28150
L Bosch TT System Controller 1 72-25240 Bosch part number EB13.100.000
M Bosch TT adapter 1 26-27857 Bosch part number EB13.200.0AE
Santa Cruz Bullit Exploded Diagram
Linkage Hardware
label name quantity torque part_number blurb
A M5x5 Set Screw 2 0.5 Nm 26-15532 Apply Loctite 242 to threads, titghten until flush
B Water Bottle Screw 2 26-21360
C Pivot Axle M15x91 1 20 Nm 08-22343 Apply Loctite 242 to threads only, apply grease to shaft only
D M6 Tapered Washer 2 26-15633 Apply grease to surface
E M6 Washer 2 26-11817
F M6x20 SHCS 2 9 Nm 26-15947 Apply Loctite 242 to threads
G M8x7 Flip Chip 1 26-27480 Apply grease to outside surface
H M8x45 Lowhead SHCS 1 15.6 Nm 26-20091 Apply Loctite 242 to threads
I Bosch charge socket holder 1 26-27867 Bosch part number EB12.120.01A
J Bosch MCx14 Screw 2 26-27869 Bosch part number F04N.002.663
K Bosch COB O-ring 1 26-27868 Bosch part number EB12.120.019
L Bosch charge socket 1 72-25237 Bosch part number EB12.120.048
M Bosch charger port cover 1 26-27866 Bosch part number EB12.120.01B
N Bosch DU Insert Sleeve 1 26-29334 Bosch part number EB11.200.0GK
O Bosch DU mount bolt front 1 30 Nm 26-27864 Bosch part number EB11.200.12M
P Bosch DU mount bolt rear 1 30 Nm 26-27865 Bosch part number EB11.200.12H
Q Pivot axle M15x80.5 1 20 Nm 08-16292 Apply Loctite 242 to threads only, apply grease to shaft only
R M4x8 BHCS 2 0.65 Nm 26-21249 Apply grease to threads
S Fender 1 30-27475
T M10x10 trunnion screw 2 16 Nm 26-27481 Apply Loctite 242 to threads only, apply grease to shaft only
U 6900-2RS Bearing 2 11-12681
V M10x3 Washer 2 26-15533 Apply grease to inner surface
W M10x20 bolt 2 16 Nm 26-27484 Apply Loctite 242 to threads
X 6902-2RS Max Bearing 2 11-12218
Y Washer 2 26-27483 Apply grease to inner surface
Z M10x2.6 Flip Chip 2 26-27482 Apply grease to outside surface
Santa Cruz Bullit Exploded Diagram
Rear Axle, Rear Triangle Hardware, Chainguide, and Chainstay Protector
label name quantity part_number blurb torque
A Rear axle 12x173.7 1 08-22209 Apply grease to shaft and threads
B SCB UDH 1 23-23491 Interchangeable with Sram UDH
C SCB UDH screw 1 26-23492 Reverse thread 20 Nm
D M10x26 Bolt 2 26-27487 Apply Loctite 242 to threads only, apply grease to shaft only 16 Nm
E Dust Shield 4 26-27488 Apply grease to inner surface
F 6802-2RS Bearing 4 11-27485
G Bearing spacer 2 26-27489 Apply grease to shaft
H M10x6 Nut 2 26-27486 Apply grease to inner surface
I Chanistay protector 1 30-27476
J M3x12 BHCS 1 26-15939 Apply Loctite 242 to threads 0.1 Nm
K M4x10 FHCS 2 26-22938 Apply Loctite 242 to threads 0.65 Nm
L OneUp chainguide 1 19-22609
M OneUp chainguide back plate 1 26-27839
N Cable Loop Guide 1 30-27838
O M3x6 2 26-22358 Apply Loctite 242 to threads 0.6 Nm
P M5x12 HHS 1 26-22570 Apply Loctite 242 to threads 2 Nm
Q Seatstay Protector 1 30-21453
Santa Cruz Bullit Exploded Diagram
Battery
label name quantity part_number torque blurb
A Battery mount rear PT600 1 26-27493
B M4x10 SHCS 8 26-28053 1.2 Nm Apply Loctite 242 to threads
C Bosch H-Connector 1 26-27870
D Bosch battery PT600 1 78-25241 Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ)
E Battery mount front PT600 1 26-27494
Santa Cruz Bullit Exploded Diagram
Front Triangle Hardware
label name quantity part_number blurb
A Bearing Dust Shield 4 26-11612 Apply grease to inner surface
B 6902-2RS Max Bearing 4 11-12218
C 15x48 Bearing spacer 1 26-17707
D 15x40.25 Bearing Spacer 1 26-17013
E Cable loop FT NDS 1 26-25329
F M3x12 BHCS 1 26-15939 Apply Loctite 242 to threads
Santa Cruz Bullit Exploded Diagram

Files

If you're looking for more information about your bike check our the Santa Cruz Bicycles Owner's Manual.
