Vala XT Di2 Lite RSV
Ausstattungen & Spezifikationen
*Bitte beachte: Wir sind um die Richtigkeit der der Angaben bemüht, behalten uns jedoch Änderungen vor.
| Rahmen | |
|---|---|
|
Material |
|
|
Eigenschaften |
|
|
Rahmen |
|
|
Federweg |
|
|
Gewicht |
|
|
Laufradgröße |
|
| Federung | |
|
Gabel |
|
|
Dämpfer |
|
|
Lenker-Hebel |
|
| Antrieb | |
|
Tretlager |
|
|
Kassette |
|
|
Kette |
|
|
Kettenführung |
|
|
Kurbellänge |
|
|
Kurbelgarnitur |
|
|
Umwerfer vorne |
|
|
Left Shifter |
|
|
Schaltwerk |
|
|
Schalthebel |
|
|
Schalthebel |
|
| Bremsen | |
|
Bremsen |
|
|
Bremsen vorne |
|
|
Bremsscheibe vorne |
|
|
Bremsen hinten |
|
|
Bremsscheibe hinten |
|
|
Bremsscheiben |
|
| Cockpit | |
|
Lenkerbreite |
|
|
Sattelstützenlänge |
|
|
Griffe |
|
|
Lenker |
|
|
Steuersatz |
|
|
Sattel |
|
|
Sattelstütze |
|
|
Vorbau |
|
|
Vorbaulänge |
|
| Laufräder | |
|
Felge vorne |
|
|
Nabe vorne |
|
|
Vorderreifen |
|
|
Felge hinten |
|
|
Nabe hinten |
|
|
Hinterreifen |
|
|
Ventile |
|
|
Felgen |
|
| E-Bike | |
|
Akku |
|
|
Motor |
|
|
Ladegerät |
|
|
Range Extender |
|
| Ausstattung | |
|
Innenlager-Schale |
|
|
Hintere Bremsaufnahme |
|
|
Chainguide Standard |
|
|
Kettenlinie |
|
|
Schaltauge |
|
|
Downtube Storage |
|
|
Dämpfer-Einbauänge |
|
|
Gabel-Einbauhöhe |
|
|
Gabel-Kompatibilität |
|
|
Gabel-Offset |
|
|
Umwerfer-Aufnahme vorne |
|
|
Steuersatz |
|
|
Maximale Kettenblattgröße |
|
|
Max. Bremsscheibengröße |
|
|
Maximale Reifenfreiheit May vary according to tire and rim model |
|
|
Einbaubreite vorne |
|
|
Einbaubreite hinten |
|
|
Federweg hinten |
|
|
Empfohlener Sag |
|
|
Dichtmilch |
|
|
Sattelklemmung |
|
|
Sattelstützen-Durchmesser |
|
|
Dämpfer-Einbaumaß vorne |
|
|
Dämpfer-Einbaumaß hinten |
|
|
Dämpfer-Einbaumaß unten |
|
|
Dämpfer-Einbaumaß oben |
|
|
Dämpferhub |
|
|
Federungssystem |
|
|
UDH kompatibel |
|
|
Flaschenhalteraufnahmen |
Vala XT Di2 Lite RSV
Größe & Geometrie
Finde Deine Größe
Wenn Du zwischen zwei Rahmengrößen liegst, empfehlen wir, dass Du beide Optionen testest. Als Anhaltspunkt kannst Du die Reach- und Stack-Werte mit Deinem aktuellen Bike oder anderen bekannten Bikes vergleichen, auf denen Du Dich wohl fühlst. Wenn keine Testfahrt möglich ist, kannst Du Dich auch an den folgenden Tipps orientieren:
Mit einem größeren Rahmen hast Du mehr Stabilität und Souveränität. Außerdem erhältst du mehr Bewegungsfreiheit im Rad, bei weniger Einfluss auf die Balance. Beim größeren Rahmen hast Du einen etwas längeren Radstand, was zusätzlich Sicherheit und Stabilität bringt. Daher bedarf es mehr Körpereinsatz und eine etwas aktivere Fahrweise, um das Bike zu führen. Kleinere Bikes fahren sich agiler und reagieren schneller auf den Input des Fahrers. Überlege Dir, was besser zu Deinem Fahrstil passt. Soll das Bike agil und aktiv sein? Oder eher spurtreu und souverän. Willst Du mehr oder weniger Einsatz zeigen, um das Bike auf dem Trail zu bewegen?
Auch bei gleicher Körpergröße sieht jeder Mensch anders aus. Wenn Du einen verhältnismäßig kurzen Oberkörper und lange Beine hast, würden wir zur kleineren Rahmengröße raten. Bei langem Oberkörper und langen Armen, solltest Du eher zum größeren Rahmen greifen.
S
M
L
XL
XXL (nur Carbon)
154cm
5'1"
-
165cm
5'5"
Reach: 435mm
165cm
5'5"
-
175cm
5'9"
Reach: 460mm
175cm
5'9"
-
185cm
6'1"
Reach: 480mm
182cm
6'0"
-
193cm
6'4"
Reach: 500mm
193cm
6'4"
-
200cm
6'7"
Reach: 525mm
Flip Chip
Alle Einheiten in Millimeter oder Grad
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 435 | 460 | 480 | 500 | 525 |
| Stack | 623 | 632 | 641 | 655 | 668 |
| Head tube angle | 64.2° | 64.2° | 64.2° | 64.2° | 64.2° |
| Steuerrohrlänge | 110 | 120 | 130 | 145 | 160 |
| Hinterbaulänge | 439 | 440 | 443 | 446 | 450 |
| Front Center | 771 | 800 | 825 | 851 | 883 |
| Tretlagerhöhe | 344 | 344 | 344 | 344 | 344 |
| BB Drop Front | 28 | 28 | 28 | 28 | 28 |
| BB Drop Rear | 11 | 11 | 11 | 11 | 11 |
| Radstand | 1210 | 1240 | 1268 | 1297 | 1333 |
| Oberrohrlänge | 573 | 601 | 622 | 645 | 673 |
| Sitzrohrlänge | 380 | 400 | 420 | 460 | 500 |
| Sitzwinkel | 77.5° | 77.5° | 77.5° | 77.5° | 77.5° |
| Überstandshöhe | 741 | 735 | 734 | 734 | 728 |
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach | 432 | 456 | 477 | 497 | 522 |
| Stack | 625 | 635 | 643 | 657 | 670 |
| Head tube angle | 63.9° | 63.9° | 63.9° | 63.9° | 63.9° |
| Steuerrohrlänge | 110 | 120 | 130 | 145 | 160 |
| Hinterbaulänge | 439 | 440 | 443 | 446 | 450 |
| Front Center | 771 | 800 | 825 | 851 | 883 |
| Tretlagerhöhe | 340 | 340 | 340 | 340 | 340 |
| BB Drop Front | 32 | 32 | 32 | 32 | 32 |
| BB Drop Rear | 15 | 15 | 15 | 15 | 15 |
| Radstand | 1210 | 1240 | 1268 | 1297 | 1333 |
| Oberrohrlänge | 573 | 601 | 622 | 645 | 673 |
| Sitzrohrlänge | 380 | 400 | 420 | 460 | 500 |
| Sitzwinkel | 77.2° | 77.2° | 77.2° | 77.2° | 77.2° |
| Überstandshöhe | 741 | 735 | 734 | 734 | 728 |
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 433 | 458 | 478 | 498 |
| Stack | 625 | 634 | 643 | 656 |
| Head tube angle | 64.1° | 64.1° | 64.1° | 64.1° |
| Steuerrohrlänge | 110 | 120 | 130 | 145 |
| Hinterbaulänge | 440 | 440 | 445 | 445 |
| Front Center | 771 | 800 | 825 | 851 |
| Tretlagerhöhe | 342 | 342 | 342 | 342 |
| BB Drop Front | 30 | 30 | 30 | 30 |
| BB Drop Rear | 13 | 13 | 13 | 13 |
| Radstand | 1211 | 1241 | 1270 | 1297 |
| Oberrohrlänge | 578 | 606 | 628 | 652 |
| Sitzrohrlänge | 380 | 400 | 420 | 460 |
| Sitzwinkel | 76.9° | 76.9° | 76.8° | 76.8° |
| Überstandshöhe | 744 | 745 | 729 | 732 |
Vala XT Di2 Lite RSV
Setup & Support
Egal, ob Du stolzer Besitzer eines Vala bist oder Dich einfach nur für alle Details interessierst - hier wirst Du fündig.
Fox 36 Factory 160 29
| Fahrergewicht (lbs) | Fahrergewicht (kg) | Luftdruck (psi) | Rebound (L/H - Klicks von geschlossen) | Compression (L/H - Klicks von geschlossen) |
|---|---|---|---|---|
| 100 | 45 | 61 | 12/8 | 8/5 |
| 120 | 54 | 71 | 11/8 | 8/5 |
| 140 | 64 | 81 | 10/8 | 8/5 |
| 160 | 73 | 90 | 9/8 | 8/5 |
| 180 | 82 | 99 | 8/7 | 6/4 |
| 200 | 91 | 109 | 7/6 | 6/4 |
| 220 | 100 | 115 | 5/4 | 6/4 |
| 240 | 109 | 120 | 3/2 | 6/4 |
Fox Float X Factory 205x60
| Fahrergewicht (lbs) | Fahrergewicht (kg) | Luftdruck (psi) | Sag | Rebound (Klicks von geschlossen) | Compression (Klicks von geschlossen) |
|---|---|---|---|---|---|
| 100 | 45 | 125 | 30%, 18mm | 8 | 5 |
| 120 | 54 | 145 | 30%, 18mm | 7 | 5 |
| 140 | 64 | 165 | 30%, 18mm | 7 | 5 |
| 160 | 73 | 180 | 30%, 18mm | 6 | 5 |
| 180 | 82 | 200 | 30%, 18mm | 5 | 5 |
| 200 | 91 | 220 | 30%, 18mm | 4 | 5 |
| 220 | 100 | 240 | 30%, 18mm | 4 | 5 |
| 240 | 109 | 255 | 30%, 18mm | 3 | 5 |
| 260 | 118 | 275 | 30%, 18mm | 3 | 5 |
Vala 1 C Small Parts
Kleinteile finden
Carbon - Pivot Bearings
Laden
Carbon - Controller, Motor, Downtube Protector, and Shuttle Guard
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Head Tube Badge | Clean frame surface, center on headtube | 1 | 20-27756 | |
| B | M5x10 BHCS | Apply Loctite 242 to threads | 4 | 9 Nm | 26-27915 |
| C | Shuttle guard | Line up with battery screws | 1 | 30-27825 | |
| D | Bosch DU Performance CX | Bosch part number EB11.100.00E | 1 | 72-25239 | |
| E | M4x16 BHCS | Apply grease to threads | 3 | 0.65 Nm | 26-23102 |
| F | DU protector | Use 30-27495 for size S & M | 1 | 30-27496 | |
| G | M6x10 BHCS | Apply loctite to threads | 2 | 3 Nm | 26-21224 |
| H | Bosch DU mount nut | Bosch part number EB11.200.03C | 2 | 26-27862 | |
| I | M8x7 Flip Chip | Apply grease to outside surface | 1 | 26-27479 | |
| J | 36.4 Seat Collar | 1 | 34-20201 | ||
| K | M4x26 Bosch Screw | 1 | 26-28150 | ||
| L | Bosch TT System Controller | Bosch part number EB13.100.000 | 1 | 72-25240 | |
| M | Bosch TT adapter | Bosch part number EB13.200.0AE | 1 | 26-27857 |
Laden
Carbon - Linkage Hardware
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | 2 | 0.5 Nm | 26-15532 |
| B | M5x16 Water Bottle screw | Apply grease to threads | 4 | 26-20124 | |
| C | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-22343 |
| D | M6 Tapered Washer | Apply grease to surface | 2 | 26-15633 | |
| E | M6 Washer | 2 | 26-11817 | ||
| F | M6x20 SHCS | Apply Loctite 242 to threads | 2 | 9 Nm | 26-15947 |
| G | M8x7 Flip Chip | Apply grease to outside surface | 1 | 26-27480 | |
| H | M8x45 Lowhead SHCS | Apply Loctite 242 to threads | 1 | 15.6 Nm | 26-20091 |
| I | Bosch charge socket holder | Bosch part number EB12.120.01A | 1 | 26-27867 | |
| J | Bosch MCx14 Screw | Bosch part number F04N.002.663 | 2 | 26-27869 | |
| K | Bosch COB O-ring | Bosch part number EB12.120.019 | 1 | 26-27868 | |
| L | Bosch charge socket | Bosch part number EB12.120.048 | 1 | 72-25237 | |
| M | Bosch charger port cover | Bosch part number EB12.120.01B | 1 | 26-27866 | |
| N | Bosch DU mount insert sleeve | Bosch part number EB11.200.0GK | 2 | 26-29334 | |
| O | Bosch DU mount bolt front | Bosch part number EB11.200.12M | 1 | 30 Nm | 26-27864 |
| P | Bosch DU mount bolt rear | Bosch part number EB11.200.12H | 1 | 30 Nm | 26-27865 |
| Q | Pivot axle M15x80.5 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-16292 |
| R | M4x12 BHCS | Apply grease to treads | 2 | 0.65 Nm | 26-18382 |
| S | Fender | 1 | 30-27475 | ||
| T | M10x10 trunnion screw | Apply Loctite 242 to threads only, apply grease to shaft only | 2 | 16 Nm | 26-27481 |
| U | 6900-2RS Bearing | 2 | 11-12681 | ||
| V | M10x3 Washer | Apply grease to inner surface | 2 | 26-15533 | |
| W | M10x20 bolt | Apply Loctite 242 to threads | 2 | 16 Nm | 26-27484 |
| X | 6902-2RS Max Bearing | 2 | 11-12218 | ||
| Y | Washer | Apply grease to inner surface | 2 | 26-27483 | |
| Z | M10x2.6 Flip Chip | Apply grease to outside surface | 2 | 26-27482 | |
| AA | Cable loop FT NDS | 1 | 26-25329 | ||
| BB | M3x12 BHCS | Apply Loctite 242 to threads | 1 | 0.1 Nm | 26-15939 |
Laden
Carbon - Rear Triangle Hardware, Chainguide, and Chainstay Protector
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Rear axle 12x173.7 | Apply grease to shaft and threads | 1 | 08-22209 | |
| B | SCB UDH | Interchangeable with Sram UDH | 1 | 23-23491 | |
| C | SCB UDH screw | Reverse thread | 1 | 20 Nm | 26-23492 |
| D | M10x26 Bolt | Apply Loctite 242 to threads only, apply grease to shaft only | 16 Nm | 26-27487 | |
| E | Dust Shield | Apply grease to inner surface | 2 | 26-27488 | |
| F | 6802-2RS Bearing | 11-27485 | |||
| G | Bearing spacer | Apply grease to shaft | 2 | 26-27489 | |
| H | M10x6 Nut | Apply grease to inner surface | 2 | 26-27486 | |
| I | Chanistay protector | 30-27476 | |||
| J | M3x12 BHCS | Apply Loctite 242 to threads | 0.1 Nm | 26-15939 | |
| K | M4x10 FHCS | Apply Loctite 242 to threads | 0.65 Nm | 26-22938 | |
| L | OneUp chainguide | 19-22609 | |||
| M | OneUp chainguide back plate | 26-27839 | |||
| N | Cable Loop Guide | 30-27838 | |||
| O | M3x6 | Apply Loctite 242 to threads | 0.6 Nm | 26-22358 | |
| P | M5x12 HHS | Apply Loctite 242 to threads | 2 Nm | 26-22570 | |
| Q | Seatstay Protector | 30-21453 |
Laden
Carbon - Battery
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Battery mount rear PT600 | 1 | 26-27493 | ||
| B | M4x10 SHCS | Apply Loctite 242 to threads | 4 | 1.2 Nm | 26-28053 |
| C | Bosch H-Connector | 1 | 26-27870 | ||
| D | Bosch battery PT600 | Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ) | 1 | 78-25241 | |
| E | Battery mount front PT600 | 1 | 26-27494 | ||
| F | Battery mount rear PT600 | 1 | 26-27912 |
Laden
Aluminum - Motor, Shuttle Guard, and Remote
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | M5x10 BHCS | Apply Loctite 242 to threads | 4 | 9 Nm | 26-27915 |
| B | Shuttle guard | Line up with battery screws | 1 | 30-27825 | |
| C | Bosch DU Performance CX | Bosch part number EB11.100.00E | 1 | 72-25239 | |
| D | DU Protector | 1 | 30-28663 | ||
| E | M4x16 BHCS | Apply grease to threads | 4 | 0.65 Nm | 26-23102 |
| F | M6x10 BHCS | Apply loctite 242 to threads | 2 | 3 Nm | 26-21224 |
| G | Bosch DU mount nut | Bosch part number EB11.200.03C | 2 | 26-27862 | |
| H | M5x16 Water Bottle screw | Apply grease to threads | 2 | 26-20124 | |
| I | 36.4 Seat Collar | 1 | 34-20201 | ||
| J | Bosch TT System Controller | Bosch part number EB13.100.000 | 1 | 72-25240 | |
| K | M4x12 BHCS | Apply grease to treads | 1 | 0.65 Nm | 26-18382 |
Laden
Aluminum - Motor Mounting Hardware
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Water Bottle Screw | 2 | 26-21360 | ||
| B | M4x12 BHCS | Apply grease to treads | 2 | 0.65 Nm | 26-18382 |
| C | M5x5 Set Screw | Apply Loctite 242 to threads, titghten until flush | 2 | 0.5 Nm | 26-15532 |
| D | PowerMore wire clip | Use with Bosch range extender | 1 | 30-28124 | |
| E | M8x45 Lowhead SHCS | Apply Loctite 242 to threads | 1 | 22 Nm | 26-20091 |
| F | Bosch charge socket holder | Bosch part number EB12.120.01A | 1 | 26-27867 | |
| G | Bosch COB O-ring | Bosch part number EB12.120.019 | 1 | 26-27868 | |
| H | Bosch charge socket | Bosch part number EB12.120.048 | 1 | 72-25237 | |
| I | Bosch MCx14 Screw | Bosch part number F04N.002.663 | 2 | 26-27869 | |
| J | Bosch charger port cover | Bosch part number EB12.120.01B | 1 | 26-27866 | |
| K | Bosch DU screw wide V2 | Bosch part number EB11.200.15J | 1 | 30 Nm | 26-29606 |
| L | Bosch insert socket long V2 | Bosch part number EB11.200.15H | 1 | 26-29605 | |
| M | Cable loop FT NDS | 1 | 26-25329 | ||
| N | M3x8 BHCS | Apply Loctite 242 to threads | 1 | 0.5 Nm | 26-23284 |
| O | Bosch insert socket short V2 | Bosch part number EB11.200.12F | 1 | 26-29607 | |
| P | Bosch DU screw V2 | Bosch part number EB11.200.12G | 1 | 30 Nm | 26-29608 |
| Q | Fender | 1 | 30-27475 | ||
| R | M4x12 BHCS | Apply grease to treads | 2 | 0.65 Nm | 26-18382 |
Laden
Aluminum - Linkage Hardware
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-22343 |
| B | M6 Tapered Washer | Apply grease to surface | 1 | 26-15633 | |
| C | M6 Washer | 1 | 26-11817 | ||
| D | M6x20 SHCS | Apply Loctite 242 to threads | 1 | 9 Nm | 26-15947 |
| E | M10x3 Washer | Apply grease to inner surface | 2 | 26-15533 | |
| F | 6900-2RS Bearing | 2 | 11-12681 | ||
| G | M10x10 trunnion screw | Apply Loctite 242 to threads only, apply grease to shaft only | 2 | 16 Nm | 26-27481 |
| H | SSE Reducer | Apply grease to inner surface | 2 | 26-28683 | |
| I | 6902-2RS Max Bearing | 2 | 11-12218 | ||
| J | M10x20 bolt | Apply Loctite 242 to threads | 2 | 16 Nm | 26-27484 |
Laden
Aluminum - Rear Triangle Hardware
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | Rear axle 12x173.7 | Apply grease to shaft and threads | 1 | 08-22209 | |
| B | SCB UDH | Interchangeable with Sram UDH | 1 | 23-23491 | |
| C | SCB UDH screw | Reverse thread | 1 | 20 Nm | 26-23492 |
| D | M10x26 Bolt | Apply Loctite 242 to threads only, apply grease to shaft only | 2 | 16 Nm | 26-27487 |
| E | Dust Shield | Apply grease to inner surface | 4 | 26-27488 | |
| F | 6802-2RS Bearing | 4 | 11-27485 | ||
| G | Bearing spacer | Apply grease to shaft | 2 | 26-27489 | |
| H | Chainstay Protector | 1 | 30-28664 | ||
| I | M3x8 BHCS | Apply Loctite 242 to threads | 1 | 0.5 Nm | 26-23284 |
| J | Cable Loop Guide | 1 | 30-27838 | ||
| K | OneUp chainguide back plate | 1 | 26-27839 | ||
| L | M4x10 FHCS | Apply Loctite 242 to threads | 2 | 0.65 Nm | 26-22938 |
| M | OneUp chainguide | 1 | 19-22609 | ||
| N | M5x12 HHS | Apply Loctite 242 to threads | 1 | 2 Nm | 26-22570 |
| O | M3x6 | Apply Loctite 242 to threads | 2 | 0.6 Nm | 26-22358 |
| P | Seatstay Protector | 1 | 30-21453 | ||
| Q | Hose Grommet | 1 | 26-19207 |
Laden
Aluminum - Front Triangle Hardware
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | 6902-2RS Max Bearing | 4 | 11-12218 | ||
| B | Bearing Dust Shield | Apply grease to inner surface | 4 | 26-11612 | |
| C | 15x48 Bearing spacer | 1 | 26-17707 | ||
| D | Pivot Axle M15x91 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-22343 |
| E | 15x40.25 Bearing Spacer | 1 | 26-17013 | ||
| F | Pivot axle M15x80.5 | Apply Loctite 242 to threads only, apply grease to shaft only | 1 | 20 Nm | 08-16292 |
| G | M6 Tapered Washer | Apply grease to surface | 2 | 26-15633 | |
| H | M6 Washer | 2 | 26-11817 | ||
| I | M6x20 SHCS | Apply Loctite 242 to threads | 2 | 9 Nm | 26-15947 |
Laden
Aluminum - Battery
| Label | Name | Blurb | Quantity | Torque | Part Number |
|---|---|---|---|---|---|
| A | M4x10 SHCS | Apply Loctite 242 to threads | 8 | 1.2 Nm | 26-28053 |
| B | Battery mount front PT600 | 1 | 26-27494 | ||
| C | Bosch battery PT600 | Bosch part number EB12.100.04X (US/CA), EB12.100.04V (EU, OZ) | 1 | 78-25241 | |
| D | Cable Tray | 1 | 30-28682 | ||
| E | Bosch H-Connector | 1 | 26-27870 | ||
| F | Battery mount rear PT600 | 1 | 26-27912 | ||
| G | Battery Mount Rear PT600 Type 2 | 1 | 26-28681 |
Laden
| Frame Size | Flip Chip | Setup Key | Setup Cog | 32T | 34T | 36T |
|---|---|---|---|---|---|---|
| S - Carbon | High | A | 7 | 116 | 118 | 118 |
| M - Carbon | High | B | 7 | 118 | 118 | 120 |
| L - Carbon | High | A | 7 | 118 | 120 | 120 |
| XL - Carbon | High | A | 7 | 118 | 120 | 120 |
| XXL - Carbon | High | A | 7 | 118 | 120 | 120 |
| S - Carbon | Low | A | 7 | 116 | 118 | 118 |
| M - Carbon | Low | A | 7 | 116 | 118 | 118 |
| L - Carbon | Low | A | 7 | 118 | 120 | 120 |
| XL - Carbon | Low | A | 7 | 118 | 120 | 120 |
| XXL - Carbon | Low | A | 7 | 118 | 120 | 120 |
| S - AL | None | B | 7 | 118 | 118 | 120 |
| M - AL | None | B | 7 | 118 | 118 | 120 |
| L - AL | None | B | 7 | 118 | 118 | 120 |
| XL - AL | None | B | 7 | 118 | 118 | 120 |
Wenn Du mehr Informationen zu Deinem Bike suchst, findest Du sie im Santa Cruz Bicycles-Benutzerhandbuch.
Vala XT Di2 Lite RSV
€10.999,00
EUR
Originalpreis
Werde Mitglied im exklusiven Santa Cruz Owners Club und erhalte zusätzlichen Rider Support, exklusive Angebote, Informationen und weitere Vorteile. Melde Dich & Dein Bike noch heute kosten los an.
Mehr InfosWir bauen alle Santa Cruz Bikes robust und langlebig und unterstützen Dich bei Bedarf mit unserem legendären Rider-Support und einem umfassenden Garantie-Versprechen.
Santa Cruz Bicycles bietet dem Erstbesitzer kostenlose Hinterbaulager, solange er das Bike besitzt.
Material
CC
Federweg vorne (mm)
160
Federweg hinten (mm)
150
Laufradgröße
MX
46.00
20.87
Gewicht (lbs)
46.00
Gewicht (kg)
20.87
The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.
Technische Highlights
Entdecke die trailbändigende Technik, die das Vala so besonders machen.
01
Shimano XT Di2 Drivetrain
02

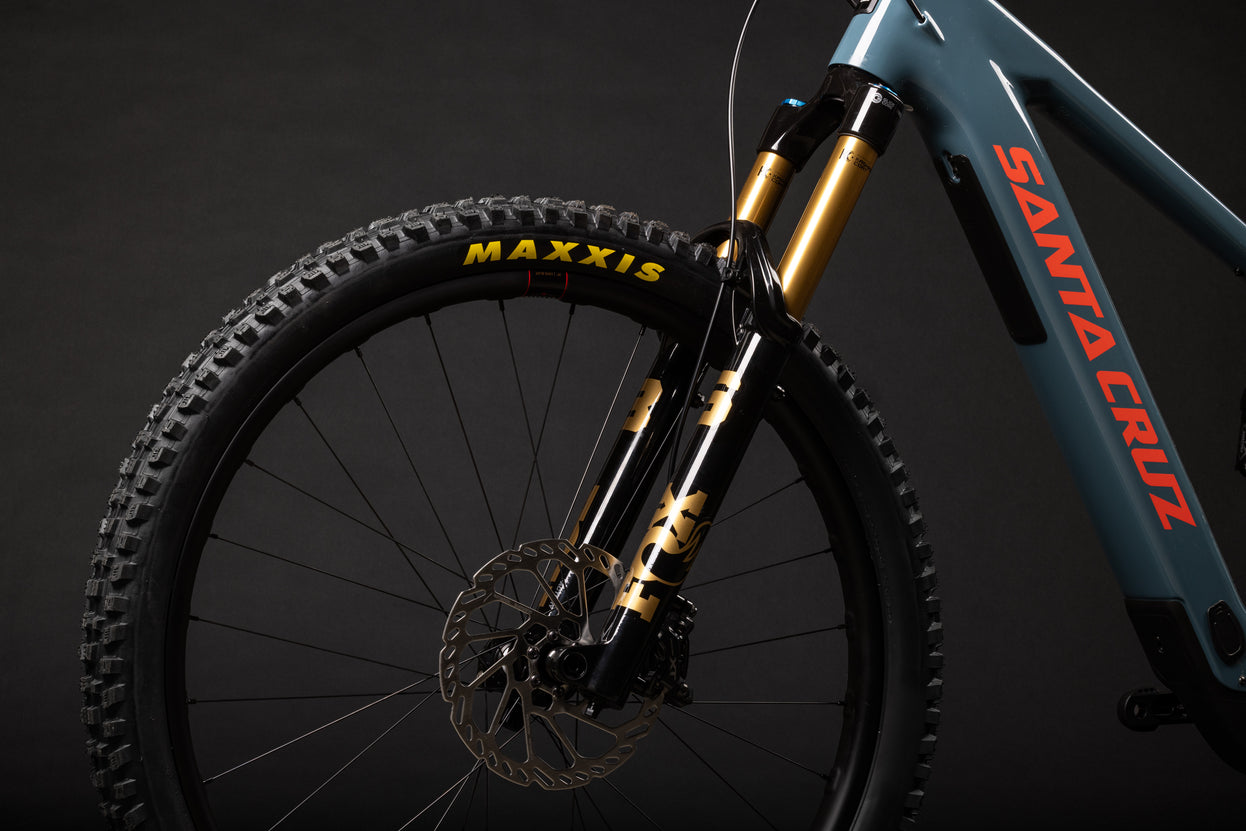

Fox 36 Float Factory Grip X2 Fork
03
DT Swiss 350 DF Anti-Pedal Kickback Hub
04
Reserve HD30 Carbon Rims + Maxxis Tires
05
Shimano XT Brakes + 200mm Rotors
Alle Details
Ausstattung, Geometrie, Größe und technischer Support für Vala XT Di2 Lite RSV
Ausstattungen& Spezifikationen
Geometrie& Größe
Setup& Support
Andere Ausstattungsvarianten
Vala XX AXS Lite RSV
Full-Power E-Bike mit leichter Ausstattung: SRAM XX AXS Transmission, Fox 36 Federgabel und Reserve 30|HD Carbon-Laufräder.
€12.999
