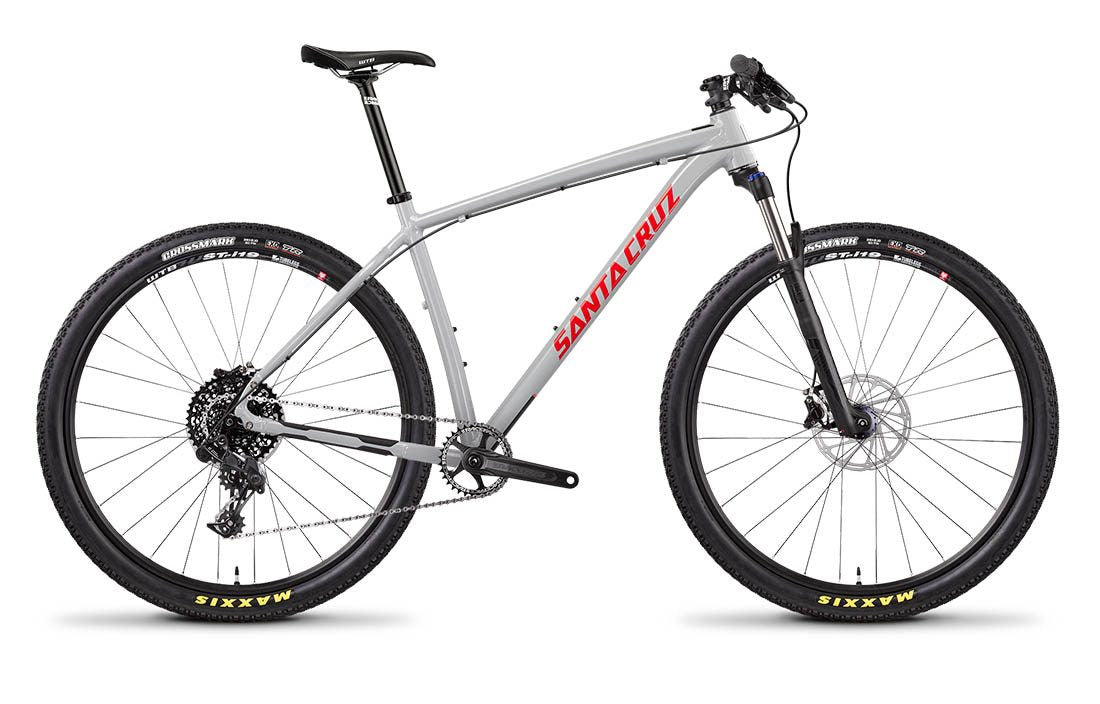

Highball 2 AL
2015 - 2017
| Model Version | 2 AL |
|---|---|
| Production Start | 2015 |
| Production End | 2017 |
| Suspension/Pivot System | N/A (Hardtail) |
| Material | Aluminum - 6000 series |
Rahmen-Spezifikationen
| Headtube/Headset | Tapered - 44mm zero stack/internal upper cup, with an external 49mm lower cup. The SHIS name is ZS44/28.6 EC49/40. |
|---|---|
| Seat Post | 27.2mm - Minimum insertion 100mm |
| Front Derailleur | 34.9mm Bottom Swing/Top Pull (high clamp) |
| BB Shell Width | 73mm - Threaded - ISO |
| Recommended Max Tire Size | 2.35 - may vary by tire and rim model |
| Brakes | Disc Brake - ISO |
| Max Brake Rotor Size | 180mm |
| Rear Hub | 142mm x 12mm Through-Axle |
| Seatpost Clamp | 30.9mm |
| Component Notes | Max chainring: 36t is recommended (a 38t ring will fit but it's very tight). Any double chainring drivetrain will fit. |
Dateien
Wenn Du mehr Informationen zu Deinem Bike suchst, findest Du sie im Santa Cruz Bicycles-Benutzerhandbuch.
